GXA 035 V2 shut-off brushless electric fixtured spindle

Code P104972

GXA 035 V2 shut-off brushless electric fixtured spindle

Code P104972

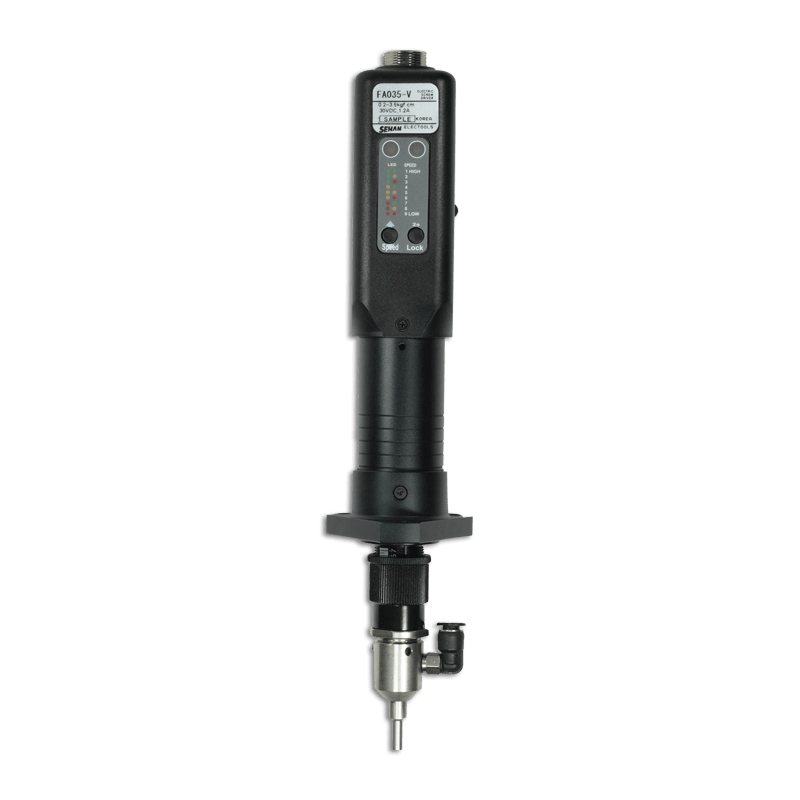

The GXA 035 V2 electric shut-off straight screwdriver allows you to perform your low-torque automated assemblies with precision. It is equipped with either a lever or push start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric fixtured spindle
Min Torque
0.03 Nm lbf.in
Max Torque
0.35 Nm lbf.in
Min speed rotation
300 tr/min rpm
Maxi speed rotation
1100 tr/min rpm
Drive Size
4mm Half-moon
Weight
0.45 kg lbs
Shape
Fixtured spindle
Starting system
Remote
Power
Electric
Suitable controller
XS-40D

Benefits

Productivity
  • Digital speed adjustment
  • Extended features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Soft shut-off mechanical clutch
  • LED indicator on the screwdriver for signaling and adjustment
Comfort
  • Easy integration by fixing with a mounting flange
  • Start and reversible remote controls
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXA 035 V2 straight spindle is the solution for your low-torque automated assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station thanks to a mounting flange, it can be started remotely and you can choose the direction of rotation by your automation.
It sends the motor rotation and torque information needed for your sequencing.
