GXA 150P-H shut-off brushless electric fixtured spindle

Code P109082

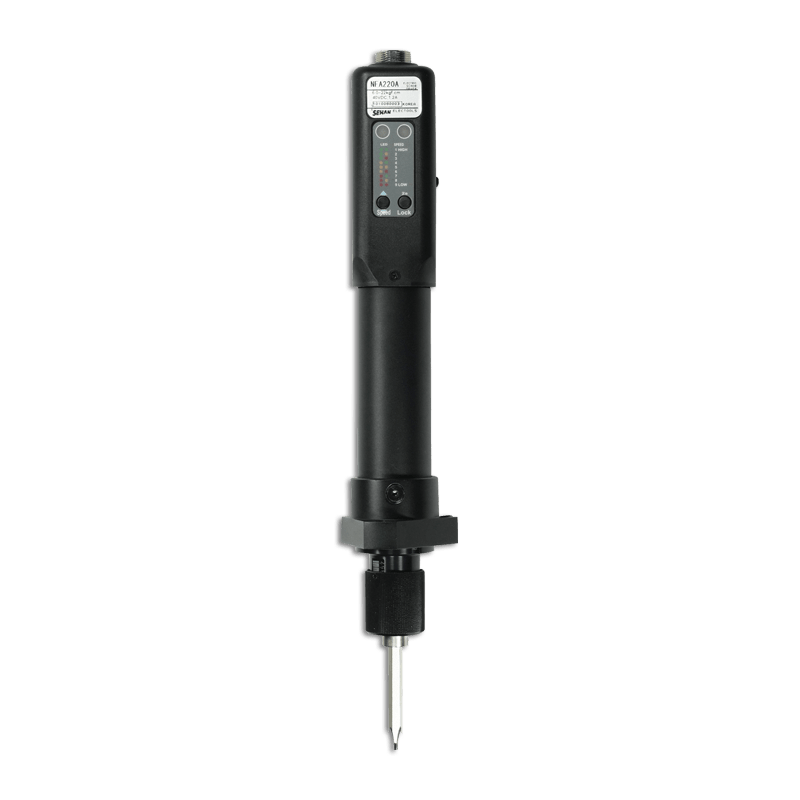

GXA 150P-H shut-off brushless electric fixtured spindle

Code P109082

The GXA 150P-H electric shut-off straight tightening spindle allows you to perform your automated assemblies with precision. It is equipped with a push start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric fixtured spindle
Min Torque
0.3 Nm lbf.in
Max Torque
1.47 Nm lbf.in
Min speed rotation
800 tr/min rpm
Maxi speed rotation
1700 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.54 kg lbs
Shape
Fixtured spindle
Starting system
Push to start
Power
Electric
Suitable controller
XS-40D

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXA 150P-H straight spindle is the solution for your automated assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station thanks to a mounting flange, it can be started remotely by your automation and you can choose the direction of rotation.
It sends the motor rotation and torque information needed for your sequencing.
