GYA 100-G shut-off brushless electric fixtured spindle

Code P100489

GYA 100-G shut-off brushless electric fixtured spindle

Code P100489

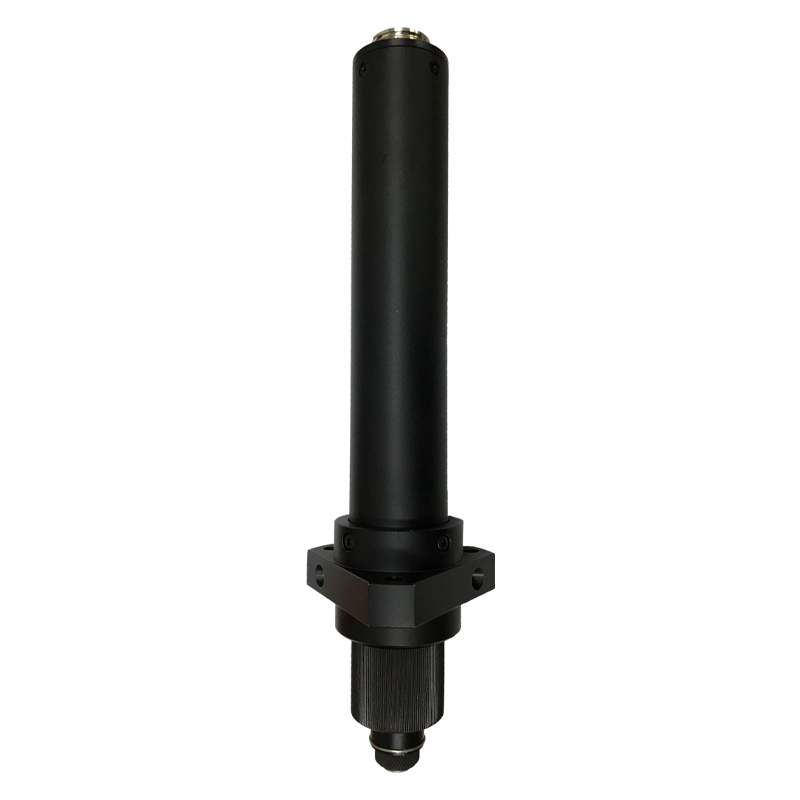

The GYA100-G straight spindle is ideal for automated tightening operations.
Combined with the XT-35D controller, this brushless shut-off spindle improves the quality of your assemblies while reducing your costs. It is controlled by external inputs / outputs.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Type of screwdriver

Shut-off brushless electric fixtured spindle

Min Torque

3.9 Nm lbf.in

Max Torque

9.8 Nm lbf.in

Min speed rotation

250 tr/min rpm

Maxi speed rotation

500 tr/min rpm

Drive Size

1/4" F/Hex

Weight

0.95 kg lbs

Starting system

Remote

Power

Electric

Suitable controller

XT35D

Benefits

Productivity

Multi-sequence functionality: tighten / hold / loosen
High quality, precise and impact-free mechanical clutch
Designed for high speeds
Torque or angle trigger

Quality

Brushless Maxxon motor (maintenance free) made in Switzerland
Input / output signals for Poka Yoke control
Defects signaling by LED indicator on the screwdriver

Comfort

Ergonomic grip
Excellent weight / ergonomics ratio
Silent motor <70 dBA

Product description

Equipped with a maintenance-free brushless motor, the GY spindle is the solution for your automated, high-speed applications.
This mechanical clutch spindle has advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your assembly station, it can be controlled clockwise or counter-clockwise remotely and sends the motor rotation and torque information required for counting screws.
