HDA 220A hybrid torque control electric fixtured spindle

Code 4-1042225

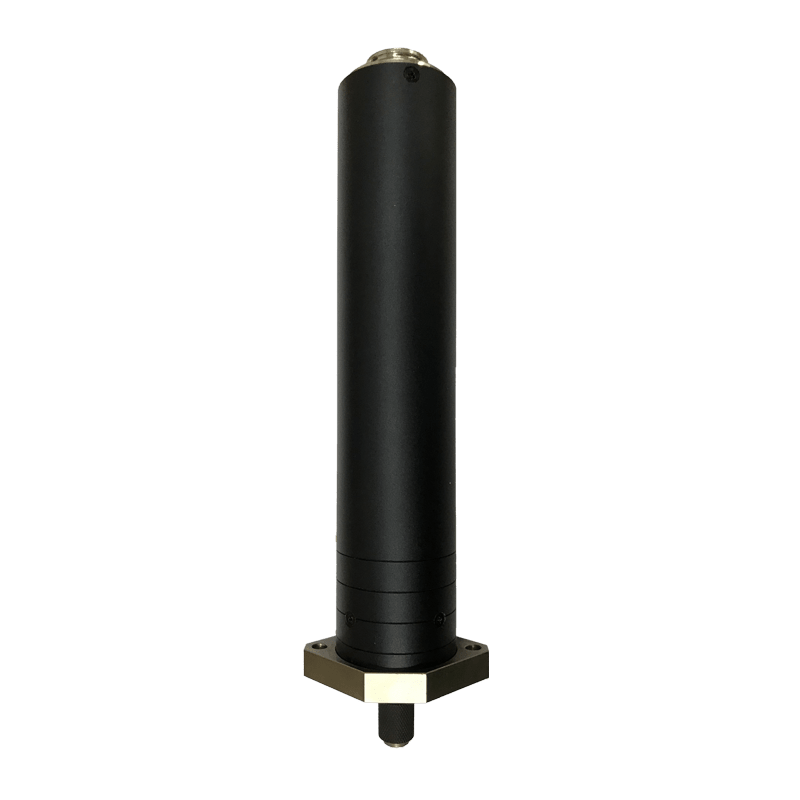

HDA 220A hybrid torque control electric fixtured spindle

Code 4-1042225

The HDA220A spindle is designed for easy integration into automated workstations. Combined with the HDC controller, this Hybrid spindle is multi-torque and makes it possible to sequence strategies. It guarantees high repeatability and high tightening precision. Tightening is controlled by input / output.

Contact us

Technical details

Type of screwdriver
Hybrid torque control electric fixtured spindle
Min Torque
0.7 Nm lbf.in
Max Torque
2.2 Nm lbf.in
Min speed rotation
400 tr/min rpm
Maxi speed rotation
1250 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.44 kg lbs
Shape
Fixtured spindle
Starting system
Remote
Power
Electric
Functionalities
ESD,
Torque programmable,
Counting
Suitable controller
HDC-40i

Benefits

Productivity
  • Multi-torque (8 tightening programs)
  • Program sequencing
  • Mechanical clutch adjusted by air pressure
  • High tightening precision
Quality
  • Brushless Maxxon motor (maintenance free) made in Switzerland
  • Poka Yoke counting
  • Display of tightening results
Comfort
  • Integration facilitated by the design of the spindle body
  • Excellent weight / ergonomics ratio
  • Silent motor <70 dBA

Product description

This spindle’s design is unique.
Equipped with a high quality Brushless motor manufactured in Switzerland (Maxxon) and a pneumatically controlled torque limiter, the Hybrid spindle can execute up to 8 tightening programs and perform sequences of different torques on a single piece with counting function.
This technology allows you to multiply tightening strategies while reducing the number of tools at your workstation.
Configurable on the front panel via its HDC 40i controller or its Hi-Manager software, the tool is easy and quick to set up.

Associated products

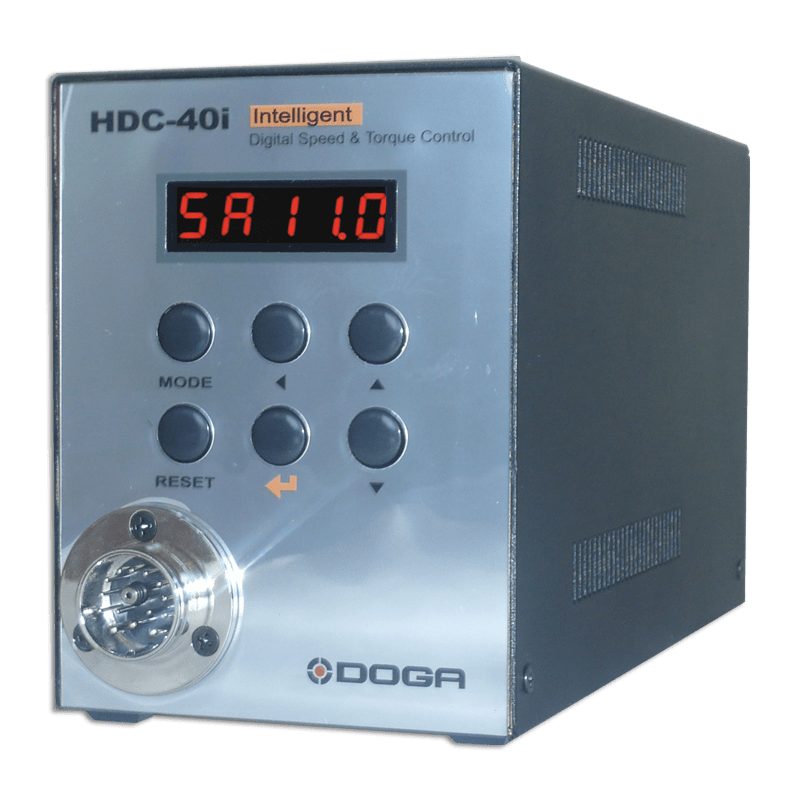

HDC controller

This controller can be programmed by software or directly on the front panel. It drives Hybrid multi-torque screwdrivers and is power and air operated.

See product details
