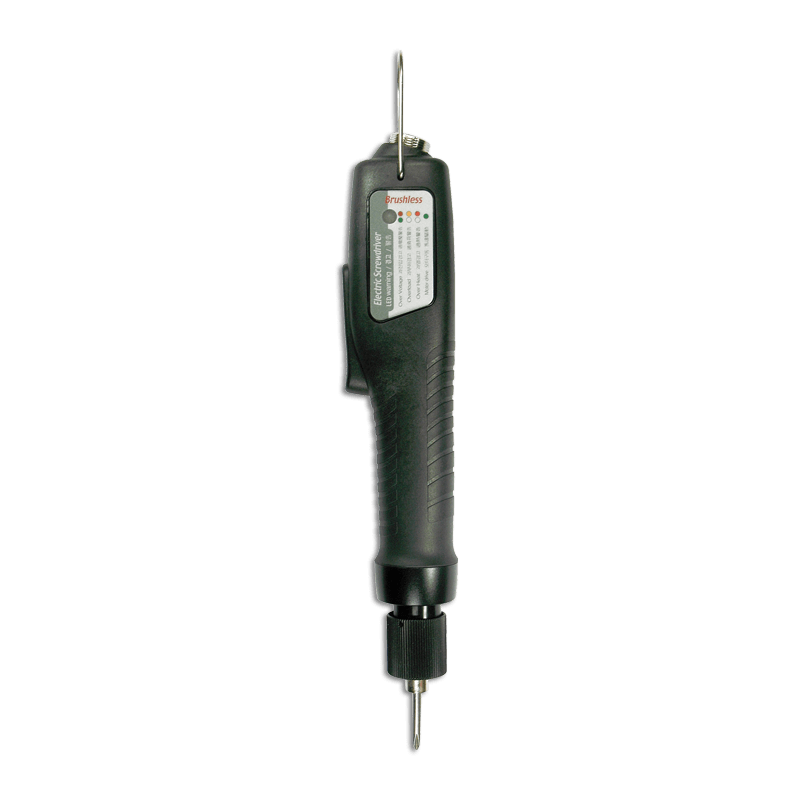

GX 120 ESD V2 shut-off brushless electric screwdriver

Code P100010

GX 120 ESD V2 shut-off brushless electric screwdriver

Code P100010

The GX 120 ESD V2 electric shut-off straight screwdriver allows you to perform your low-torque assemblies with precision. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.2 Nm lbf.in
Max Torque
1.2 Nm lbf.in
Min speed rotation
300 tr/min rpm
Maxi speed rotation
700 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.43 kg lbs
Starting system
Lever
Power
Electric
Functionalities
ESD
Suitable controller
XS40D (FA)

Benefits

Productivity
  • Digital speed adjustment
  • Extended features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Soft shut-off mechanical clutch
  • LED indicator on the screwdriver for signaling and adjustment
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GX 120 ESD V2 lever-start straight screwdriver is the solution for high-speed, low-torque assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).

Associated products

Resources

1Commercial documentation

Electric screwdrivers - DOC.60207

DC controlled screwdrivers HD series
GX series
GY series
GX FS... series
GX...BT series
Accessories
DO series
GA series
Controllers
Scout Poka Yoke

Download the file in pdf

4Software

XT35D _V1.04.0_170914

XT-35D controller firmware upgrade

Download the file in zip

Flash loader Demonstrator v2.2.0 upgrade

PC software for XT-35Dcontroller firmware upgrade

Driver USB - CP210x USB to UART Bridge VCP Drivers
https://www.silabs.com/products/development-tools/software/usb-to-uart-…

Download the file in zip

GY Serie XT-35D firmware upgrade manual (EN) - MU.60318

XT-35D firmware upgrade

Download the file in pdf

2Technical documentation

DOGA brushless electric screwdrivers GX 30 volts instructions manual - MU.60007

Scheme
Optional products
Description
Main features
Model composition
Models
Panel of each model
Alarm display by LED color
Exploded view
Parts list for GX Series

Download the file in pdf
60339

Part list & exploded view - Brushless electric tools GX30V serie - DOC.60339

1. GX35, 45
2. GXA 35, 45
3. GX 80, 120
4. GXS/GXT 80, 120
5. GXA 80, 120
6. Firmware

Download the file in pdf

XS-40D XS-40D FA controller instructions manual - MU.60127

General safety rules
Specific safety rules
Electric specification
Mechanical specification
Selectable INPUT VOLTAGE
Pin configuration of output
Selectable OUTPUT voltage
Over current protection, over heat protection and reset
Connections
Interface with XS-40D controller
Interface with XS-40D FA controller

Download the file in pdf
