GX 150 ESD-H shut-off brushless electric screwdriver

Code P100098

GX 150 ESD-H shut-off brushless electric screwdriver

Code P100098

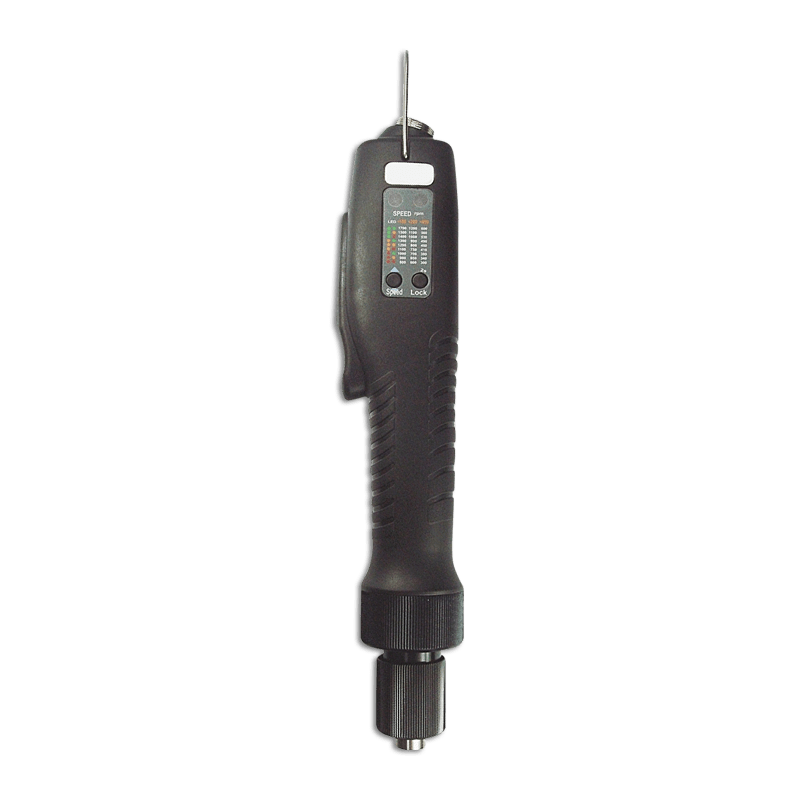

The GX GX 150 ESD-H electric shut-off straight screwdriver allows you to perform your vertical assemblies with precision. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.3 Nm lbf.in
Max Torque
1.47 Nm lbf.in
Min speed rotation
800 tr/min rpm
Maxi speed rotation
1700 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.6 kg lbs
Starting system
Lever
Power
Electric
Functionalities
ESD
Suitable controller
XS40D (FA)

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GX 150 ESD-H lever-start straight screwdriver is the solution for your high-speed, low-torque assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
