GX 50 BT ESD-G shut-off brushless electric screwdriver

Code P101024

GX 50 BT ESD-G shut-off brushless electric screwdriver

Code P101024

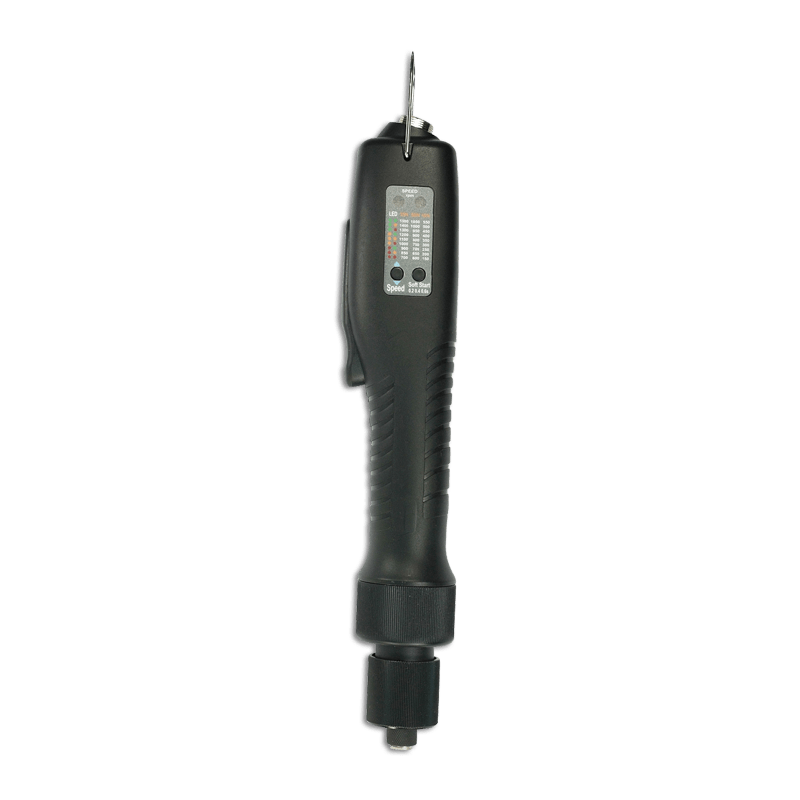

The GX50 BT ESD-G electric shut-off straight screwdriver allows you to perform your vertical assemblies with precision with the most common torques. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Type of screwdriver

Shut-off brushless electric screwdriver

Min Torque

2 Nm lbf.in

Max Torque

4.9 Nm lbf.in

Min speed rotation

600 tr/min rpm

Maxi speed rotation

1050 tr/min rpm

Drive Size

1/4" F/Hex

Weight

0.92 kg lbs

Starting system

Lever

Power

Electric

Functionalities

ESD

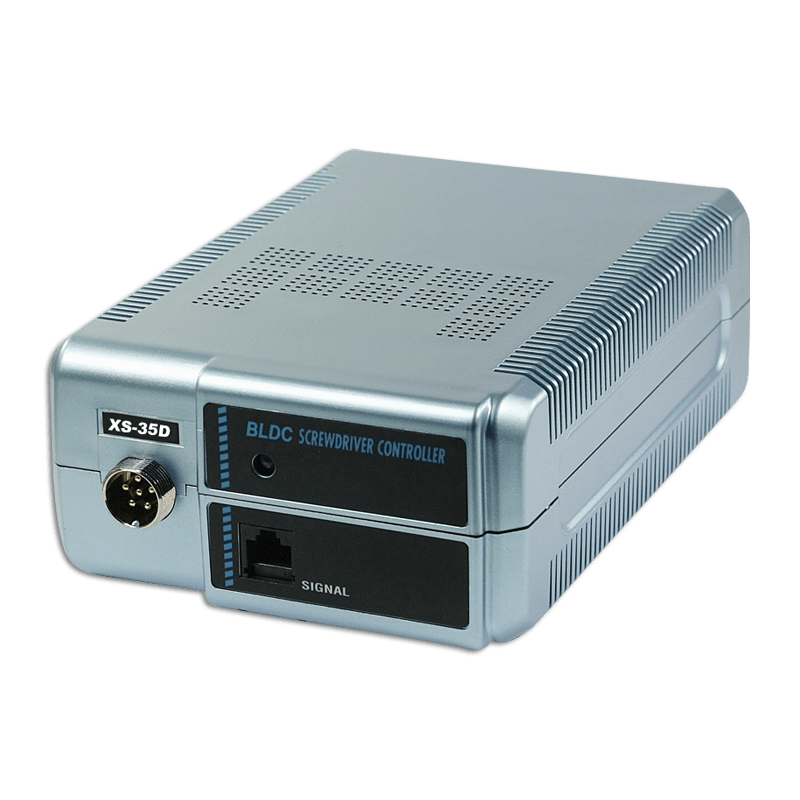

Suitable controller

XS-35D

Benefits

Productivity

Maximum efficiency (high speeds)
Optimized limited features
High reliability
Surge and temperature protection

Quality

Brushless motor (maintenance free)
Start, reversibility and non-contact sensor shut-off
Unmatched quality / efficiency / price ratio
ESD-free body

Comfort

Optimized ergonomics
Excellent weight / ergonomics ratio
Silent motor <70dBA

Product description

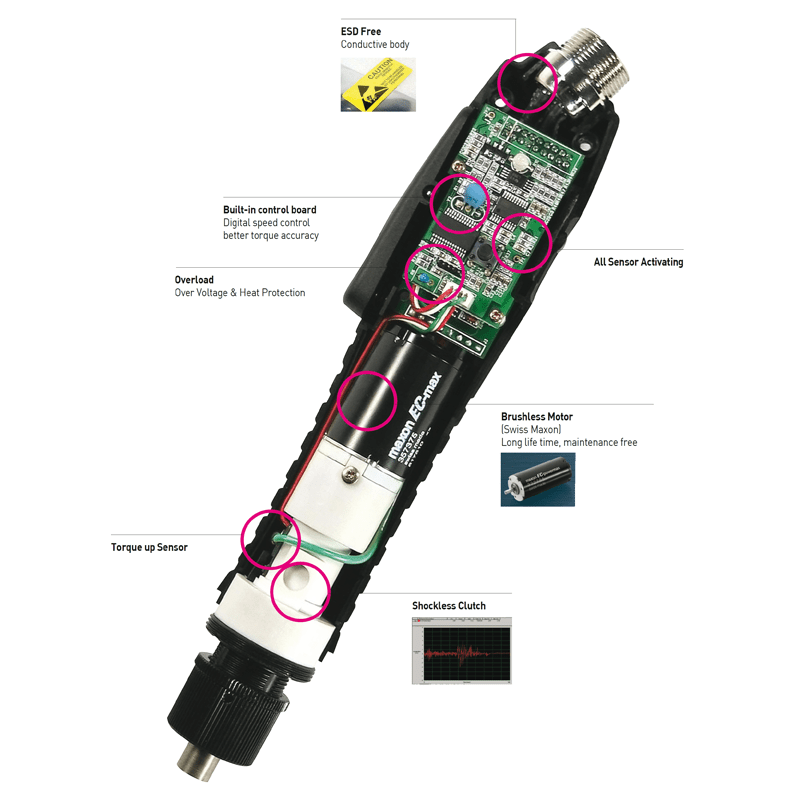

Equipped with a maintenance-free brushless motor, the GX50 BT ESD-G lever-start straight screwdriver is the versatile solution for high-speed, high-torque assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
