GXS 220 ESD-H shut-off brushless electric screwdriver

Code P101405

GXS 220 ESD-H shut-off brushless electric screwdriver

Code P101405

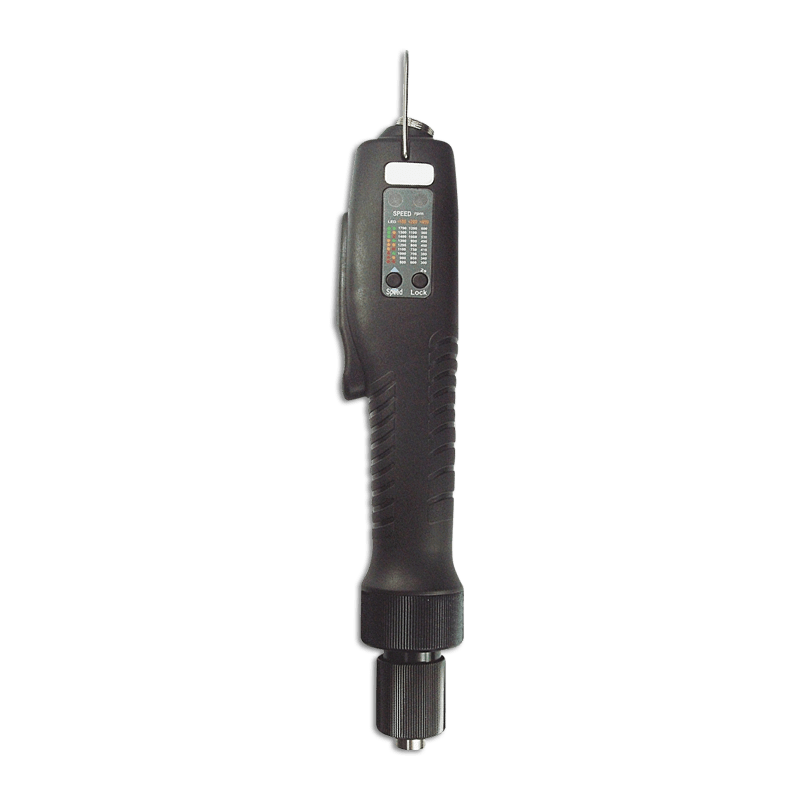

The GXS 220 ESD-H electric soft shut-off straight screwdriver allows you to perform your vertical assemblies with precision and protect fragile parts. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.6 Nm lbf.in
Max Torque
2.15 Nm lbf.in
Min speed rotation
600 tr/min rpm
Maxi speed rotation
1200 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.6 kg lbs
Starting system
Lever
Power
Electric
Functionalities
ESD,
Electronic components tightening
Suitable controller
XS40D (FA)

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXS 220 ESD-H lever-start straight screwdriver is the solution for your high-speed, low-torque assemblies.
Its soft clutch is particularly suitable for assembling fragile parts.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
