GXT 450 ESD-H shut-off brushless electric screwdriver

Code P100450

GXT 450 ESD-H shut-off brushless electric screwdriver

Code P100450

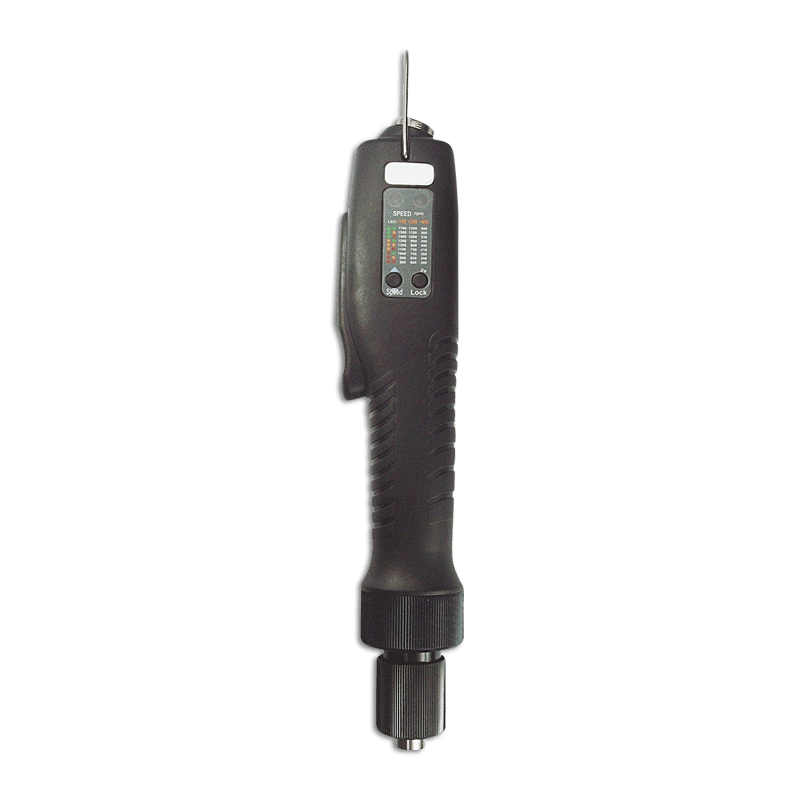

The GXT 450 ESD-H shut-off straight screwdriver has programmable functions that are ideally suited for tapping and threading operations. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
1 Nm lbf.in
Max Torque
4.41 Nm lbf.in
Min speed rotation
300 tr/min rpm
Maxi speed rotation
600 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.62 kg lbs
Starting system
Lever
Power
Electric
Functionalities
ESD,
Helicoil® /insert assembly
Suitable controller
XS40D (FA)

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXT 450 ESD-H lever-start straight screwdriver is the solution for your high-speed multi-sequence assemblies.
This mechanical clutch screwdriver has an advanced tighten / hold / loosen function with torque or angle control suitable for tapping, inserting, Helicoil® threading or terminal tightening operations.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
