GXT 80 ESD V2 shut-off brushless electric screwdriver

Code P103202

GXT 80 ESD V2 shut-off brushless electric screwdriver

Code P103202

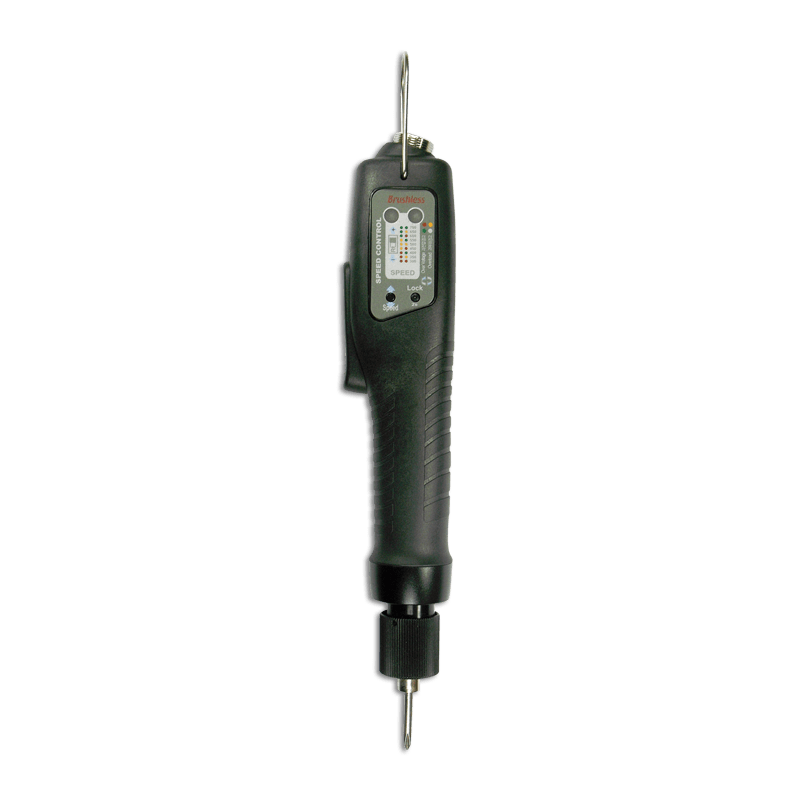

The GXT 80 ESD V2 electric shut-off straight screwdriver has programmable functions that are ideally suited for low-torque tapping and threading operations. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.09 Nm lbf.in
Max Torque
0.8 Nm lbf.in
Min speed rotation
450 tr/min rpm
Maxi speed rotation
1000 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.43 kg lbs
Starting system
Lever
Power
Electric
Functionalities
ESD,
Helicoil® /insert assembly
Suitable controller
XS40D (FA)

Benefits

Productivity
  • Digital speed adjustment
  • Extended features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Soft shut-off mechanical clutch
  • LED indicator on the screwdriver for signaling and adjustment
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXT 80 ESD V2 lever-start straight screwdriver is the solution for your high-speed, low-torque assemblies.
This mechanical clutch screwdriver has an advanced multi-sequence function, tighten/ hold / loosen with torque or angle control.
It is ideal for your tapping, threading or terminal tightening operations
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
