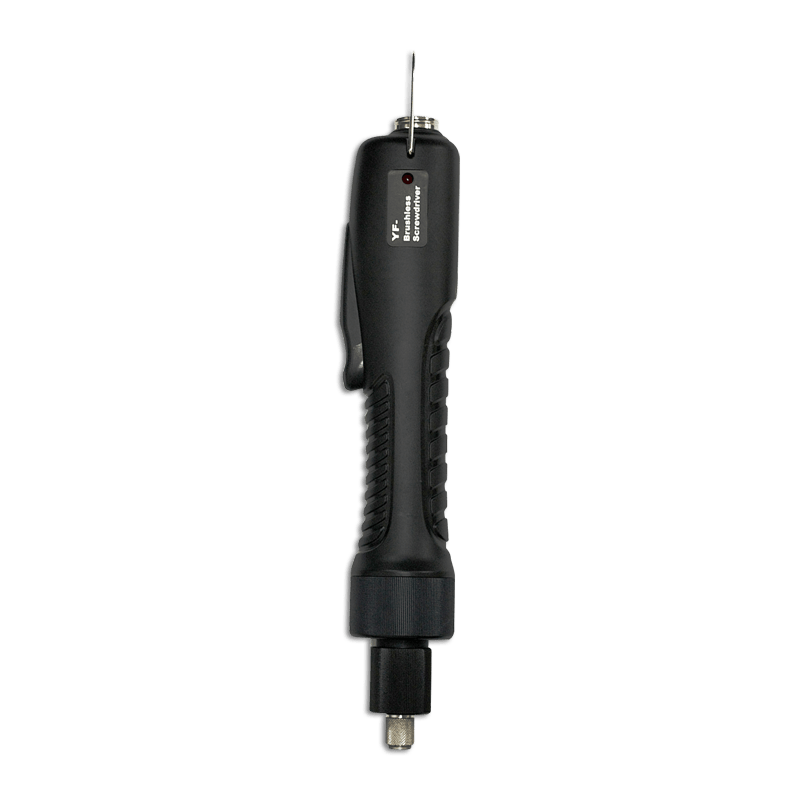

GY 100 ESD-G shut-off brushless electric screwdriver

Code P100320

GY 100 ESD-G shut-off brushless electric screwdriver

Code P100320

The GY100 ESD-G straight screwdriver is ideal for vertical tightening operations.

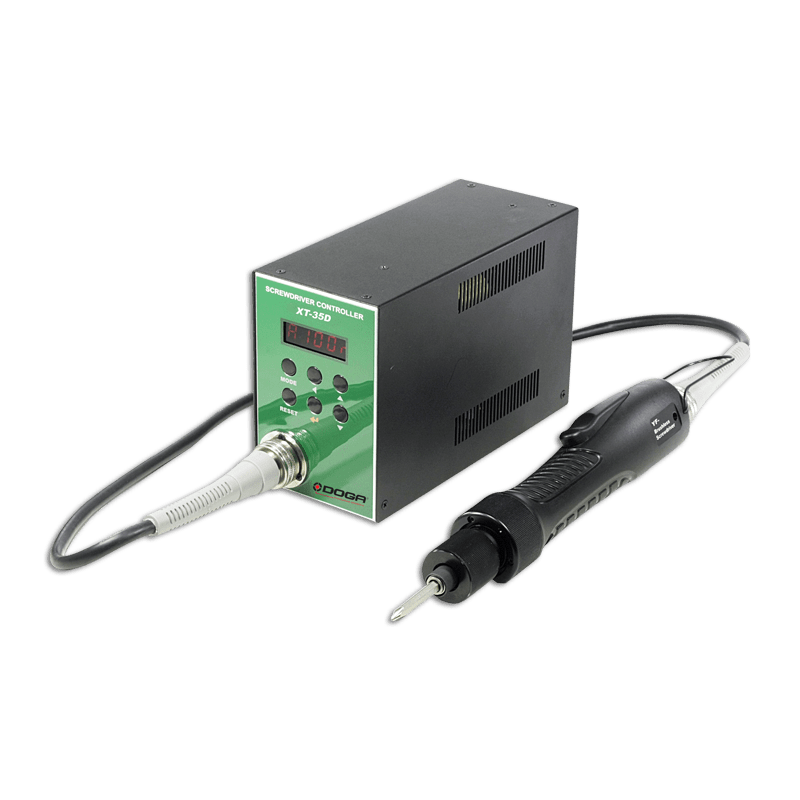

Combined with the XT-35D controller, this brushless shut-off screwdriver improves the quality of your assemblies while reducing your costs. It is controlled by lever.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Type of screwdriver

Shut-off brushless electric screwdriver

Min Torque

3.9 Nm lbf.in

Max Torque

9.8 Nm lbf.in

Min speed rotation

250 tr/min rpm

Maxi speed rotation

500 tr/min rpm

Drive Size

1/4" F/Hex

Weight

0.85 kg lbs

Starting system

Lever

Power

Electric

Functionalities

ESD

Suitable controller

XT35D

Benefits

Productivity

Multi-sequence functionality: tighten / hold / loosen
High quality, precise and impact-free mechanical clutch
Designed for high speeds
Torque or angle trigger

Quality

Brushless Maxxon motor (maintenance free) made in Switzerland
Input / output signals for Poka Yoke control
Defects signaling by LED indicator on the screwdriver
ESD-free body

Comfort

Ergonomic grip
Excellent weight / ergonomics ratio
Silent motor <70 dBA

Product description

Equipped with a maintenance-free brushless motor, the GY lever-start straight screwdriver is the solution for your high-speed applications.
This mechanical clutch screwdriver features advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
