Assembly technology

HD 150PA-G hybrid torque control electric screwdriver

Code 4-1027473

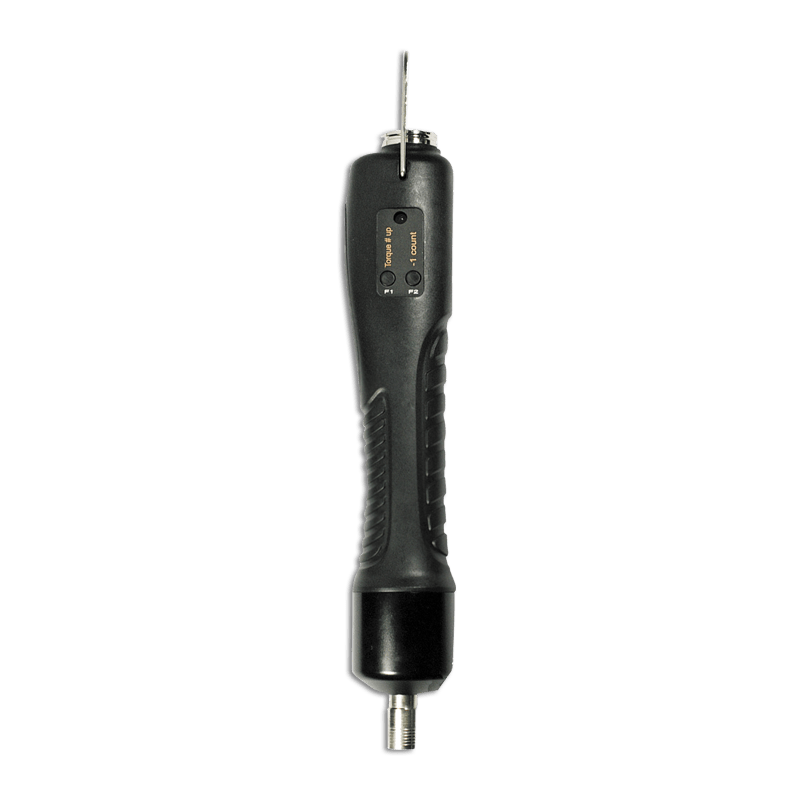

HD 150PA-G hybrid torque control electric screwdriver

Code 4-1027473

The HD150PA-G straight screwdriver is ideal for vertical tightening operations. Combined with the HDC controller, this Hybrid screwdriver is multi-torque and makes strategy sequencing possible. It guarantees high repeatability and high tightening precision. Tightening control is done by pressure.

Technical details

Type of screwdriver
Hybrid torque control electric screwdriver
Min Torque
0.5 Nm
Max Torque
1.5 Nm
Min speed rotation
500 tr/min
Maxi speed rotation
1700 tr/min
Drive Size
1/4" F/Hex
Weight
0.44 kg
Starting system
Push to start
Power
Electric
Functionalities
ESD,
Torque programmable,
Counting
Suitable controller
HDC-40i

Benefits

Productivity
  • Multi-torque (8 tightening programs)
  • Program sequencing
  • Mechanical clutch adjusted by air pressure
  • High tightening precision
Quality
  • Brushless Maxxon motor (maintenance free) made in Switzerland
  • Poka Yoke counting
  • Display of tightening results
Comfort
  • Ergonomic grip
  • Excellent weight / ergonomics ratio
  • Silent motor <70 dBA

Product description

This screwdriver’s design is unique.
Equipped with a high quality Brushless motor manufactured in Switzerland (Maxxon) and a pneumatically controlled torque limiter, the Hybrid screwdriver can execute up to 8 tightening programs and perform sequences of different torques on a single piece with counting function.
This technology allows you to multiply tightening strategies while reducing the number of tools at your workstation.
Configurable on the front panel via its HDC 40i controller or its Hi-Manager software, the tool is easy and quick to set up.

Associated products

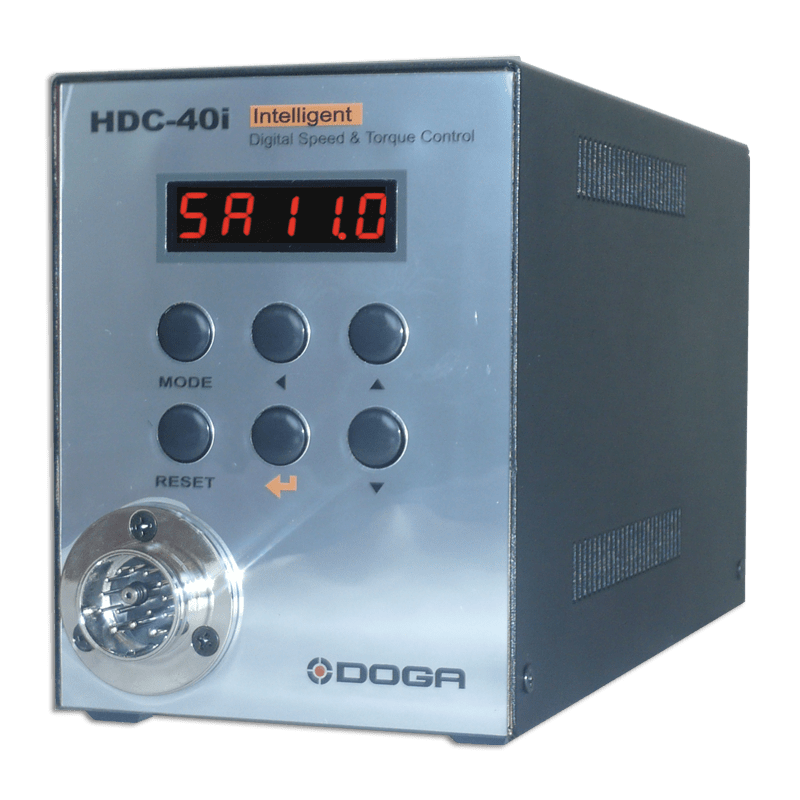

HDC controller

This controller can be programmed by software or directly on the front panel. It drives Hybrid multi-torque screwdrivers and is power and air operated.

Resources

Commercial documentation (1)
Technical documentation (1)
Software (4)
