PGY 35 ESD-G shut-off brushless electric screwdriver
PGY 35 ESD-G shut-off brushless electric screwdriver

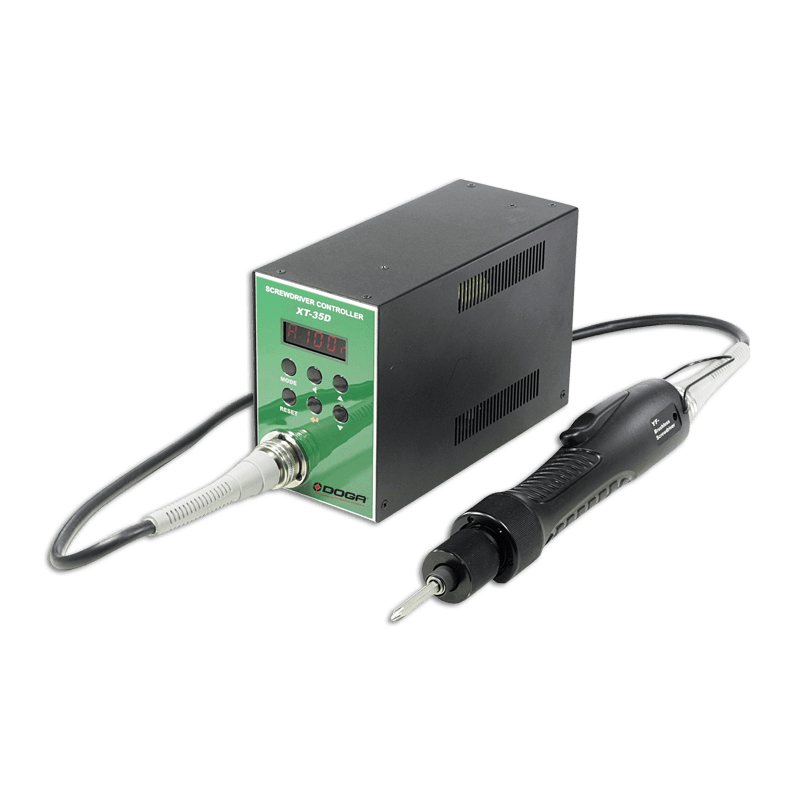

The PGY35 ESD-G pistol handgrip screwdriver is ideal for horizontal tightening operations with cable entry at the bottom. Combined with the XT35D controller, this total shut-off brushless screwdriver improves the quality of your assemblies while reducing your costs. It is controlled by a trigger on the grip.
Technical details
Benefits
- Multi-sequence functionality: tighten / hold / loosen
- High quality, precise and impact-free mechanical clutch
- Designed for high speeds
- Torque or angle trigger
- Brushless Maxxon motor (maintenance free) made in Switzerland
- Input / output signals for Poka Yoke control
- Defects signaling by LED indicator on the screwdriver
- ESD-free body
- Easy integration by fixing with a mounting flange
- Start and reversibility remote controls
- Silent motor <70 dBA
- Cable connection at the bottom
Product description
Equipped with a maintenance-free brushless motor, the PGY pistol handgrip screwdriver is the solution for your high-speed applications.
This mechanical clutch screwdriver features advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
