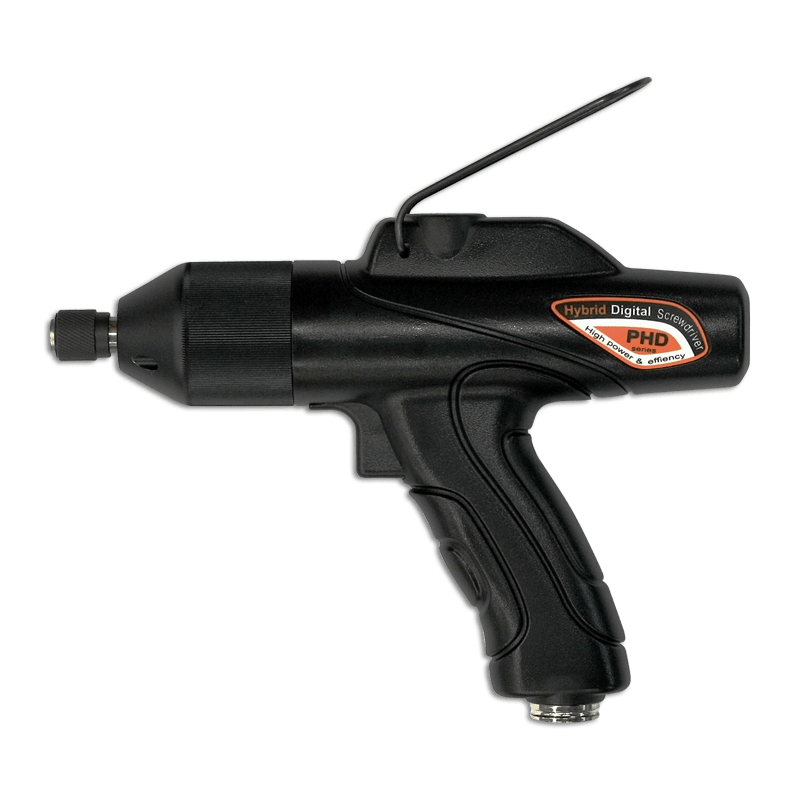

PHD 35N-A/U hybrid torque control electric screwdriver
PHD 35N-A/U hybrid torque control electric screwdriver
The PHD35N-A / U screwdriver is ideal for horizontal tightening operations. Combined with the HDC controller, this Hybrid screwdriver is multi-torque and makes strategy sequencing possible. It guarantees high repeatability and high tightening precision. Tightening is triggered on the pistol grip.
Technical details
Benefits
- Multi-torque (8 tightening programs)
- Program sequencing
- Mechanical clutch adjusted by air pressure
- High tightening precision
- Brushless Maxxon motor (maintenance free) made in Switzerland
- Poka Yoke counting
- Display of tightening results
- Ergonomic grip
- Excellent weight / ergonomics ratio
- Silent motor <70 dBA
Product description
This screwdriver’s design is unique.
Equipped with a high quality Brushless motor manufactured in Switzerland (Maxxon) and a pneumatically controlled torque limiter, the Hybrid screwdriver can execute up to 8 tightening programs and perform sequences of different torques on a single piece with counting function.
This technology allows you to multiply tightening strategies while reducing the number of tools at your workstation.
Configurable on the front panel via its HDC 35i controller or its Hi-Manager software, the tool is easy and quick to set up.
The cable exit can be at the top or bottom of the screwdriver depending on the workstation ergonomics.
Associated products
HDC controller
This controller can be programmed by software or directly on the front panel. It drives Hybrid multi-torque screwdrivers and is power and air operated.
