Assembly technology

DSEL RA30L1400 shut-off pneumatic screwdriver

Code 4-1544440

DSEL RA30L1400 shut-off pneumatic screwdriver

Code 4-1544440

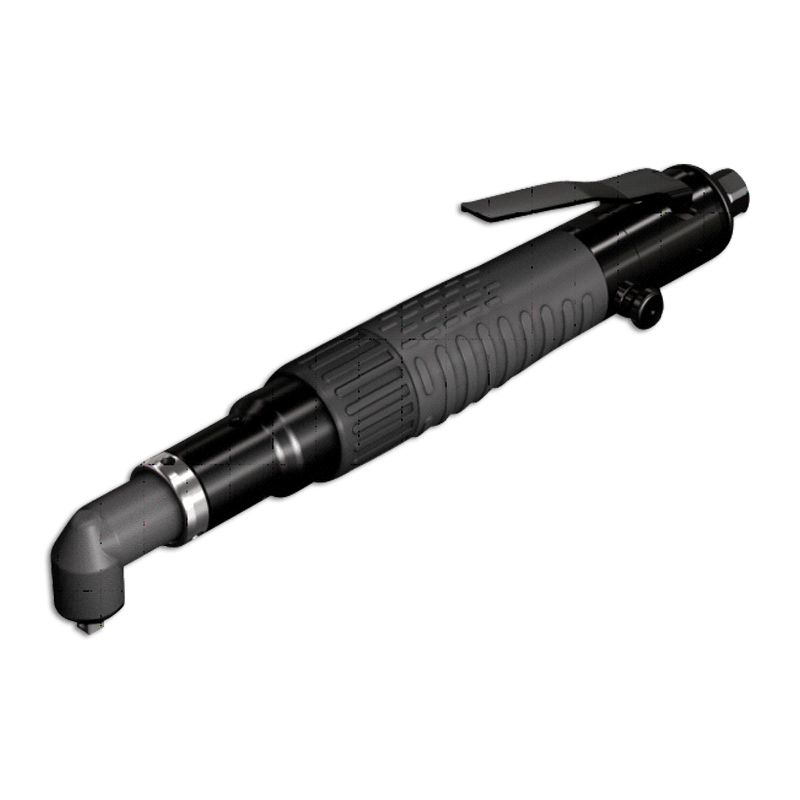

The DSEL-RA30L1400 pneumatic angle screwdriver is designed for small-capacity tightening in multi-plane or hard-to-reach environments. The startup is activated by a lever. It is equipped with an air-cutoff clutch which guarantees tightening precision.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
0.8 Nm lbf.in
Max Torque
3 Nm lbf.in
Nominal speed
1400 tr/min rpm
Drive Size
1/4 Square
Weight
0.7 kg lbs
Shape
Angle head
Starting system
Lever
Power
Pneumatic
Air inlet
G1/4
Noise level
73
Air flow
460

Benefits

Productivity
  • Efficiency, power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The lever arm of this angle tool cancels out the negative effects of the torque reaction
  • The body is covered with a bi-material, non-slip, flexible, ergonomic sheath.
Quality production
  • The torque is precisely repeated thanks to an air-cutoff clutch
  • The  start level optimizes startup control
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEL-RA30L1400 screwdriver features an ergonomic design that brings maximum comfort over long periods of use.
Its body is covered with a bi-material, non-slip, slightly curved coating which follows the shape of the palm.
The lever arm of this angle tool cancels out the negative effects of the torque reaction.
Equipped with a start-up lever and a mechanical clutch with cutting-edge air-cutoff, it combines precision of movement and quality tightening.

Resources

1Commercial documentation

Pneumatic tools – DSE series - DOC.60243

Straight tools
Pistol tools
Angle tools
Accessories / Options

Download the file in pdf

2Technical documentation

Thumbnail

Manuel d'utilisation visseuses pneumatiques / Instructions manual pneumatic screwdrivers – DSE serie (FR / EN) - DOC.40913

Recommandations générales
Installation
Recommandations d'utilisation / General safety rules
Maintenance et réparation / Replacement and maintenance
Stockage après utilisation
Démolition
Emballages
Fonctionnement / Tool use
Conditions de garantie / Warranty terms

Download the file in pdf
