Assembly technology

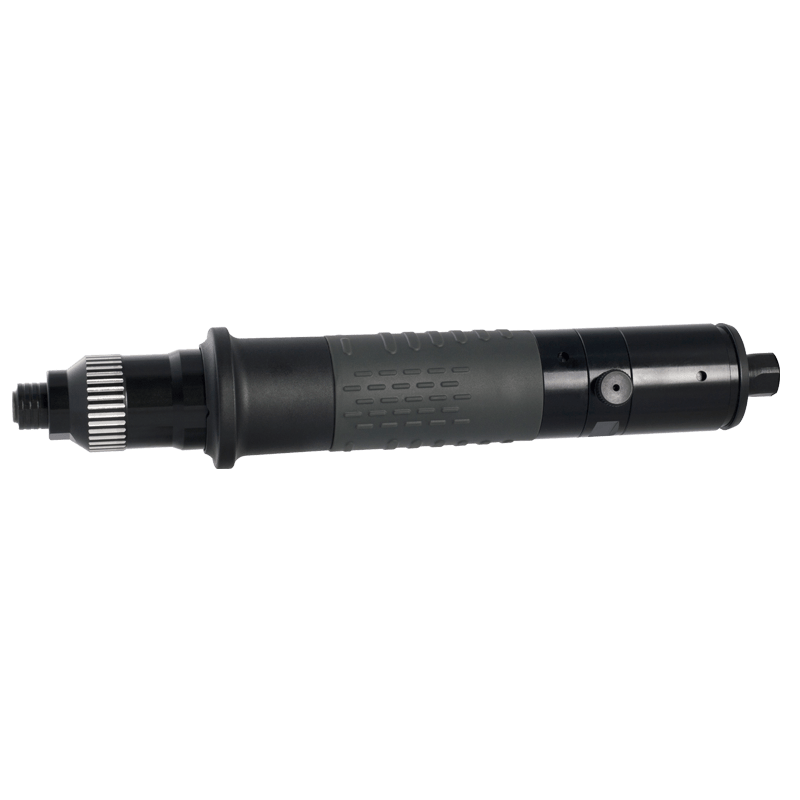

DSEI A120P400 shut-off pneumatic screwdriver

Code 4-1588810

DSEI A120P400 shut-off pneumatic screwdriver

Code 4-1588810

The DSEI A120P400 pneumatic axial screwdriver is intended for vertical use. A push-to-start system allows the operator to activate the tool. It is equipped with an air-cutoff clutch which guarantees tightening precision.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
3.5 Nm lbf.in
Max Torque
12 Nm lbf.in
Nominal speed
400 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.9 kg lbs
Shape
Straight
Starting system
Push to start
Power
Pneumatic
Air inlet
G1/4
Noise level
73
Air flow
500

Benefits

Productivity
  • Power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The push-to-start is facilitated by a flared ring located at the tip of the tool
  • The body of the screwdriver is covered with a bi-material non-slip flexible ergonomic sheath
Quality production
  • The torque is durably reproduced with precision thanks to an air-cutoff clutch
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEI A120P400 screwdriver has an ergonomic design that gives the operator maximum comfort over long periods of use.
Its body is covered with a non-slip coating with a massaging effect in the hand.
The vertical push is facilitated by a flared ring serving as a support at the tip of the tool.
Equipped with a Push-to-Start system and a mechanical clutch with cutting-edge air-cutoff, it combines productivity and tightening quality.

Resources

1Commercial documentation

Pneumatic tools – DSE series - DOC.60243

Straight tools
Pistol tools
Angle tools
Accessories / Options

Download the file in pdf

2Technical documentation

Thumbnail

Manuel d'utilisation visseuses pneumatiques / Instructions manual pneumatic screwdrivers – DSE serie (FR / EN) - DOC.40913

Recommandations générales
Installation
Recommandations d'utilisation / General safety rules
Maintenance et réparation / Replacement and maintenance
Stockage après utilisation
Démolition
Emballages
Fonctionnement / Tool use
Conditions de garantie / Warranty terms

Download the file in pdf
