DPTS 60SHD shut-off pulse screwdriver
Code 4-1080043
DPTS 60SHD shut-off pulse screwdriver
Code 4-1080043

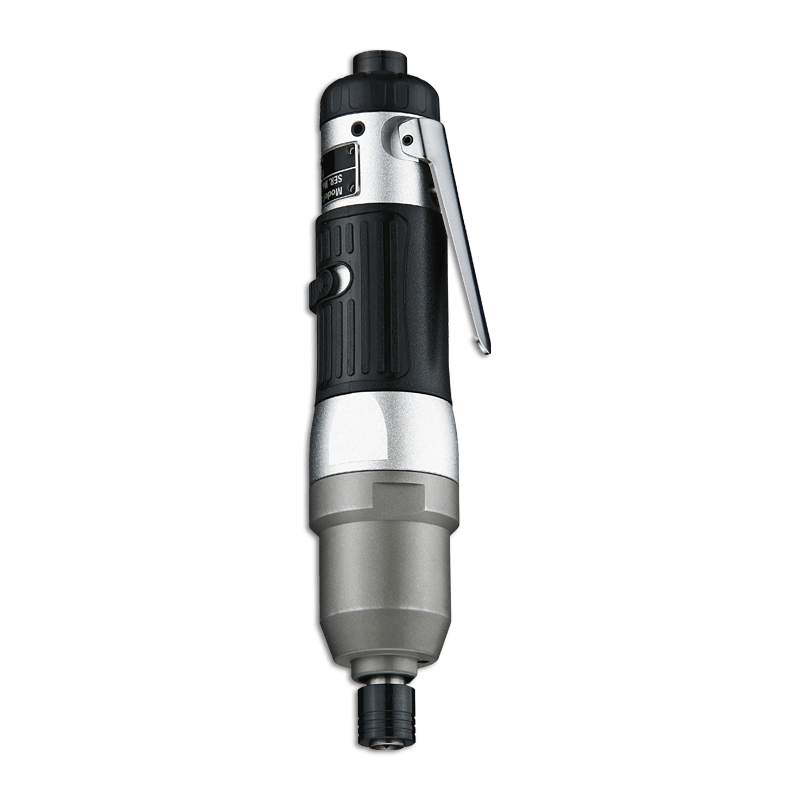

The DPTS-60SHD adjustable automatic shut-off straight impulse screwdriver is fast, accurate and torque reaction free. It is equipped with a fast, chuck type drive for female ¼” hex bits.
Technical details
Type of screwdriver
Shut-off pulse screwdriver
Min Torque
18 Nm
Max Torque
30 Nm
Vibration
5.3 m/s2
Speed rotation 5 bars
5700 tr/min
Speed rotation 6 bars
6000 tr/min
Drive Size
1/4" F/Hex
Weight
0.86 kg
Starting system
Lever
Power
Pneumatic
Air inlet
G1/4
Benefits
Comfort
- No torque reaction for the operator’s wrist
- Lightweight
- Compact
Productivity
- High rotation speed: 6000 rpm at 6 bar
Quality
- Tightening accuracy thanks to the adjustable automatic shut-off
Product description
The DPTS-60SHD impulse screwdriver is ideal for fast, accurate tightening, on a rigid joint thanks to its adjustable automatic shut-off.
Lightweight and compact, it is extremely comfortable and torque reaction free.
Cycle times and operator comfort are optimized thanks to high rotation speeds and an unparalleled weight / power ratio.
