DPTS 150 shut-off pulse screwdriver
Code 4-1088200
DPTS 150 shut-off pulse screwdriver
Code 4-1088200

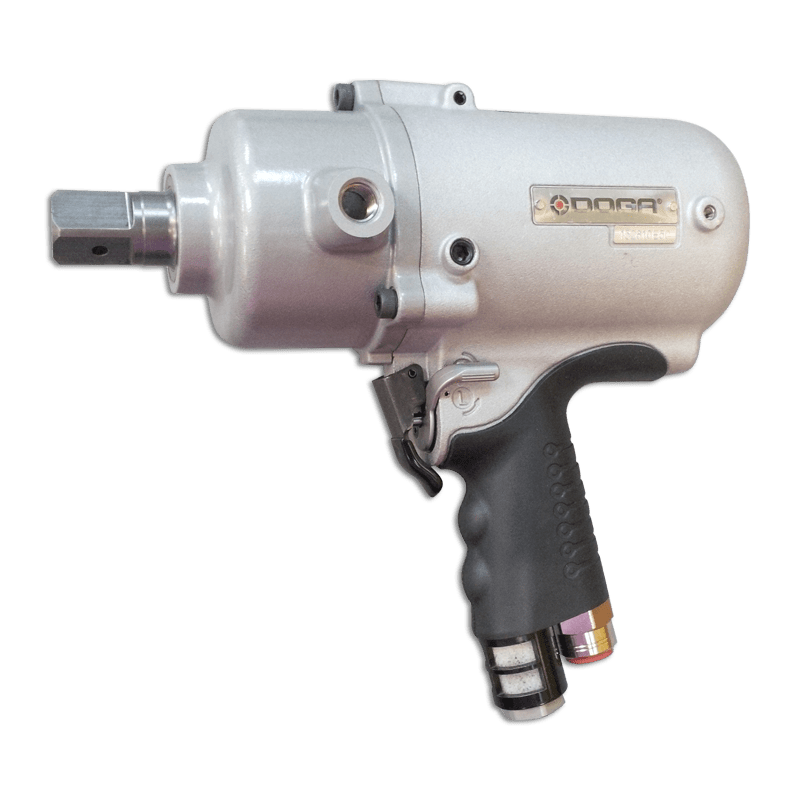

The DPTS-150 adjustable automatic shut-off impulse pistol screwdriver is fast, accurate and torque reaction free. It is equipped with a ¾” male square drive.
Technical details
Type of screwdriver
Shut-off pulse screwdriver
Min Torque
145 Nm lbf.in
Max Torque
210 Nm lbf.in
Vibration
2.8 m/s2 m/s2
Speed rotation 5 bars
3500 tr/min rpm
Speed rotation 6 bars
3700 tr/min rpm
Drive Size
3/4 Square
Weight
3.15 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Pneumatic
Air inlet
G1/4
Benefits
Comfort
- No torque reaction for the operator’s wrist
- Lightweight
- Compact
Productivity
- High rotation speed: 3700 rpm at 6 bar
Quality
- Tightening accuracy thanks to the adjustable automatic shut-off
Product description
The DPTS-150 impulse screwdriver is ideal for fast, accurate tightening, on a rigid joint thanks to its adjustable automatic shut-off.
Lightweight and compact, it is extremely comfortable and torque reaction free.
Cycle times and operator comfort are optimized thanks to high rotation speeds and an unparalleled weight / power ratio.
Resources
1Commercial documentation
marketing
Auto shut-ohh impulse tools - DPTS series - DOC.60216
For extraordinary speed and power
- DPTS pistol series
- DPTS straight series
- DPTS angle head series
- Accessories
2Technical documentation
technical
Instructions manual - DPTS impulse wrenches & screwdrivers - DOC.60204
- General safety rules
- Replacement and maintenance
- Steps for torque adjustment - Pistol type/straight type/200 model/angle type
- Parts list
- Trouble shooting
- Vibration of models
