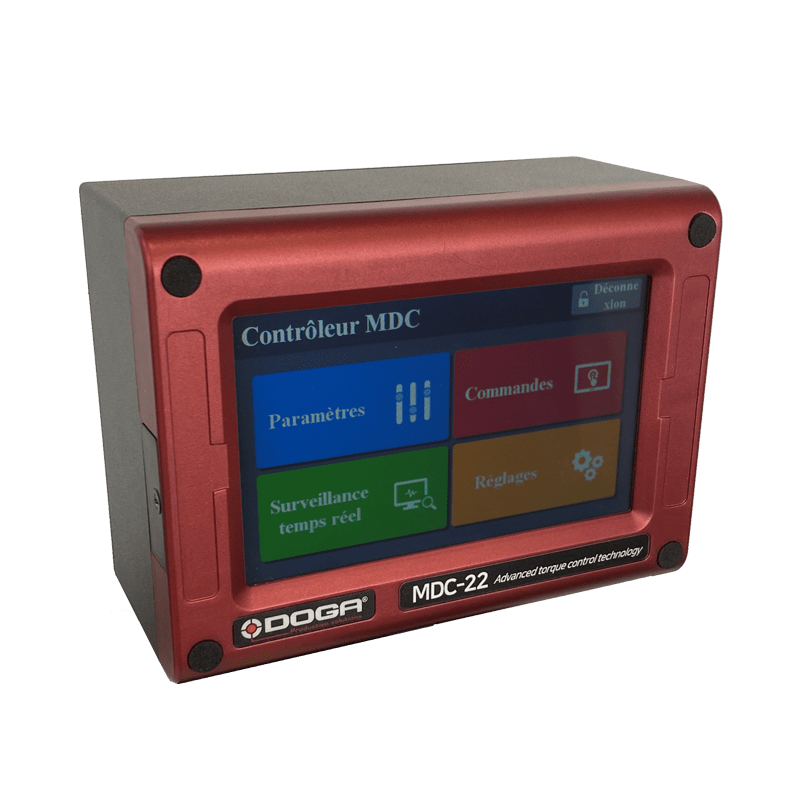

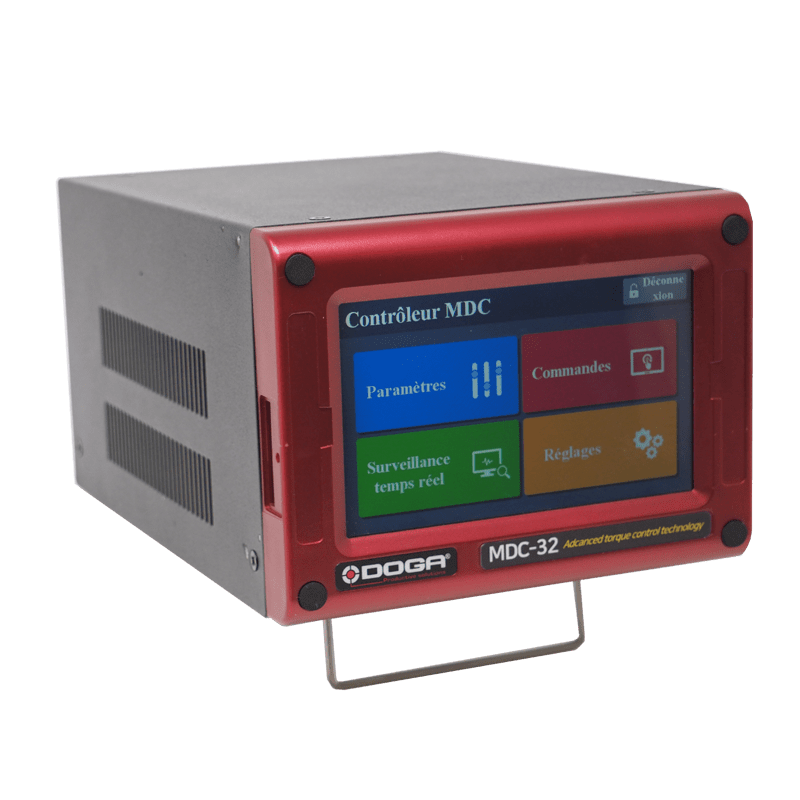

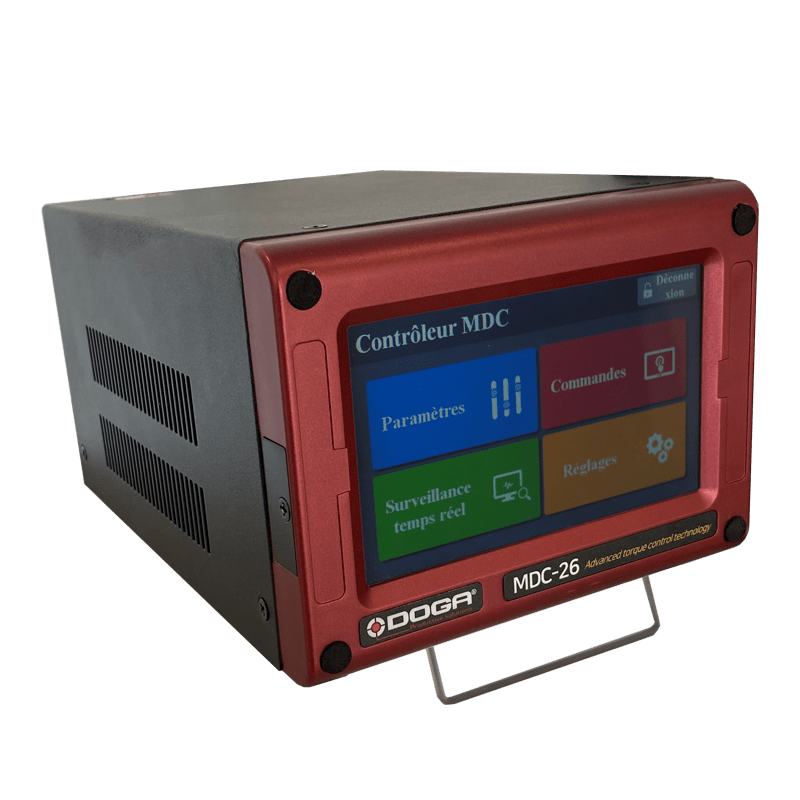

MDC-22 model: code P116806 / MDC-26 model: code P100015 / MDC-32 model: code P100009

15 different tightening programs can be set in each MDC controllers each with 15 customizable parameters (tightening strategy, torque, angle, speed, time) as well as advanced functions.

Product description

  • Self-learning mode for optimized tightening parameters
  • Sequencing models with assignable tightening program, batch counting
  • Logical I/O managment
Standard models (including 8 GB SD card)

Input:  AC230V, 50/60Hz
Output: DC38V 3.5A
Fuse: 230V 5A
Operating environment: 0 ~ 40°C / 15 ~ 80% RH (without dew)
Front panel: 5” color LCD with touch screen
Communication: 1 x RS232C, 1 x Ethernet
Protocol: Modbus RTU, Modbus TCP/IP
I/O: 15 Inputs & 8 Outputs assignable I/O (25P D-Sub)
Tightening strategies: 15
Torque calibration: - 10% ~ +10%
Screwdriver recognition: Auto detection of connected driver when power ON of controller
Error display: Error code display (3 groups)
Fastening verification: Fastening data verification (NG/OK) by the preset pattern of angle

Optional accessories

• RS232 Cable DB9 Male/DB9 Female 3 meters: Code P101542
• USB to RS232 converter: Code P101402
• Lift-up stand kit: Code P100971

Associated products

Resources

1Commercial documentation

60303

Torque and angle control screwdrivers - MD series - DOC.60303

  • Straight screwdrivers - MD serie
  • Pistol screwdrivers - MDP serie
  • Angle nutrunners - MDH serie
  • Spindle for automation - MDA serie
  • MDC controllers
  • ParaMon free PC software
  • Accessories and calibration
  • Additional products
  • Our services
Download the file in pdf

4Software

ParaMon software

For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.

Including:

  • ParaMon III:

PC software for network tools management, setup and backup via an integrated database.


  • Controller firmware and LCD firmware

Update compatible with any actual tool and controller (except MDCv1 legacy product).



Files version:

  • BM_FW_v1.34.0+XML_v1.9
  • BMT_FW_v1.44.0+XML_v1.10
  • MDC22_MINI_FW_v3.00.9+XML_v1.9
  • MDCv2_26&32_FW_v2.32.4+XML_v1.9
  • MDTC38_Normal_FW_v1.33.9+XML_v1.12
  • ParaMon III_v3.00.8_20240517
  • ParaMon III user manual - DOC.60505
  • ParaMon XML vs Firmware - DOC.60205
Download the file in zip

2Technical documentation

COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455

-    Com Protocole MODBUS MDv2 MDT – DOC.60430
-    Modbus MDCv2 address and function – DOC.60454
-    Modbus MDTC address and function – DOC.60455

Download the file in zip
60428

COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428

1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages

Download the file in pdf

Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342

- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard

Download the file in pdf
