Wireless DC screwdriver BMH3245-Q3-8

Code 4-1050681

Wireless DC screwdriver BMH3245-Q3-8

Code 4-1050681

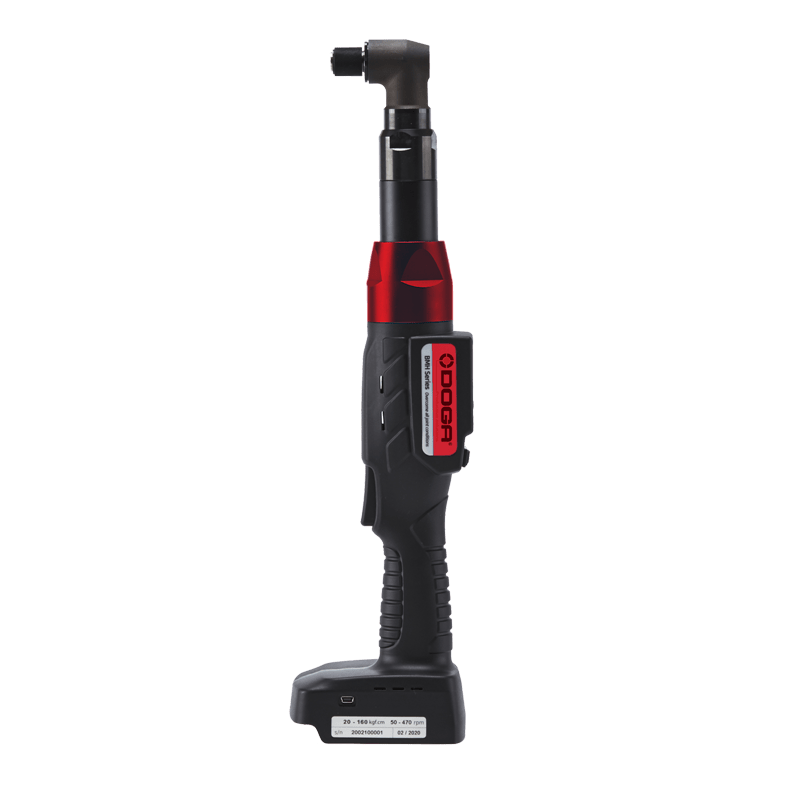

Suitable with Industry 4.0, BMH3245-Q3/8 torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

Contact us

Technical details

Type of screwdriver
Visseuse asservie autonome
Min Torque
5.9 Nm lbf.in
Max Torque
39.2 Nm lbf.in
Min speed rotation
50 tr/min rpm
Maxi speed rotation
160 tr/min rpm
Drive Size
3/8 Square
Weight
1.7 kg lbs
Shape
Angle head
Starting system
Lever
Power
Batterie Li-ion 25,2 V
Functionalities
Torque programmable,
Network communication
Suitable controller
Paramon-Pro X (en option)

Benefits

Performance
  • Torque repeatability : +/- 3% (thanks to torque and speed control in closed loop)
  • Torque and angle strategies
  • Advanced features
Ergonomy



  • Light and well balanced tool
  • Clear and detailled AMOLED display
  • Program selection on display
  • Torque and speed setting for each program
Industry 4.0

  • Embedded web server for tool setting on local network
  • Real time torque data and curve display on PC software
  • Real time fastening data output by USB and WiFi
  • Modbus protocol
User friendly

  • Easy parameters setting

Product description

BM torque and angle current control battery screwdrivers are distinguished by their ergonomics and an intuitive and interactive embedded color display.

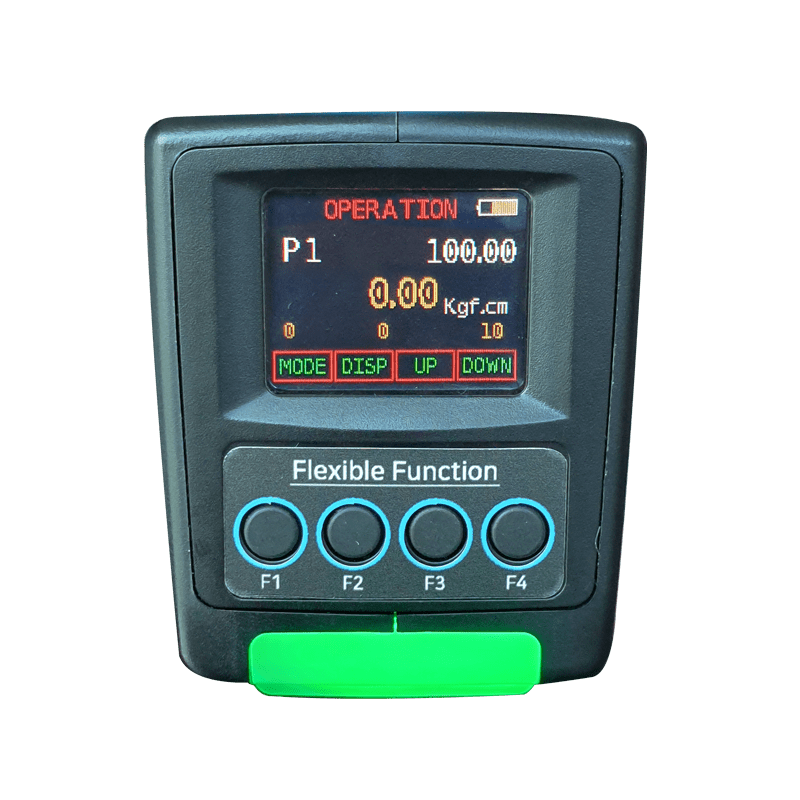

This screen displays torque target, selected program and tightening results. Buttons allows the selection of 15 programs and 2 multi-sequences as well as the adjustment of torque and speed.
Closed-loop control allows real-time correction of the current and speed to reach precisely the torque target.



BM screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.



  • Access to each screwdriver web server connected on the local area network via your web browser for setting, saving or loading parameters, viewing graph and results.
  • In addition to the embedded web server, ParaMon software allows you to configure and monitor data on a PC in real time via a WiFi or USB connection.

Associated products

Resources

1Commercial documentation

60338

Wireless advanced current control tools - BM serie - DOC.60338

- A range of powerful and connected wireless screwdrivers
- Accessories
- ParaMon-Pro X interface controller (optional)
- Related products
- Our services

Download the file in pdf

4Software

ParaMon software

For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.

Including:

  • ParaMon III:

PC software for network tools management, setup and backup via an integrated database.


  • Controller firmware and LCD firmware

Update compatible with any actual tool and controller (except MDCv1 legacy product).



Files version:

  • BM_FW_v1.34.0+XML_v1.9
  • BMT_FW_v1.44.0+XML_v1.10
  • MDC22_MINI_FW_v3.00.9+XML_v1.9
  • MDCv2_26&32_FW_v2.32.4+XML_v1.9
  • MDTC38_Normal_FW_v1.33.9+XML_v1.12
  • ParaMon III_v3.00.8_20240517
  • ParaMon III user manual - DOC.60505
  • ParaMon XML vs Firmware - DOC.60205
Download the file in zip

2Technical documentation

COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452

-    Com Protocole MODBUS BM/BMT – DOC.60427
-    Modbus BM address and function – DOC.60451
-    Modbus BMT address and function – DOC.60452

Download the file in zip

Instructions manual - Wireless DC tools BM series - DOC.60387

- General safety rules
- Product
- Screwdriver
- Battery & battery charger
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver set up with Paramon Air or BM web serveur
- BM web serveur
- Firmware upgrade
- Error code
- Parameter details and factory setting
- Modbus com protocol
- Maintenance
- Standards


Download the file in pdf
