Wireless transducerized BMT 3206-A
Wireless transducerized BMT 3206-A

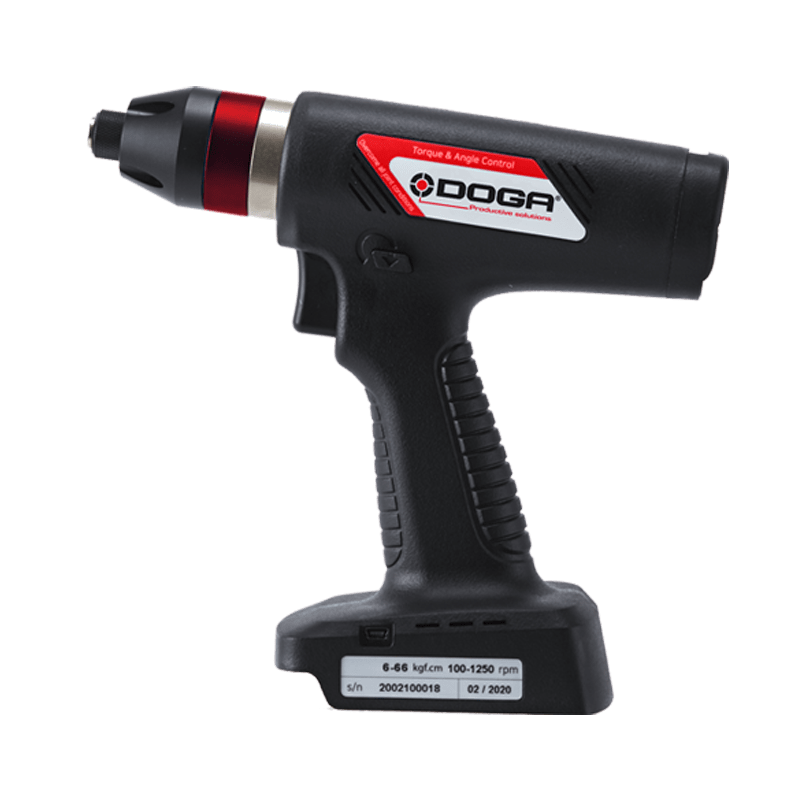

Suitable with the Industry 4.0 requirements, BMT3206-A wireless tool with built in torque transducer and angle encoder combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is Hex. 1/4" female.
Technical details
Benefits
- Torque target accuracy >= +/- 7% within a capability Cmk>1.67
- Average repeatability of +/- 2%
- Torque and angle strategies
- Advanced features
- Not sensitive to joint type
- Light and well balanced tool
- Clear and detailled AMOLED display
- Program selection on display
- Torque and speed setting on display for each program
- Embedded web server for tool setting on local network
- Real time torque data and curve display on PC software
- Real time fastening data output by WiFi or USB port
- Modbus protocol
- Easy parameters setting
Product description
BMT3204 wireless screwdriver enjoys an intelligent control mode with torque transducer and angle encoder ensuring high assembly precision.
Closed-loop control allows real-time correction of the current and speed to precisely reach the torque target.

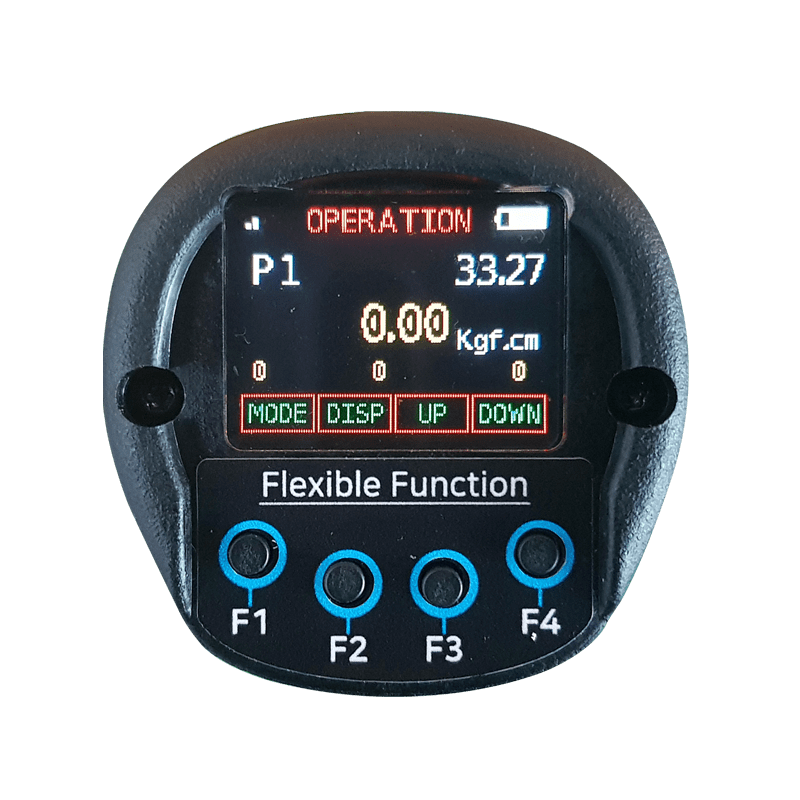

Operator can easily select presets (15 programs and 2 multisequences) and view tightening results thanks to intuitive embedded color display.
This screen display also torque and speed target as well as the adjustment of these settings.
BM screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.
- Access to each screwdriver web server connected on the local area network via a web browser for setting, saving or loading parameters, viewing graph and results.
- In addition to the embedded web server, ParaMon software allows you to configure and monitor data on a computer in real time via a WiFi or USB connection.
- Real time fastening data output by WiFi with Modbus protocol
- Full tightening settings read and write by WiFi with Modbus protocol
- WiFi Remote control with Modbus protocol
Videos
Associated products
ParaMon-Pro X controller
- Real-time monitoring: display graphs and results
Resources
1Commercial documentation
Wireless advanced transducerized tools - BMT serie - DOC.60407
- A range of powerful and connected wireless transducerized screwdrivers
- Accessories
- Paramon-Pro X interface controller (optional)
- Related products
- Our services
4Software
ParaMon software
For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product).
Files version:
- BM_FW_v1.34.0+XML_v1.9
- BMT_FW_v1.44.0+XML_v1.10
- MDC22_MINI_FW_v3.00.9+XML_v1.9
- MDCv2_26&32_FW_v2.32.4+XML_v1.9
- MDTC38_Normal_FW_v1.33.9+XML_v1.12
- ParaMon III_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- ParaMon XML vs Firmware - DOC.60205
2Technical documentation
COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452
- Com Protocole MODBUS BM/BMT – DOC.60427
- Modbus BM address and function – DOC.60451
- Modbus BMT address and function – DOC.60452
Instruction manual - Wireless DC tool - Transducerized BMT series - DOC.60425
- BMT specification
- Battery & charger specifications
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver setup with ParaMon AirT & web server
- BMT web serveur
- Firmware upgrade
- Modbus com protocol
- Maintenance
- Safety
- Standards
- Appendices
