Angle head wireless DC screwdriver BMH 3211-Q/S 3/8 with barcode scanner
Angle head wireless DC screwdriver BMH 3211-Q/S 3/8 with barcode scanner
Suitable with Industry 4.0, BMH3204-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.
Technical details
Benefits
- Torque repeatability : +/- 3% (thanks to torque and speed control in closed loop)
- Torque and angle strategies
- Advanced features
- Light and well balanced tool
- Clear and detailled AMOLED display
- Program selection on display
- Torque and speed setting for each program
- Embedded web server for tool setting on local network
- Real time torque data and curve display on PC software
- Real time fastening data output by USB and WiFi
- Modbus protocol

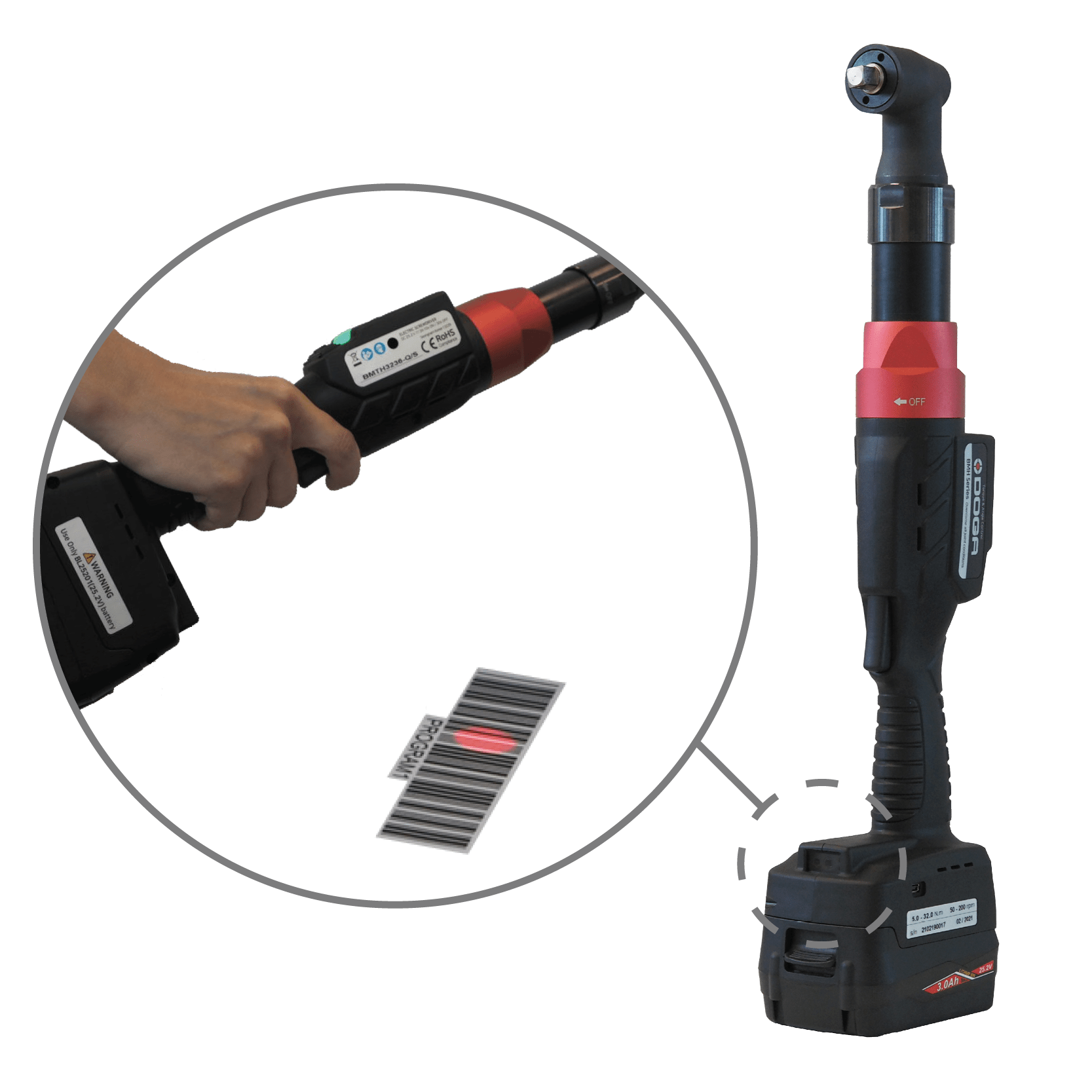

- Traceability of tightening data thanks to barcode linked to each result
- Easy parameters setting
Product description
BM torque and angle current control battery screwdrivers are distinguished by their ergonomics and an intuitive and interactive embedded color display.

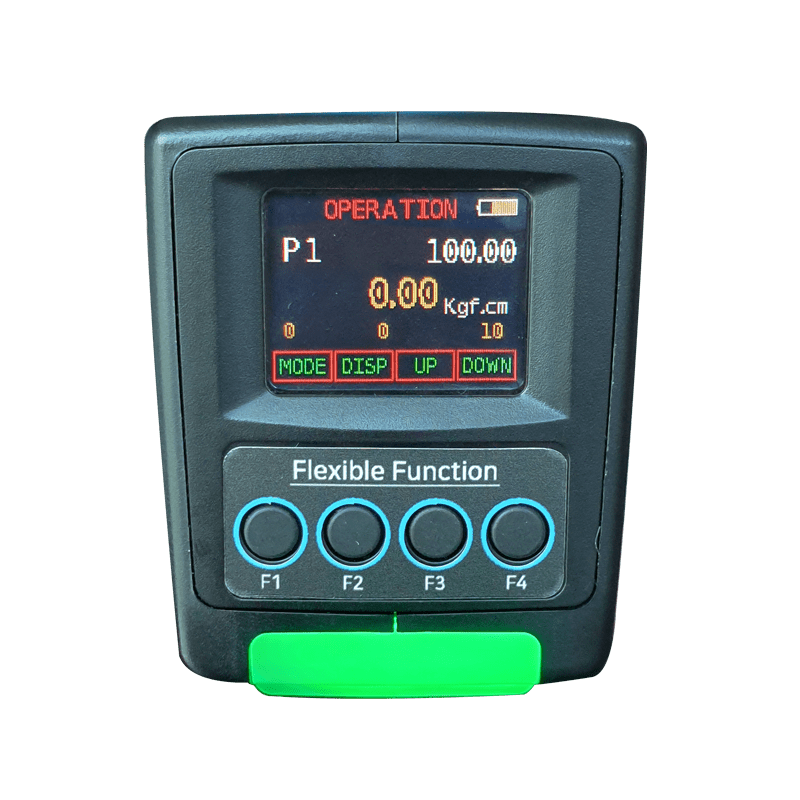

This screen displays torque target, selected program and tightening results. Buttons allows the selection of 15 programs and 2 multi-sequences as well as the adjustment of torque and speed.
Closed-loop control allows real-time correction of the current and speed to reach precisely the torque target.
BM screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.
- Access to each screwdriver web server connected on the local area network via your web browser for setting, saving or loading parameters, viewing graph and results.
- In addition to the embedded web server, ParaMon software allows you to configure and monitor data on a PC in real time via a WiFi or USB connection.
Associated products
ParaMon-Pro X controller
Resources
1Commercial documentation
![60338](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60338-min.png?itok=61YPR_Mu)
Wireless advanced current control tools - BM serie - DOC.60338
Main features
Model specification
Tool dimension
Flexible function
Connection
Paramon Pro X controller (optional)
4Software
![](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
ParaMon softwares
For BM, BMT, MDCv2, MDC Mini and MDTC series
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database – dedicated to torque and angle tools and ParaMon-Pro X controllers.
- ParaMon Unified:
PC software for parameters setup and real time monitoring – only for Torque and Angle tools.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product.
Files version:
- BM_FW_v1.33.7+XML_v1.8
- BMT_FW_v1.43.8+XML_v1.9
- MDC22_MINI_FW_v3.00.8+XML_v1.8
- MDCv2_26&32_FW_v2.32.2+XML_v1.8
- MDTC38_Normal_FW_v1.33.9+XML_v1.12
- ParaMon III_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- ParaMon_Unified_v1.00.5_20220526
- ParaMon Unified user manual - DOC.60343
- ParaMon XML vs Firmware 2407 - DOC.60205
2Technical documentation
![](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452
- Com Protocole MODBUS BM/BMT – DOC.60427
- Modbus BM address and function – DOC.60451
- Modbus BMT address and function – DOC.60452
![](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
Instructions manual - Wireless DC tools BM series - DOC.60387
- General safety rules
- Product
- Screwdriver
- Battery & battery charger
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver set up with Paramon Air or BM web serveur
- BM web serveur
- Firmware upgrade
- Error code
- Parameter details and factory setting
- Modbus com protocol
- Maintenance
- Standards
