CELPRO | Taylor-made torque reaction arms
CELPRO | Taylor-made torque reaction arms

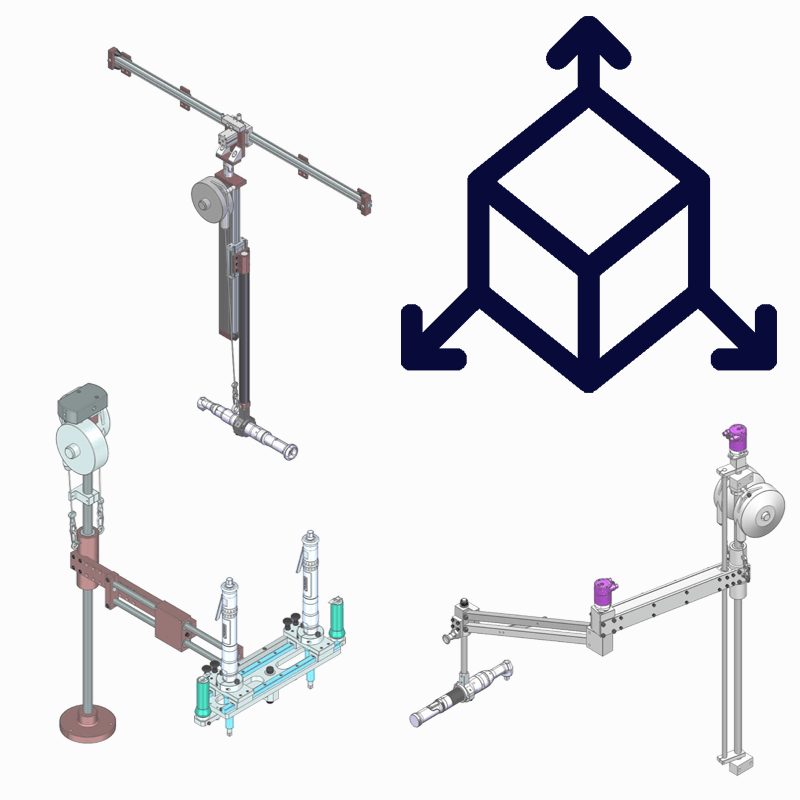

Arms with adapted geometry according to the applications and working environment.
Resources
5Cases of application
![60358](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60358-min.png?itok=zzQ0ly5d)
Application sheet - Blind engine support tightening - DOC.60358
Engine support tightening at 270Nm wtih limited access & visibility.
Torque reaction arm allowing the operator to work with a good visibility and in an ergonomic position.
![60422](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60422-min.png?itok=lrr2hysc)
Application sheet - Complete tightening workstation with in line transducerized tools - DOC.60422
Accurate tightening in vertical and horizontal position of a loom angle.
Download the file in pdf![60420](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60420-min.png?itok=Vmoaiqni)
Application sheet - Helicoil insert mounting - DOC.60420
Workstation for Helicoil inserts mounting with positionning control.
Download the file in pdf![60319](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60319-min.png?itok=rCVH9RS-)
Application sheet - High torque fastening on mobile aerial lift - DOC.60319
Assembly of aerial lift components at 225 Nm and 66 Nm without reaction bar. Operator visual guidance required during assembly operations.
Download the file in pdf![60362](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60362-min.png?itok=uzfG0y5e)
Application sheet - High torque tightening - DOC.60362
Assembly optimization in terms of quality and ergonomic for high torque (400Nm).
To be able to make different assemblies with high torque and a controlled process, by replacing pneumatic
tightening tools and various torque bars.
![60410](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60410-min.png?itok=-A7ZVxv1)
Application sheet - Multi torque tightening workstation - DOC.60410
To tighten M6 to M12 screws at various torques from 38,4 to 210 Nm.
Download the file in pdf![60399](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60399-min.png?itok=XC9txGQ0)
Application sheet - Realand front axle tightening underframe - DOC.60399
Tightening of real axle under frame, torque 1000 Nm.
Difficult access environment.
To replace home-made arm to improve ergonomy & safety.
![60401](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60401-min.png?itok=QgfnYULt)
Application sheet - Road sign tightening - DOC.60401
To be able to achieve tightening of 5 screws with a screwdriver positionning assistance device for the operator. Specific torque reaction arm with adjustable stop to help the operator, screwdriver with automatic screwfeeding.
Download the file in pdf![60361](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60361-min.png?itok=3SxylWQB)
Application sheet - Screwing trolley with slide - DOC.60361
Multi-disc plow frame assembly under difficult access conditions with a tightening torque at 90Nm to improve
screw tightening quality and ergonomy.
![60456](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60456-min.png?itok=phi4OEvM)
Application sheet - Tightening station in profile with screwfeeding systems - DOC.60456
Integrated customised screw-feed kit for fasteners assemblies on profiles with difficult access to tightening positions and automatic screw feeding systems.
Download the file in pdf![60412](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60412-min.png?itok=WqwQf54D)
Application sheet - Tightening workstation of firing pin - DOC.60412
Tightening of firing pins on pyrotechnic grenade at 2 Nm.
Download the file in pdf![60423](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60423-min.png?itok=YOazKCAP)
Application sheet - Truck understructure assembly station - DOC.60423
Tightening and torque reaction device covering a 6.5 meter radius with access to the tightening points located between 500 and 1300 mm from the ground with a vertical and horizontal tightening axis and a 360° rotation possible around the vertical axis.
Download the file in pdf![60370](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60370-min.png?itok=3xWVcsX7)
Application sheet - Upper rear shock absorber under body - DOC.60370
To tighten 2 difficult access bolts upright at 35 Nm and warrant the comfort of the operator.
Download the file in pdf
