Application sheet - 3 spindles tightening workstation - DOC.60421

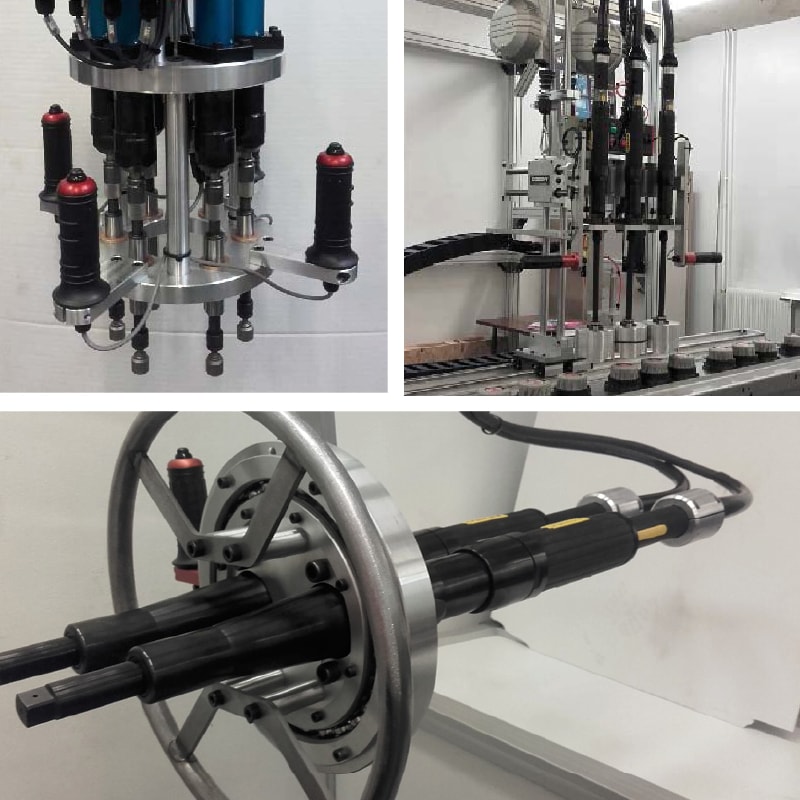

Workstation equipped with a fixed center distance 3 spindles fastening head. Target torque 46 Nm.
3 Stanley QBE-Advanced tightening units & axial screwdriver E34LB1-100 & specific mechanism.
Application sheet - 6 spindles fastening head with variable center distance - DOC.60418
Target torque 100 Nm.
6 spindles including: 4 spindles with 2 variable center distance (171mm & 208mm) and 2 removable spindles.
Application sheet - Automatic multi spindle tightening unit - DOC.60393
Fastening 9 screws automatically and simultaneously.
Fastening of hinges on Isoplane doors.
Application sheet - Double spindle with fixed pitch 55 mm - DOC.60394
To tighten simultaneously 2 screws with torque at 4.75 Nm at the 55 mm pitch.
Fastening of 2 screws with tightening synchronization to guarantee the plating of the element to be fixed.
Application sheet - Double spindle with variable pitch - DOC.60360
Multi-spindle (2) screwing head with rotation for tractor wheels tightening torque 340 Nm, variable pitch 152 mm,
275 mm & 203 mm.
To ensure the tightening of the wheel nuts on several tractor models with different center distance.
Application sheet - Multi-spindle (2) adjustable extra-axle wheel clamping - DOC.60357
Multi-spindle (2) screwing head with rotation for motor vehicles wheels tightening torque 105 Nm, center
distance 100mm. To ensure the tightening of the wheel nuts on every model (alloy & metal wheels).
Application sheet - Multi-spindle tightening unit - DOC.60400
To tighten 6 screws simultaneously without synchronization of a flange on a hot water tank base.
To control the presence of a gasket under the flange.
Application sheet - Pneumatic 4 spindles with fixed 42 mm center distance - DOC.60419
Tightening of 4 screws.
Download the file in pdf
Application sheet - wheel tightening spindle with fixed center distance - DOC.60416
Tightening of the M18 x 1.5 wheel nuts.
Nominal torque 360 Nm and M20 x 1.5.
Nominal torque 500 Nm center distance 275 mm.
