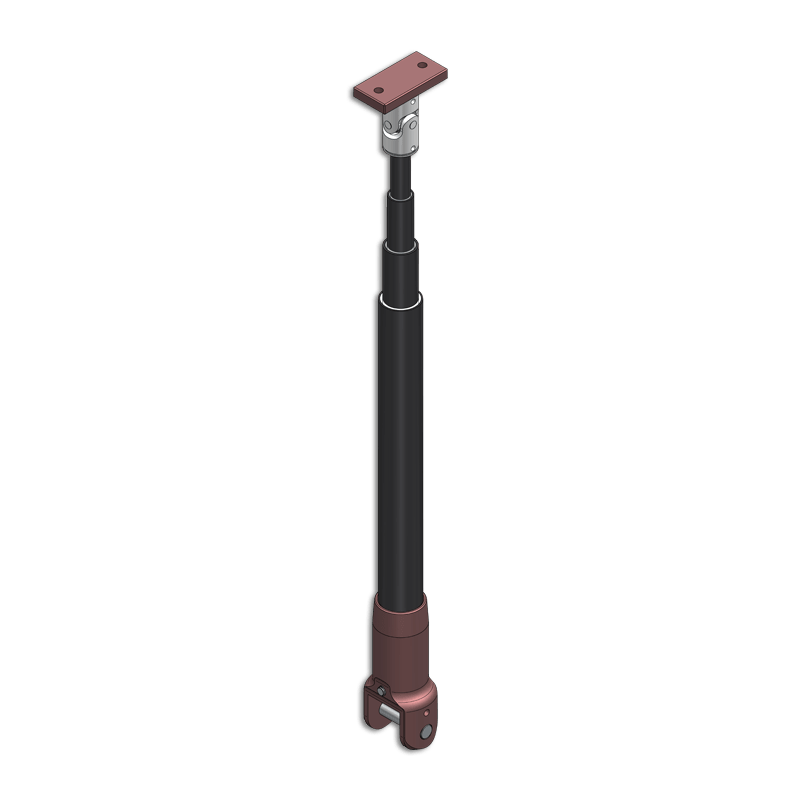

DMFi 300/2000 LS D carbon telescoping torque reaction arm - without clamp

Code 4-5300002

DMFi 300/2000 LS D carbon telescoping torque reaction arm - without clamp

Code 4-5300002

Equipped with an additional carbon tube compared to the standard model, the DMFi 300/2000 LS long stroke reaction telescopic arm is more compact in the rest position than the standard model while maintaining the unparalleled benefits of carbon fiber telescopic arms. It is delivered without a gripping tool.

Technical details

Max torque
300 Nm lbf.in
Max load
8 kg lbs
Installation
Bench mount,
Suspended
Stroke/Working radius
2000 mm inch
Standard tool holder
Optional

Benefits

Ergonomic
  • Compact
  • Easy to install
  • Does not encumber the workflow
Economical
  • Maintenance-free
  • Longer life thanks to carbon fiber
Ease of use
  • No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber

Product description

Suspended on a fixed chassis or rail, the use of the DMFi 300/2000 LS torque reaction telescopic arm is ideal for assembly lines of vehicles, engines and gearboxes.
Many designs of gripping tools are available for vertical, frontal and lateral tightening operations.

Designed with rigid carbon telescopic tubes, DMFi 300/2000 LS neutralizes torque reaction up to 300 Nm and gives you unparalleled benefits. Compact, lightweight, easy to install and maintenance-free, the DMFi 300/2000 LS gives operators flexibility and extreme ease of use.

Resources

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60353 cover

User manual torque reaction arm DMF / DMFi DMF LPC / DMF LAPC series– DOC.60353

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
