DMFi 70/3000 D+ carbon telescoping torque reaction arm - without clamp
Code 4-5300814
DMFi 70/3000 D+ carbon telescoping torque reaction arm - without clamp
Code 4-5300814
Designed with rigid inverted carbon telescopic tubes, DMFi 70/3000 neutralizes torque reaction up to 70 Nm and gives you unparalleled benefits. Compact, lightweight, easy to install and maintenance-free, DMFi 70/3000 gives operators flexibility and extreme ease of use. It is delivered without a gripping tool.
Technical details
Max torque
70 Nm lbf.in
Max load
8 kg lbs
Installation
Bench mount,
Suspended
Stroke/Working radius
3000 mm inch
Standard tool holder
Optional
Benefits
Ergonomic
- Compact
- Easy to install
- Does not encumber the workflow
Economical
- Maintenance-free
- Longer life thanks to carbon fiber
Ease of use
- No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber
Product description

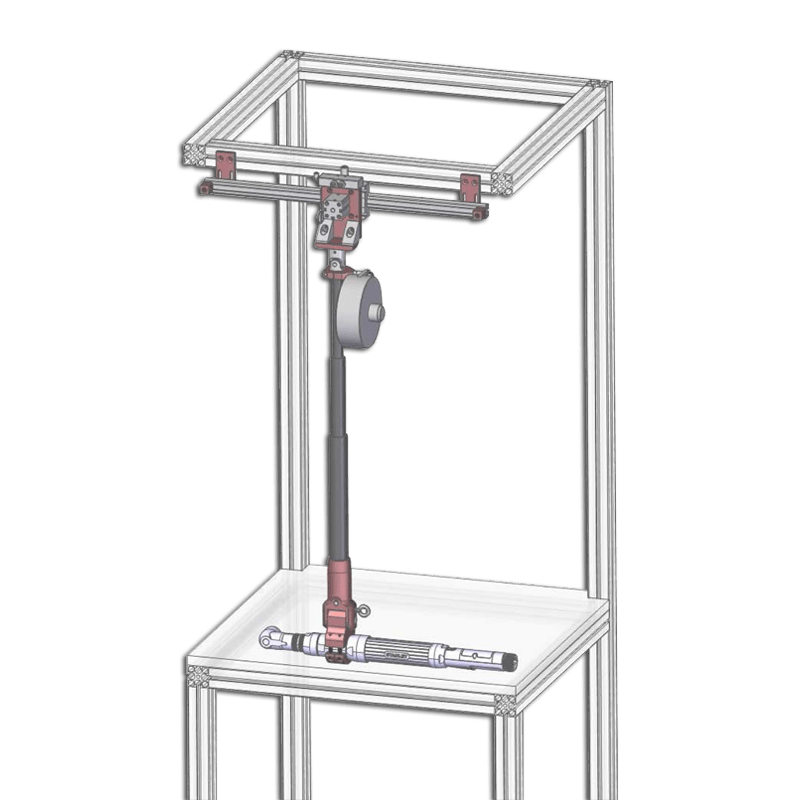

Suspended on a fixed chassis or rail, the use of the DMFi 70/3000 torque reaction arm is ideal for assembly lines of vehicles, engines or gearboxes.
Many designs of gripping tools are available for vertical, frontal and lateral tightening operations.
Resources
3Plan
map
3D CAD file - DMFI 70_3000_without_clamp torque reaction arm - 4-5200814
.stp source
Download the file in zip1Commercial documentation
marketing
Catalog torque reaction systems and posi-control systems - DOC.60163
The widest range of reaction arms to meet your various demanding requirements.
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
technical
User manual torque reaction arm DMF / DMFi DMF LPC / DMF LAPC series– DOC.60353
- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes
