DMF 30 LAPC/1500 D posi control carbon telescoping arm

Code 4-5300596

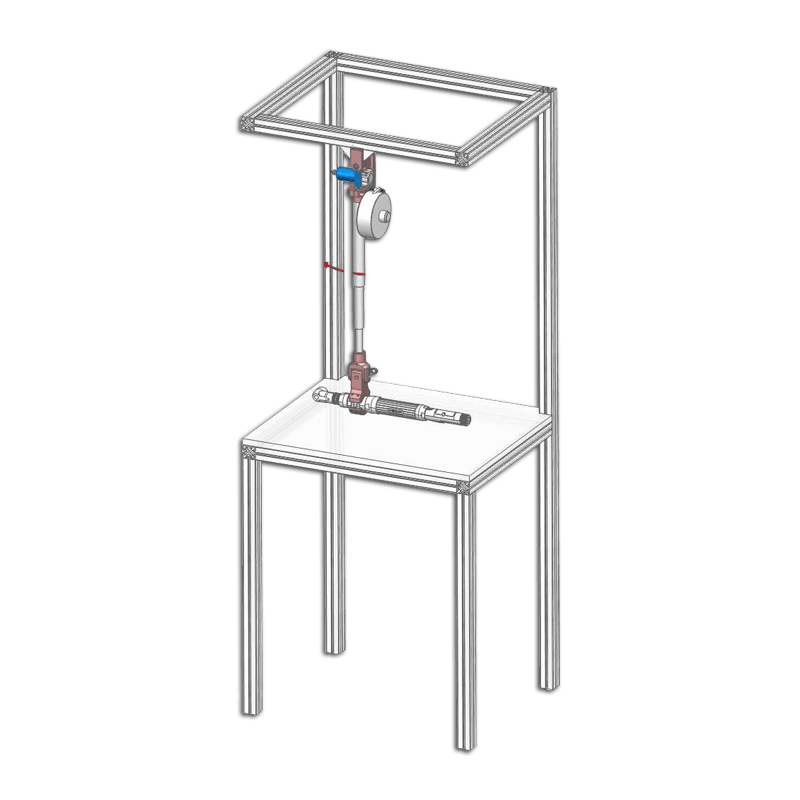

DMF 30 LAPC/1500 D posi control carbon telescoping arm

Code 4-5300596

n addition to the unparalleled benefits of the design of DMF carbon fiber torque telescopic arms, DMF 30 LAPC/1500 is equipped with 2 position encoders: one an angle the second a cable encoder. Your operators therefore necessarily respect the programmed tightening sequences. Each screw is tightened to the right torque and in the right place. No defects.

Technical details
Benefits
Product description
Videos
Associated products
Resources

Technical details

Max torque

30 Nm

Max load

4 kg

Installation

Bench mount,

Suspended

Functionalities

Tool positioning system

Stroke/Working radius

1500 mm

Mini tool diameter

28 mm

Maxi tool diameter

52 mm

Standard tool holder

Benefits

Assembly quality

Respect of programmed tightening sequences and torques
Detection of screw oversights and malfunctions
No defects
Guaranteed perpendicularity of tightening

Ergonomic

Compact
Easy to install
Does not encumber the workflow

Economical

Maintenance-free
Longer life thanks to carbon fiber

Ease of use

No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber

Product description

Thanks to its compactness, the DMF 30 LAPC / 1500 Posi Control carbon telescopic arm is designed to be easily installed on assembly lines that are already very congested.
