DMF 300 LAPC/1500 D posi control carbon telescoping arm

Code 4-5300866

DMF 300 LAPC/1500 D posi control carbon telescoping arm

Code 4-5300866

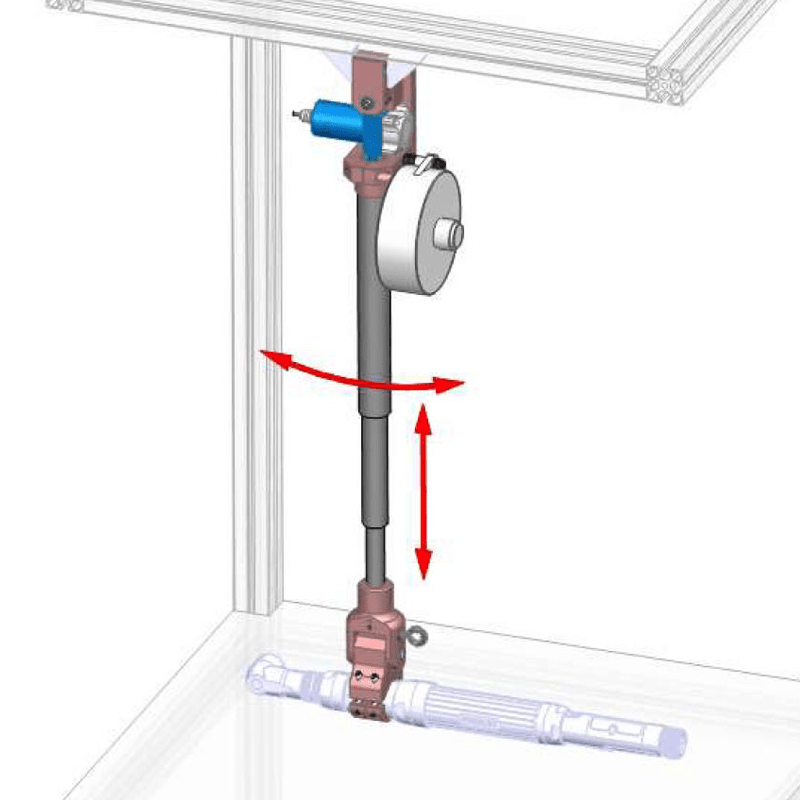

In addition to the unparalleled benefits of the design of DMF carbon fiber torque reaction telescopic arms, DMF 300 LAPC/1500 is equipped with two position encoders: one an angle the second a cable encoder. Your operators therefore necessarily respect the programmed tightening sequences. Each screw is tightened to the right torque and in the right place. No defects.

Technical details

Max torque
300 Nm lbf.in
Max load
10 kg lbs
Installation
Suspended
Functionalities
Tool positioning system
Stroke/Working radius
1500 mm inch
Standard tool holder
P2

Benefits

Assembly quality
  • Respect of programmed tightening sequences and torques
  • Detection of screw oversights and malfunctions
  • No defects
  • Guaranteed perpendicularity of tightening
Ergonomic
  • Compact
  • Easy to install
  • Does not encumber the workflow
Economical
  • Maintenance-free
  • Longer life thanks to carbon fiber
Ease of use
  • No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber

Product description

Thanks to its compactness, the DMF 300 LAPC/1500 Posi Control carbon telescopic arm is designed to be easily installed on assembly lines that are already very congested.
