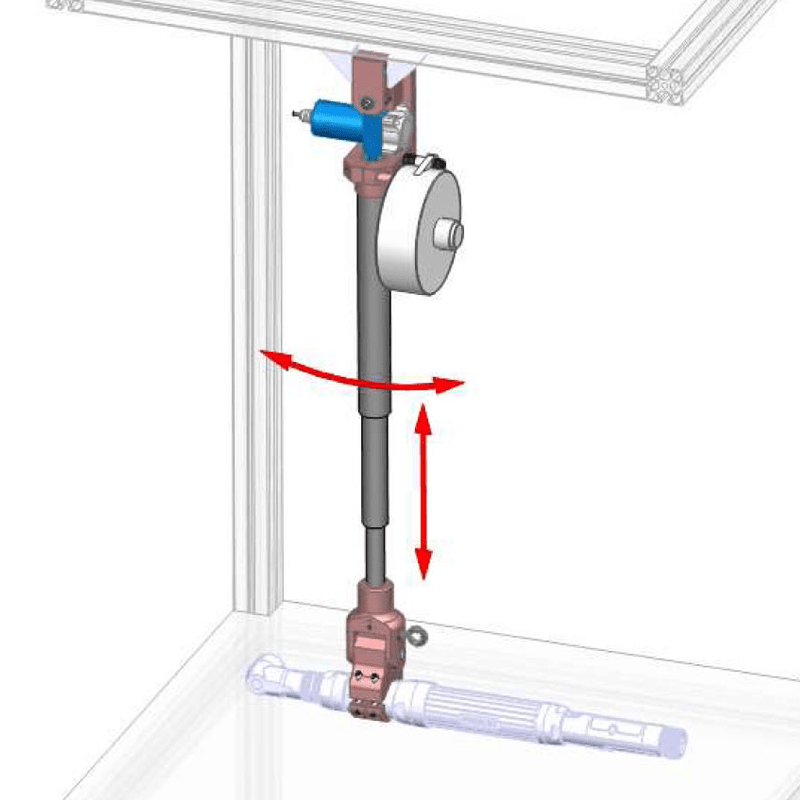

DMF 300 LAPC/2000 D posi control carbon telescoping arm - without clamp

Code 4-5300865

DMF 300 LAPC/2000 D posi control carbon telescoping arm - without clamp

Code 4-5300865

In addition to the unparalleled benefits of the design of DMF carbon fiber telescopic arms, DMF 300 LAPC/2000 is equipped with two position encoders: one an angle the second a cable encoder. Your operators therefore necessarily respect the programmed tightening sequences. Each screw is tightened to the right couple and in the right place.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Max torque

300 Nm lbf.in

Max load

10 kg lbs

Installation

Suspended

Functionalities

Tool positioning system

Stroke/Working radius

2000 mm inch

Standard tool holder

Optional

Benefits

Assembly quality

Respect of programmed tightening sequences and torques
Detection of screw oversights and malfunctions
No defects
Guaranteed perpendicularity of tightening

Ergonomic

Compact
Easy to install
Does not encumber the workflow

Economical

Maintenance-free
Longer life thanks to carbon fiber

Ease of use

No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber

Product description

Thanks to its compactness, the DMF 300 LAPC/2000 Posi Control carbon telescopic arm is designed to be easily installed on assembly lines that are already very congested.
