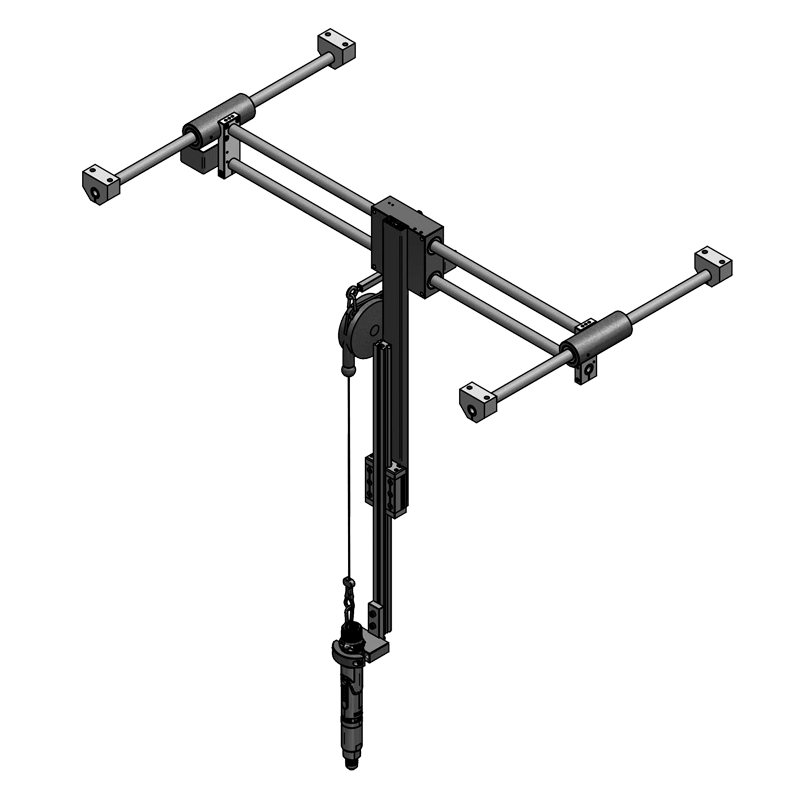

SLIDER 15 cartesian 700 suspended torque reaction arm
SLIDER 15 cartesian 700 suspended torque reaction arm
Suspended at the workstation the SLIDER 15 cartesian 700 arm is very flexible to use. It is ideal for small tightening torques and does not clutter your workstation. The cross rail option increases its range. Several suspended torque reaction arms can be installed at the same workstation without cluttering it.

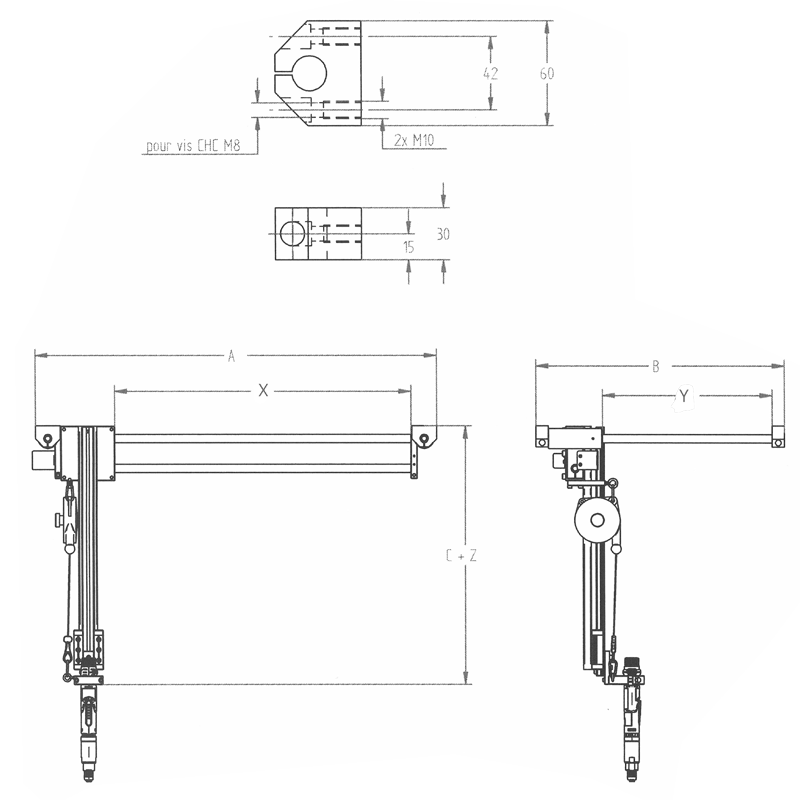

Technical details
Benefits
As flexible as a balancer thanks to its two universal joints
Easy to install and compact, it does not clutter the workstation
Flexible and precise tracking of the production flow thanks to its mounting on a cross rail
Product description
Ideal for vertical tightening up to 15 Nm SLIDER cartesian 700 is the solution to cramped and congested workstations.
Suspended on a fixed chassis or guided via a rail, it frees the workspace.
Easy to install and compact, tightening operations are fluid and operator comfort is optimized.
Connected to a horizontal rail, it becomes the ideal ergonomic solution on an assembly line.
Resources
1Commercial documentation
![Catalog torque reaction systems and posi-control systems - DOC.60163](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
Catalog torque reaction systems and posi-control systems - DOC.60163
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
![60354](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60354-min.png?itok=e59YIG0r)
Torque reaction arm suspended SLIDER series user manual – MU.60354
- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes
