SLIDER 20 suspended torque reaction arm
Code 4-5283149
SLIDER 20 suspended torque reaction arm
Code 4-5283149

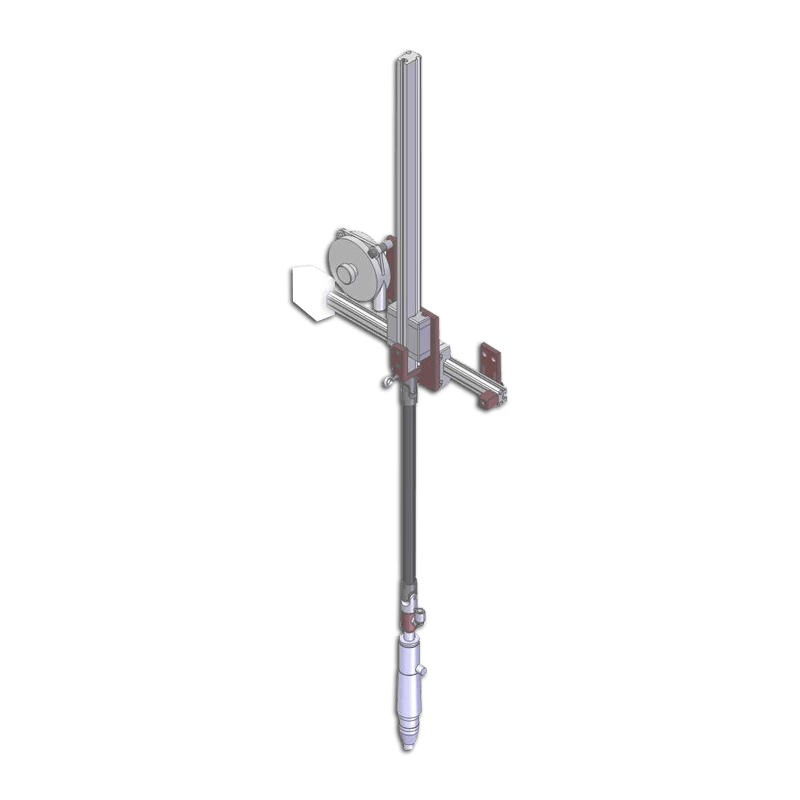

Suspended at the workstation the SLIDER 20 arm is very flexible to use. It is ideal for small tightening torques and does not clutter your workstation. The cross rail option increases its range. Several suspended torque reaction arms can be installed at the same workstation without cluttering it.
Technical details
Max torque
20 Nm lbf.in
Max load
2.2 kg lbs
Installation
Suspended
Stroke/Working radius
100 mm inch
Vertical stroke
450 mm inch
Standard tool holder
Without - G 1/4 clamping
Benefits
Comfort
- As flexible as a balancer thanks to its two universal joints
Ergonomics
- Easy to install and compact, it does not clutter the workstation
Productivity
- Flexible and precise tracking of the production flow thanks to its mounting on a cross rail
Product description
Ideal for vertical tightening up to 20 Nm SLIDER 20 is the solution to cramped and congested workstations. Suspended on a fixed chassis or guided via a rail, it frees the workspace.
Easy to install and compact, tightening operations are fluid and operator comfort is optimized. Connected to a horizontal rail, it becomes the ideal ergonomic solution on an assembly line.
Resources
3Plan
map
1Commercial documentation
marketing
Catalog torque reaction systems and posi-control systems - DOC.60163
The widest range of reaction arms to meet your various demanding requirements.
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
technical
Torque reaction arm suspended SLIDER series user manual – MU.60354
- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes
