SLIDER BA 100 R suspended torque reaction arm
SLIDER BA 100 R suspended torque reaction arm
The SLIDER BA 100 R torque reaction arm combines the rigidity, increased range and versatility of the BA ... R articulated arms with the agility and compactness of the SLIDER suspension arm concept. Suspended at the station, it optimizes user comfort, versatility of execution and does not encumber the assembly workflow.
Technical details
Benefits
- Suspended above the station it does not disrupt the workflow
- Quick and precise execution of the tightening thanks to its vertical stroke and articulated arm
- Flexible and precise production flow tracking thanks to its mounting on a cross rail
Product description

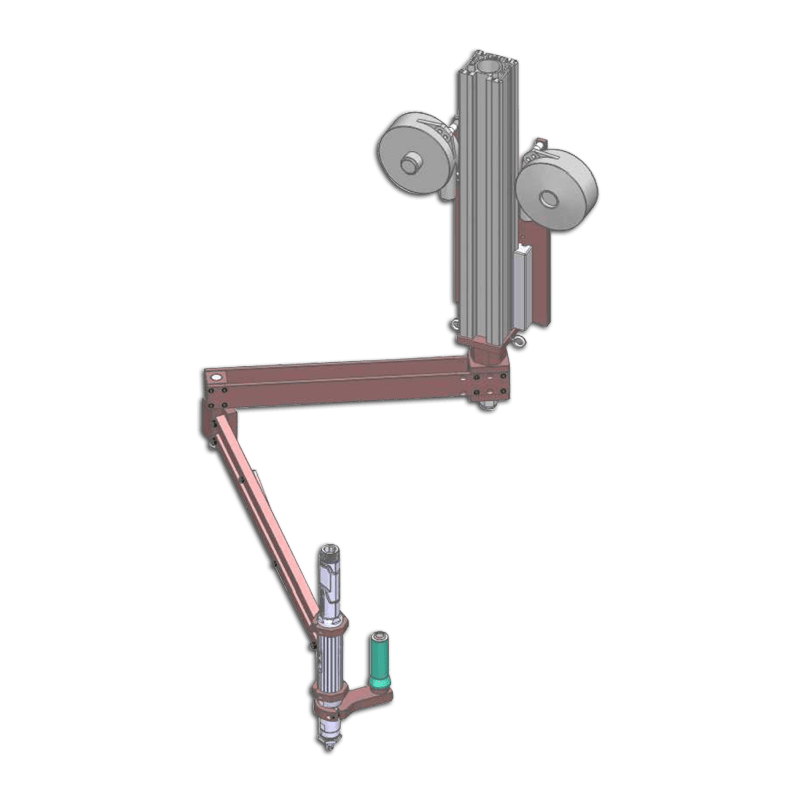

Compact and articulated, the SLIDER BA 100 R torque reaction arm is suspended above the workstation.
Articulated, it does not disrupt the workflow or the operator’s tasks.
It remains at your fingertips for fast gripping of the screwdriver and precise tightening without torque reaction.
Combined with an optional cross rail, its range is multiplied.
Several SLIDER suspension arms can be mounted on the same rail to perform all the desired tightening operations.
Resources
3Plan
1Commercial documentation
Catalog torque reaction systems and posi-control systems - DOC.60163
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
Torque reaction arm suspended SLIDER series user manual – MU.60354
- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes
