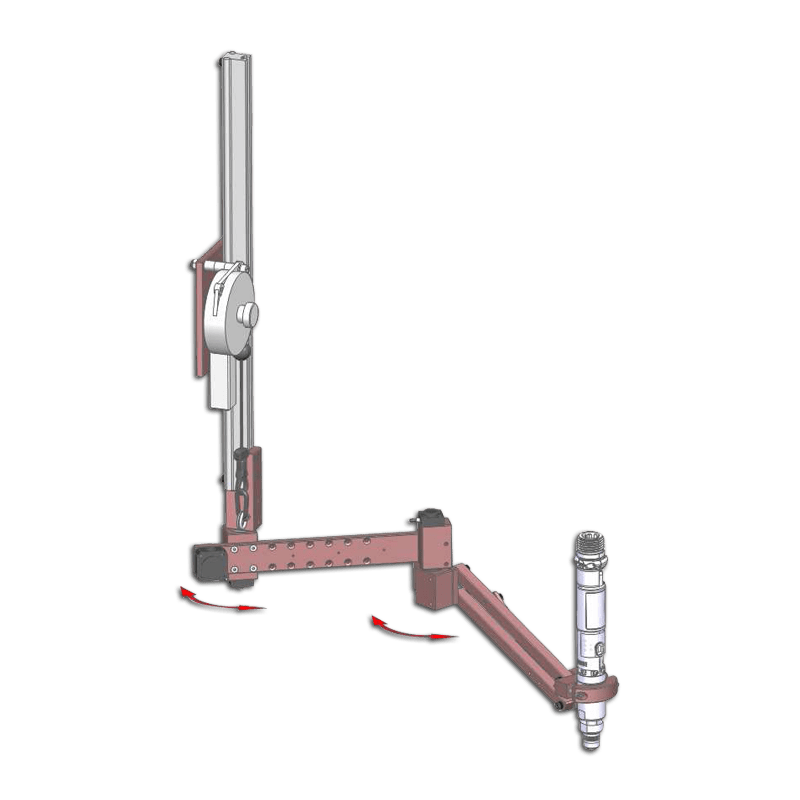

SLIDER BA 100 RPC posi control suspended torque reaction arm

Code 4-5201083

SLIDER BA 100 RPC posi control suspended torque reaction arm

Code 4-5201083

The SLIDER BA 100 RPC arm combines the rigidity and flexibility of the BA ... R articulated arm with the agility and compactness of the SLIDER suspension arm concept. As it is equipped with two X and Y absolute position encoders, the operator necessarily complies with the tightening sequences and the programmed tightening torques.

Contact us

Technical details

Max torque
100 Nm lbf.in
Max load
5 kg lbs
Installation
Suspended
Functionalities
Verticality,
Tool positioning system
Stroke/Working radius
730 mm inch
Vertical stroke
420 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Standard

Benefits

Assembly quality
  • Respect of programmed sequences and tightening torques
  • Detection of screw oversights and malfunctions
  • No defects
  • Perpendicularity of the screwing assured
Ergonomics
  • Suspended above the workstation, it does not clutter it
Comfort
  • Elimination of Musculoskeletal Disorders (MSDs)
  • Balancing the tool
  • Flexibility thanks to the articulated arm
  • Visual guidance with the DPC Touch interface

Product description

Suspended at the workstation, it optimizes user comfort, versatility of operation and does not disrupt the workflow.

Associated products

Resources

3Plan

Thumbnail

3D CAD file - Slider BA 100 RPC torque reaction arm - 4-5201083

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60354

Torque reaction arm suspended SLIDER series user manual – MU.60354

- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
