SLIDER BA 12 RPC posi control suspended torque reaction arm

Code 4-5201078

SLIDER BA 12 RPC posi control suspended torque reaction arm

Code 4-5201078

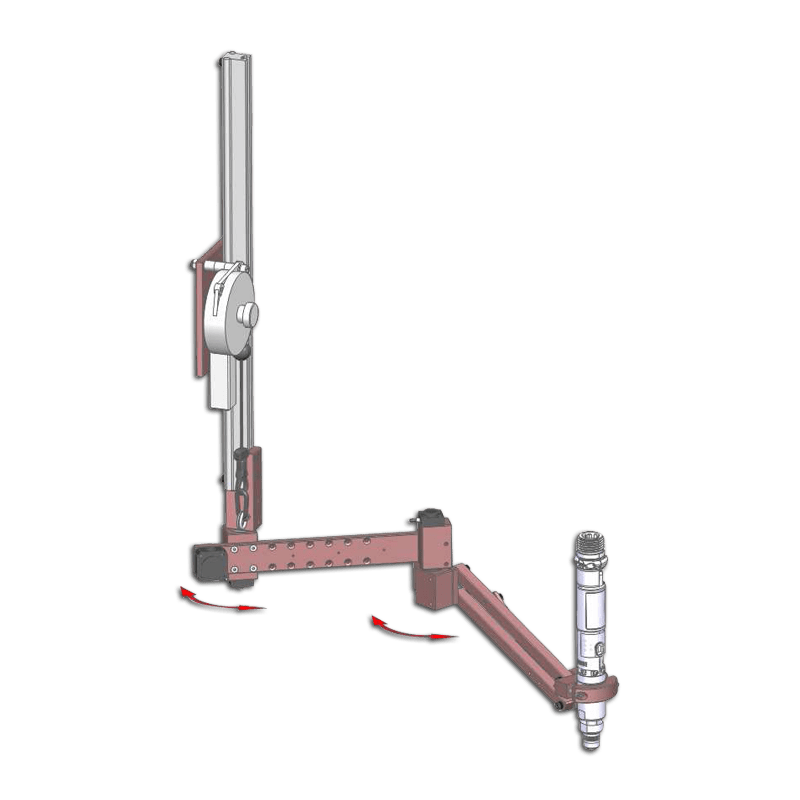

The SLIDER BA 12 RPC arm combines the rigidity and flexibility of the BA ... R articulated arm with the agility and compactness of the SLIDER suspension arm concept. As it is equipped with two X and Y absolute position encoders, the operator necessarily complies with the tightening sequences and the programmed tightening torques.

Contact us

Technical details

Max torque
12 Nm lbf.in
Max load
1.2 kg lbs
Installation
Suspended
Functionalities
Verticality,
Tool positioning system
Stroke/Working radius
450 mm inch
Vertical stroke
420 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Standard

Benefits

Assembly quality
  • Respect of programmed sequences and tightening torques
  • Detection of screw oversights and malfunctions
  • No defects
  • Perpendicularity of the screwing assured
Ergonomics
  • Suspended above the workstation, it does not clutter it
Comfort
  • Elimination of Musculoskeletal Disorders (MSDs)
  • Balancing the tool
  • Flexibility thanks to the articulated arm
  • Visual guidance with the DPC Touch interface

Product description

Suspended at the workstation, it optimizes user comfort, versatility of operation and does not disrupt the workflow
