MDH 2616-A current control electric screwdriver
MDH 2616-A current control electric screwdriver

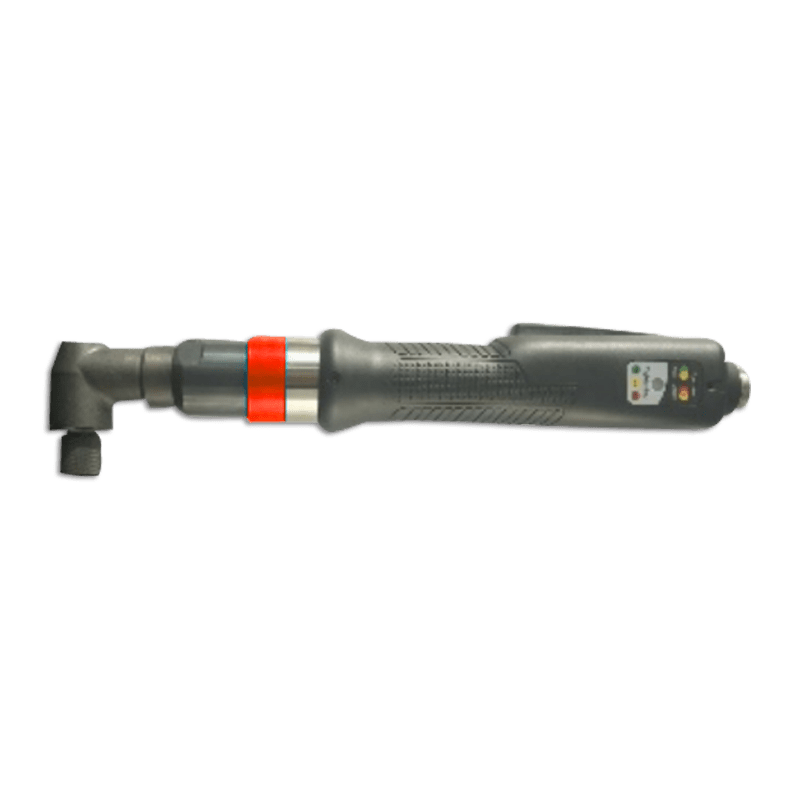

Compact and ergonomic, the MDH2616-A angle screwdriver is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10%). tolerance).
Technical details
Benefits
- 3% precision regardless of tightening elasticity
- Maxxon Brushless Motor made in Switzerland
- Ergonomic handle
- Quiet motor
- Traceability of tightening torques via Ethernet
- Visualization of the curves
- Anti-error system
Product description
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Associated products

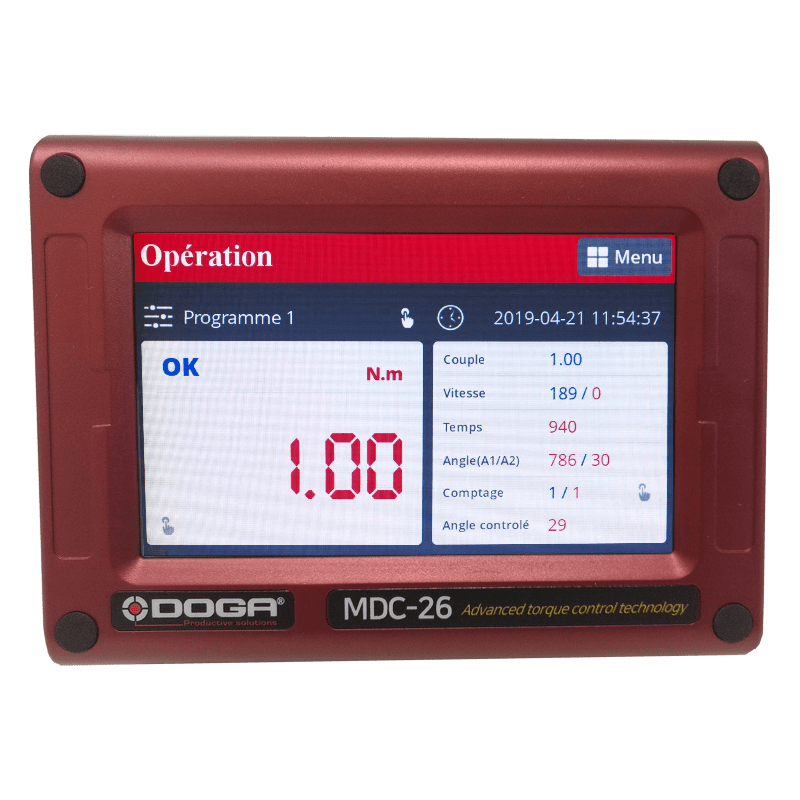

MDC controller
MDC-32 v2 model: code 4-1050666
ParaMon-Pro X controller
Resources
1Commercial documentation
![60303](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/60303-min.png?itok=55BnoNA_)
Torque and angle control screwdrivers - MD series - DOC.60303
- Straight screwdrivers - MD serie
- Pistol screwdrivers - MDP serie
- Angle nutrunners - MDH serie
- Spindle for automation - MDA serie
- MDC controllers
- ParaMon free PC software
- Accessories and calibration
- Additional products
- Our services
4Software
![](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
ParaMon softwares
For BM, BMT, MDCv2, MDC Mini and MDTC series
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database – dedicated to torque and angle tools and ParaMon-Pro X controllers.
- ParaMon Unified:
PC software for parameters setup and real time monitoring – only for Torque and Angle tools.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product.
Files version:
- BM_FW_v1.33.7+XML_v1.8
- BMT_FW_v1.43.8+XML_v1.9
- MDC22_MINI_FW_v3.00.8+XML_v1.8
- MDCv2_26&32_FW_v2.32.2+XML_v1.8
- MDTC38_Normal_FW_v1.33.9+XML_v1.12
- ParaMon III_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- ParaMon_Unified_v1.00.5_20220526
- ParaMon Unified user manual - DOC.60343
- ParaMon XML vs Firmware 2407 - DOC.60205
2Technical documentation
![COM MODBUS user manual - MU.60307](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
![60428](/sites/doga/files/styles/thumbnail_medium/public/uploads/images/thumbnails/couv-60428-min.png?itok=n6kHbIJ8)
COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
![](/sites/doga/files/styles/thumbnail_medium/public/media-icons/generic/generic.png?itok=9ioYv7xd)
Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342
- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard
