MDH 3204-A current control electric screwdriver

Code P104938

MDH 3204-A current control electric screwdriver

Code P104938

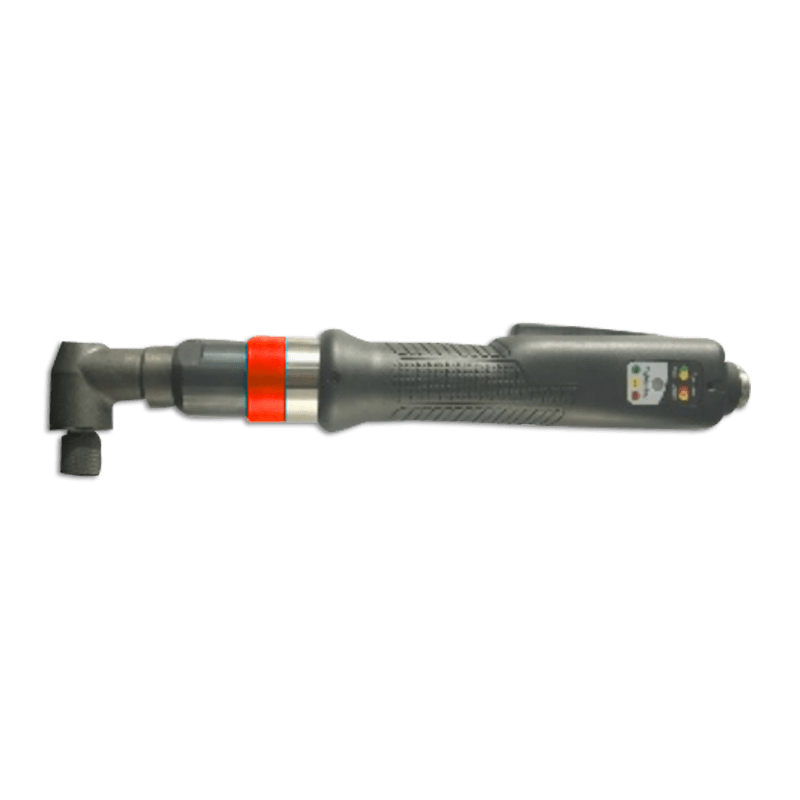

Compact and ergonomic, the MDH3204-A angle screwdriver is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10%). tolerance).

Contact us

Technical details

Type of screwdriver
Current control electric screwdriver
Min Torque
0.4 Nm lbf.in
Max Torque
3.9 Nm lbf.in
Min speed rotation
150 tr/min rpm
Maxi speed rotation
1500 tr/min rpm
Drive Size
1/4" F/Hex
Weight
1.26 kg lbs
Shape
Angle head
Starting system
Lever
Power
Electric
Functionalities
ESD,
Torque programmable,
Counting,
Network communication
Suitable controller

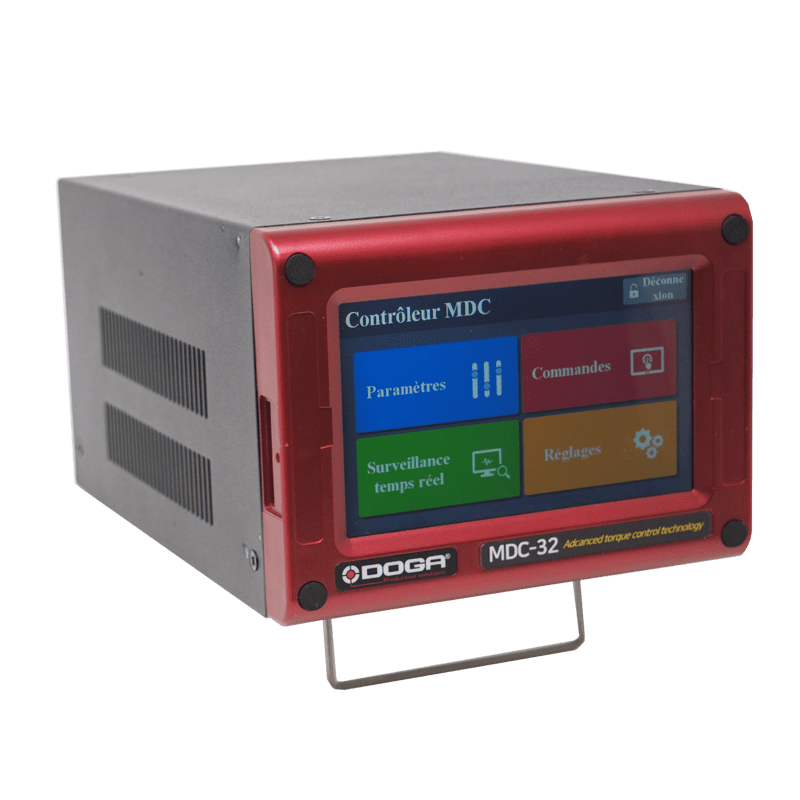

MDC-32

Benefits

Quality of manufacture
  • 3% precision regardless of tightening elasticity
Robustness
  • Maxxon Brushless Motor made in Switzerland
Comfort
  • Ergonomic handle
  • Quiet motor
Industry 4.0
  • Traceability of tightening torques via Ethernet
  • Visualization of the curves
  • Anti-error system

Product description

Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.

Associated products

Resources

1Commercial documentation

60303

Torque and angle control screwdrivers - MD series - DOC.60303

  • Straight screwdrivers - MD serie
  • Pistol screwdrivers - MDP serie
  • Angle nutrunners - MDH serie
  • Spindle for automation - MDA serie
  • MDC controllers
  • ParaMon free PC software
  • Accessories and calibration
  • Additional products
  • Our services
Download the file in pdf

4Software

ParaMon software

For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.

Including:

  • ParaMon III:

PC software for network tools management, setup and backup via an integrated database.


  • Controller firmware and LCD firmware

Update compatible with any actual tool and controller (except MDCv1 legacy product).



Files version:

  • BM_FW_v1.34.0+XML_v1.9
  • BMT_FW_v1.44.0+XML_v1.10
  • MDC22_MINI_FW_v3.00.9+XML_v1.9
  • MDCv2_26&32_FW_v2.32.4+XML_v1.9
  • MDTC38_Normal_FW_v1.33.9+XML_v1.12
  • ParaMon III_v3.00.8_20240517
  • ParaMon III user manual - DOC.60505
  • ParaMon XML vs Firmware - DOC.60205
Download the file in zip

2Technical documentation

COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455

-    Com Protocole MODBUS MDv2 MDT – DOC.60430
-    Modbus MDCv2 address and function – DOC.60454
-    Modbus MDTC address and function – DOC.60455

Download the file in zip
60428

COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428

1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages

Download the file in pdf

Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342

- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard

Download the file in pdf
