MDA 3204-A/TBC current control electric fixtured spindle

Code P105773

MDA 3204-A/TBC current control electric fixtured spindle

Code P105773

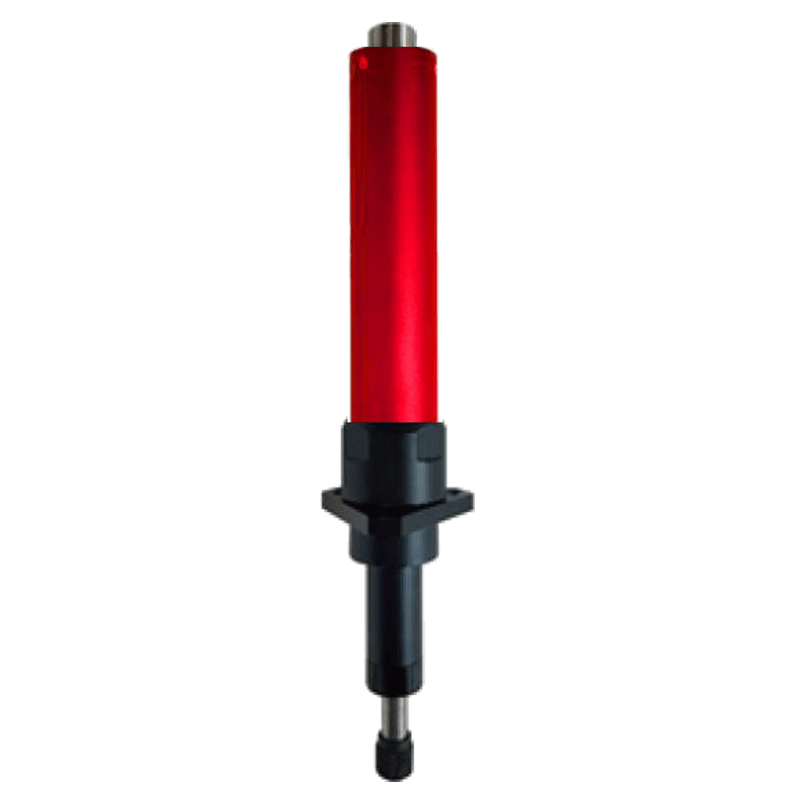

Compact and easy to integrate, the MDA 3204-A / TBC telescopic tightening spindle is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10% tolerance).

Contact us

Technical details

Type of screwdriver
Current control electric fixtured spindle
Min Torque
0.4 Nm lbf.in
Max Torque
3.9 Nm lbf.in
Min speed rotation
150 tr/min rpm
Maxi speed rotation
1500 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.78 kg lbs
Shape
Fixtured spindle
Starting system
Remote
Power
Electric
Functionalities
ESD,
Torque programmable,
Counting,
Network communication
Suitable controller

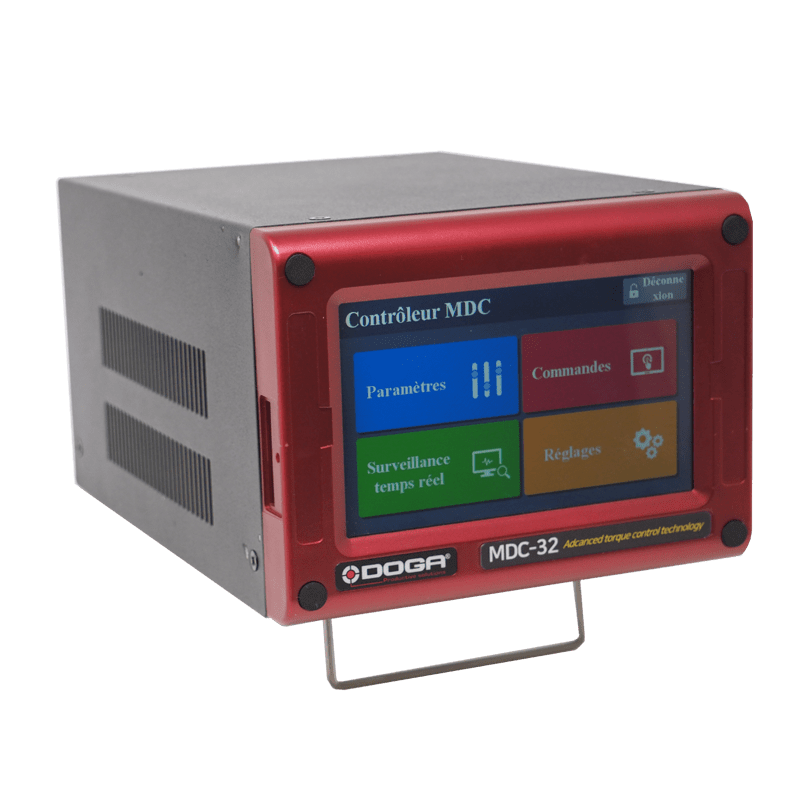

MDC-32

Benefits

Quality of manufacture
  • 3% precision regardless of tightening elasticity
Robustness
  • Maxxon Motor made in Switzerland
Easy integration
  • Flange mounting and aluminum body
Industry 4.0
  • Traceability of tightening torques via Ethernet
  • Visualization of the curves
  • Anti-error system

Product description

Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
The telescopic stroke is 20 mm.
It is delivered without a tool cable.
