MDTA 3245-Q 3/8 transducerized electric fixtured spindle
MDTA 3245-Q 3/8 transducerized electric fixtured spindle

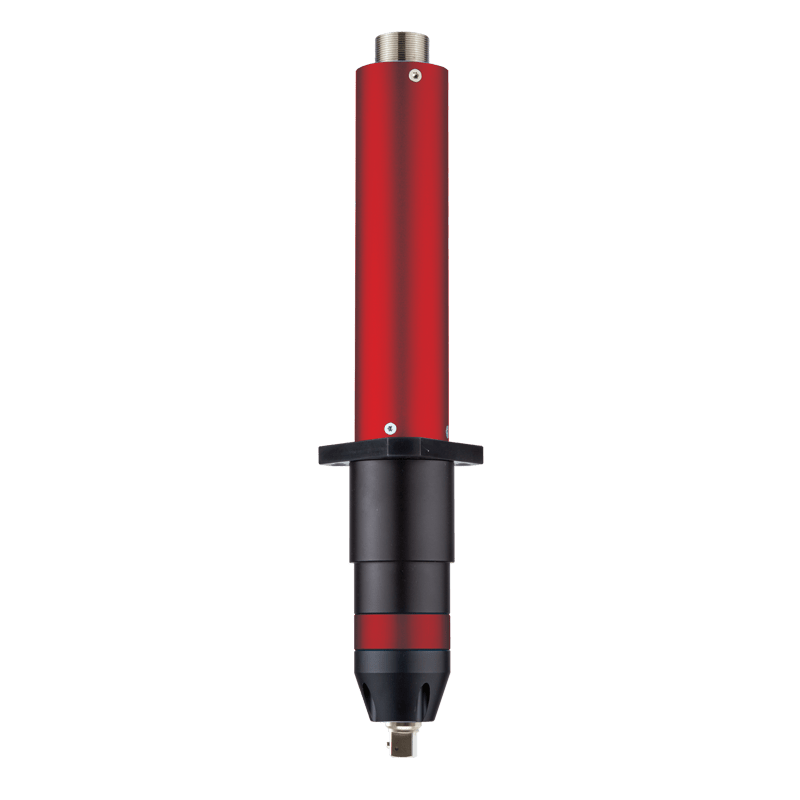

Suitable with the Industry 4.0 requirements, the MDTA3245-Q 3/8 fixtured spindle integrates a torque and angle transducer.
Compact and and easy to integrate, it is designed for high-speed tightening operations requiring precision and traceability of tightening torques.
Technical details
Benefits
• Built-in torque transducer for Class A torque accuracy.
• High efficiency gearbox thanks to the bearing guide
• Quiet motor
• Detailed graph monitoring
• Anti-error monitoring
Product description

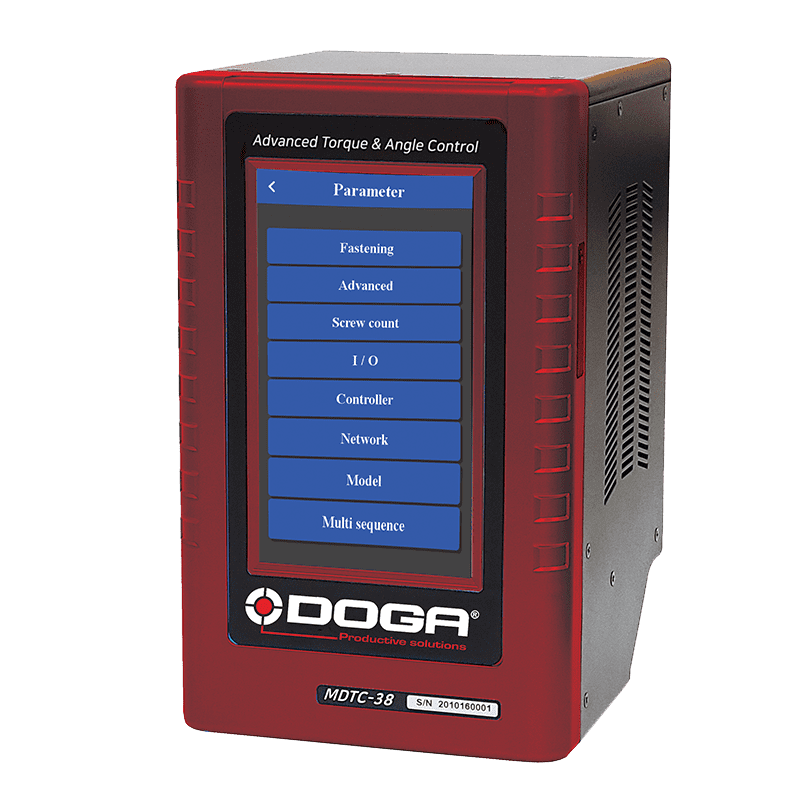

This spindle is powered and controlled by the MDTC-38 controller.
This dedicated controller is easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies and 15 models of automatic multi-program sequences with up to 20 customizable steps are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The tightening curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Its interface is multilingual.
The tool is delivered with a calibration test certificate on 3 torque values: 20%, 50% and 100% of the max torque.
Screwdriver cable is not included.
Videos
Associated products
MDTC controller
This controller is dedicated to MDT series transducerized torque and angle tools.
ParaMon-Pro X controller
- Real-time monitoring: display graphs and results
DPC Touch: sequencing and process monitoring interface
BS-5C color ID bit tray
Air vacuum system & sleeves
By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
Resources
1Commercial documentation
Transducerized tools - MDT series - DOC.60408
- Main features
- Model specifications
- Technical details
- MDTC controller
- Controller communication and display
- Torque and angle tightening strategies
- Models and data communication
- Free ParaMon software
- Stand and bracket
- Accessories
4Software
ParaMon software
For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product).
Files version:
- BM_FW_v1.34.0+XML_v1.9
- BMT_FW_v1.44.0+XML_v1.10
- MDC22_MINI_FW_v3.00.9+XML_v1.9
- MDCv2_26&32_FW_v2.32.4+XML_v1.9
- MDTC38_Normal_FW_v1.33.9+XML_v1.12
- ParaMon III_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- ParaMon XML vs Firmware - DOC.60205
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
MDT series instructions manual - DOC.60429
- Safety rules
- Product
- Main features
- MDT screwdrivers
- MDT screwdriver cable
- Controller MDTC
- Operation
- Firmware update
- Torque calibration and compensation
- Error code
- Web server
- Register list summary
- Com protocols
- Maintenance
- Standards
