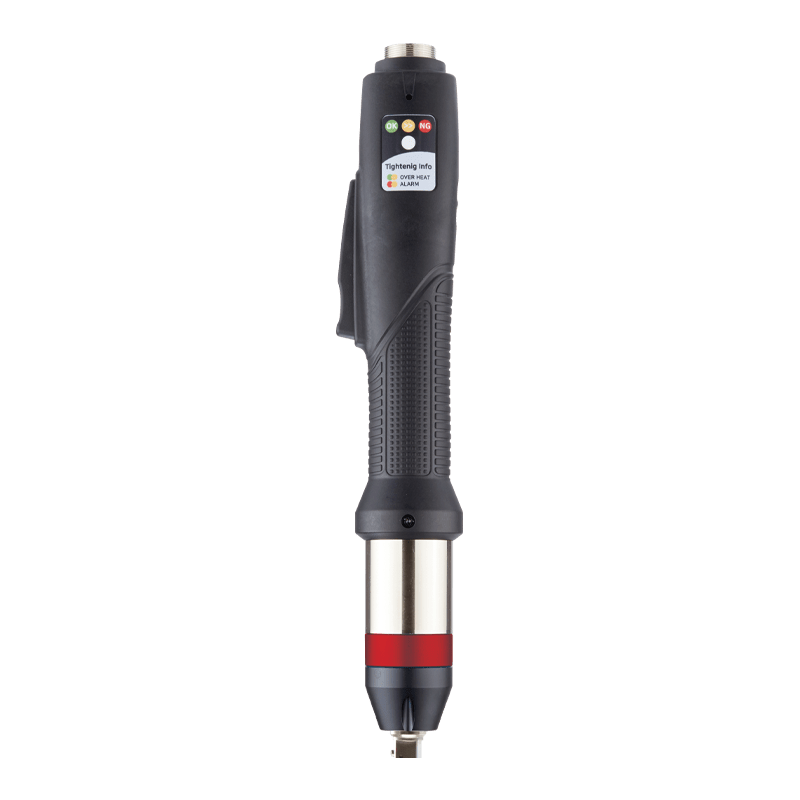

MDT3224-Q/L 3/8 straight transducerized electric screwdriver
MDT3224-Q/L 3/8 straight transducerized electric screwdriver
Suitable with the Industry 4.0 requirements, the MDT 3224-Q/L 3/8 straight screwdriver integrates a torque and angle transducer.
Lightweight and ergonomic, it is designed for vertical high-speed tightening operations requiring precision and traceability of tightening torques.
Technical details
Benefits
• Built-in torque transducer for Class A torque accuracy.
• High efficiency gearbox thanks to the bearing guide
• Quiet motor
• Detailed graph monitoring
• Anti-error monitoring
Product description

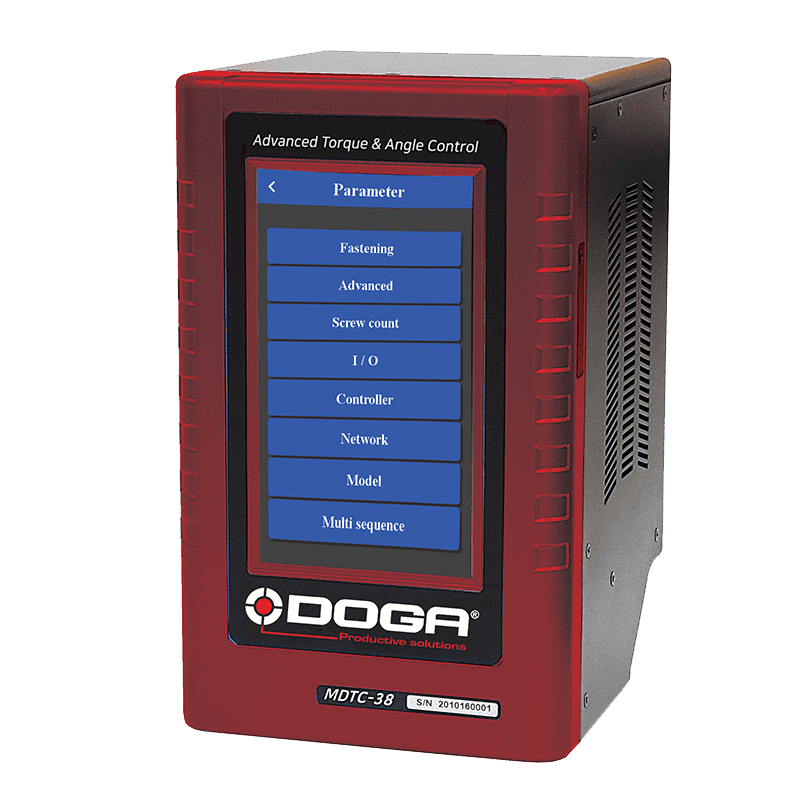

his screwdriver is powered and controlled by the MDTC-38 controller.
This dedicated controller is easy to adjust and allows you to optimize your operating speed thanks to its automatic programming mode via its color touch screen or PC software.
15 presets with torque / angle or angle / torque tightening strategies and 15 process sequence managing models with up to 20 customizable steps are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The tightening curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Displayed menus are multilingual.
The tool is delivered with a calibration test certificate on 3 torque values: 20%, 50% and 100% of the max torque.
Screwdriver cable is not included.
