Torque tester
Torque tester
DOGA EZ V4 torque testers incorporate a static torque sensor to control the torque of shut-off screwdrivers, hydro-voltage screwdrivers of all types as well as torque wrenches.
Benefits
- DOGA EZ V4 torque testers incorporate an internal static torque sensor to control shut-off screwdrivers, torque wrenches
- Static or dynamic external brush sensors can be connected to EZ torque testers to cover all the tools including pulsed ones (hydro mode)
- EZ torque testers are equipped with statistical functions including Cm and Cmk indicators according to the AFNOR standard
- The EZ torque tester can be placed on a horizontal worktop or fixed on a vertical plane by the side notches
- The chassis and the facade of the testers are made of steel and they are equipped with anti-skid pads
Product description
EZ V4 torque testers cover a torque range of 0.2 to 20 Nm.
The range consists of 3 types of torque tester:

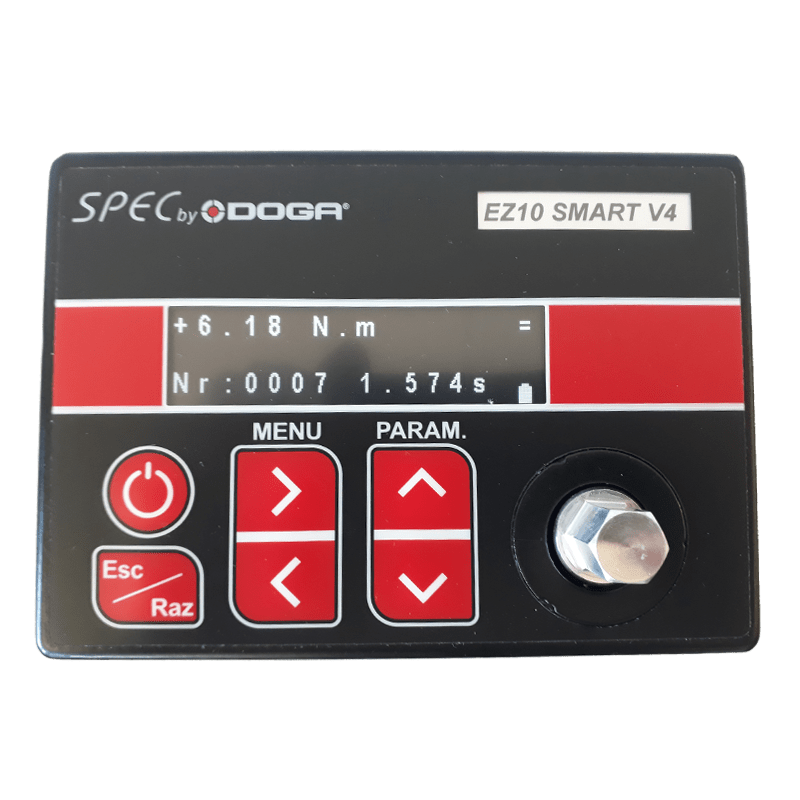

The EZ2 V4 Torque Tester
It covers a static torque range of 0.2 to 2 Nm (+/- 2% of the measuring range)
The EZ10 V4 Torque Tester
It covers a static torque range of 1 to 10 Nm (+/- 1% of the measuring range)
The EZ20 V4 Torque Tester
It covers a static torque range of 2 to 20 Nm (+/- 1% of the measuring range)
• Mains operation (power cord included) and battery
• Battery life of 12 hours
• Memorization of 500 torque measurements timestamped
• Ability to indicate statistics on a selected sample of values
• Several modes of measurement are selectable according to the material to be tested: tightening (clockwise and counter-clockwise), initial peak, hydro (tightening and untightening)
• An external sensor input is used to connect static or dynamic brush sensors, which will control an enlarged torque range (low or high capacity sensors)
• Connect to the PC with a supplied USB cable that will allow you to recharge the EZ V4 tester and transfer the results via HyperTerminal.

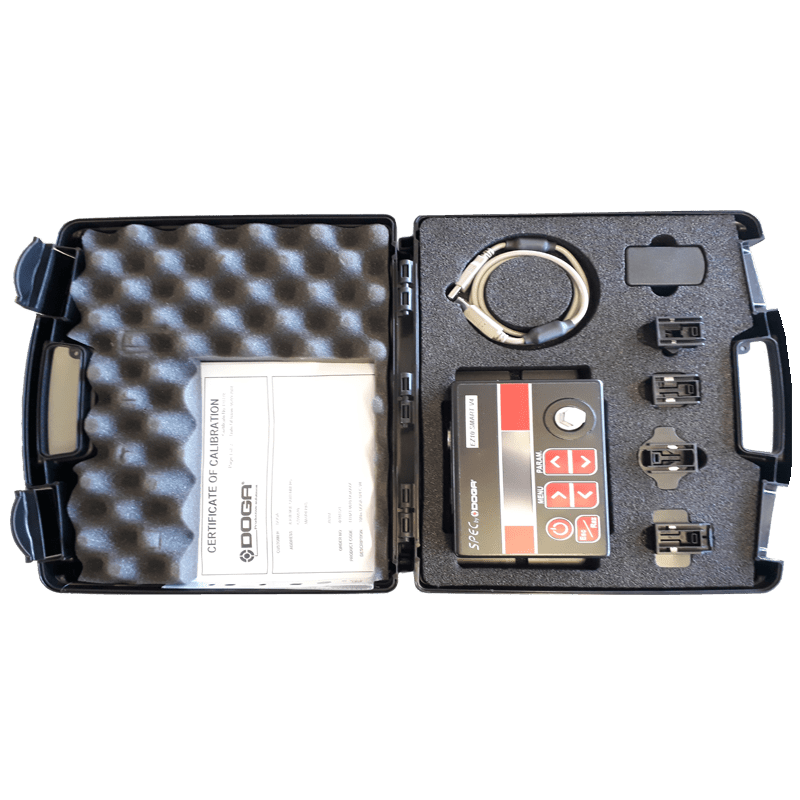

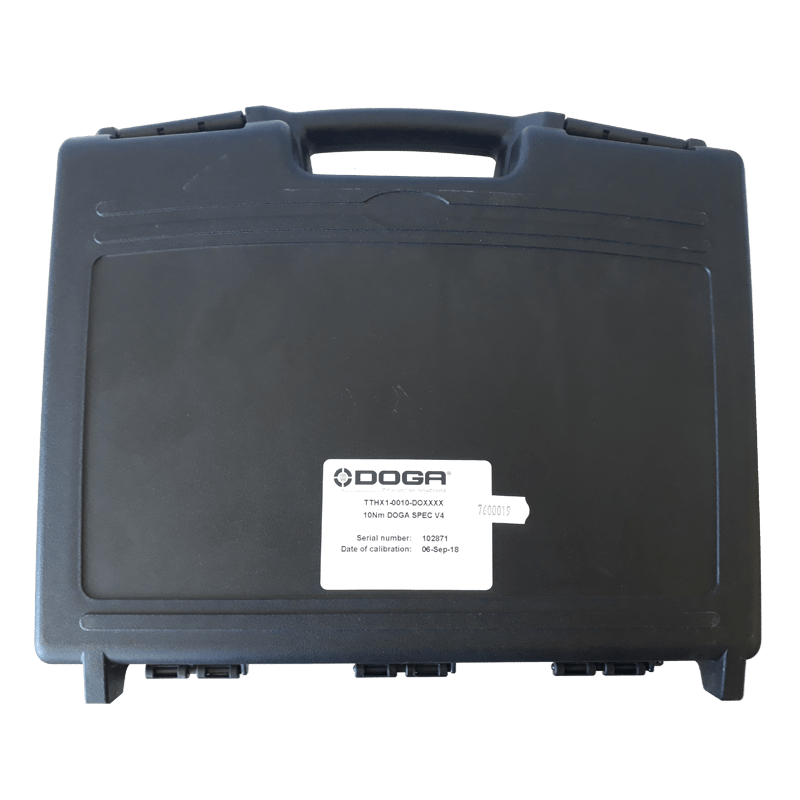

• Supplied in a carrying case containing USB link cable, power supply transformer, power outlets and calibration certificate
