BA 10 G articulated torque reaction arm

Code 4-5201013

BA 10 G articulated torque reaction arm

Code 4-5201013

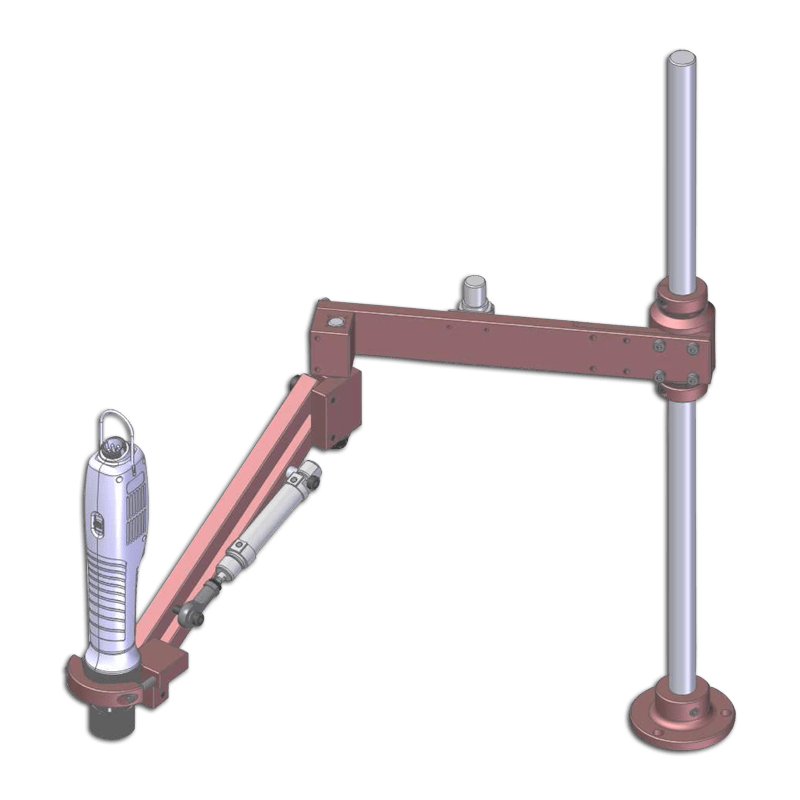

Designed to be easily installed on your worktops, the articulated geometry of the BA 10 G torque reaction arm gives you both optimized work coverage and high working flexibility thanks to its downward assistance kit. Compatible with straight, pistol and angle drivers, you enjoy great versatility of use.

Technical details

Max torque
10 Nm lbf.in
Max load
1 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
470 mm inch
Vertical stroke
170 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Straight

Benefits

Comfort
  • No movement inertia thanks to articulated geometry
  • Easy and precise insertion of the screw thanks to the pneumatic cylinder
  • Suppression of MSD
  • Balanced tool
  • Zero gravity
Productivity
  • Increased operator speed thanks to the flexibility of the downward kit and the articulated geometry
