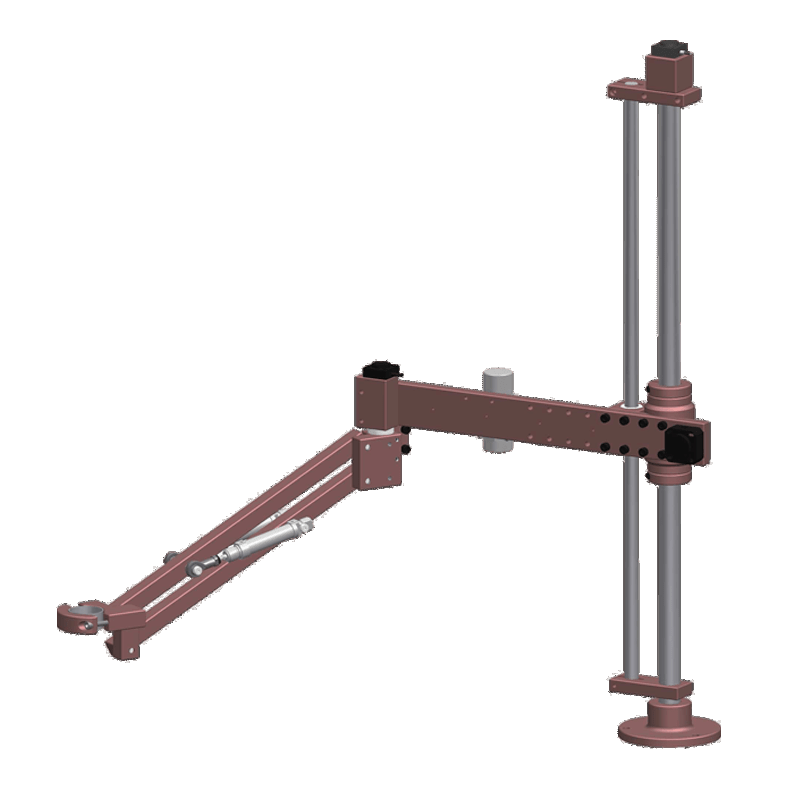

BA 10 GPC/600 posi control articulated torque reaction arm
Code 4-5250501
BA 10 GPC/600 posi control articulated torque reaction arm
Code 4-5250501
The BA 10 GPC/600 torque reaction arm gives you both optimized work coverage and high working flexibility thanks to its downward assistance kit. It is equipped with two X and Y absolute position encoders, so that your operators necessarily respect the programmed tightening sequences and torques.
Technical details
Max torque
10 Nm lbf.in
Max load
1 kg lbs
Installation
Bench mount
Functionalities
Verticality,
Tool positioning system
Stroke/Working radius
600 mm inch
Vertical stroke
170 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Straight
Benefits
Assembly quality
- Respect of programmed tightening sequences and torques
- Detection of screw oversights and malfunctions
- No defects
- Guaranteed perpendicularity of tightening
Comfort
- No movement inertia thanks to articulated geometry
- Easy and precise insertion of the screw thanks to the pneumatic cylinder
- Suppression of MSD
- Balanced tool
- Zero gravity
Productivity
- Increased operator speed thanks to the flexibility of the downward kit and the articulated geometry
Associated products
DPC Touch: sequencing and process monitoring interface
Code 4-1290026 (DPC Touch V2)
Resources
1Commercial documentation
marketing
Catalog torque reaction systems and posi-control systems - DOC.60163
The widest range of reaction arms to meet your various demanding requirements.
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
technical
User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351
- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes
