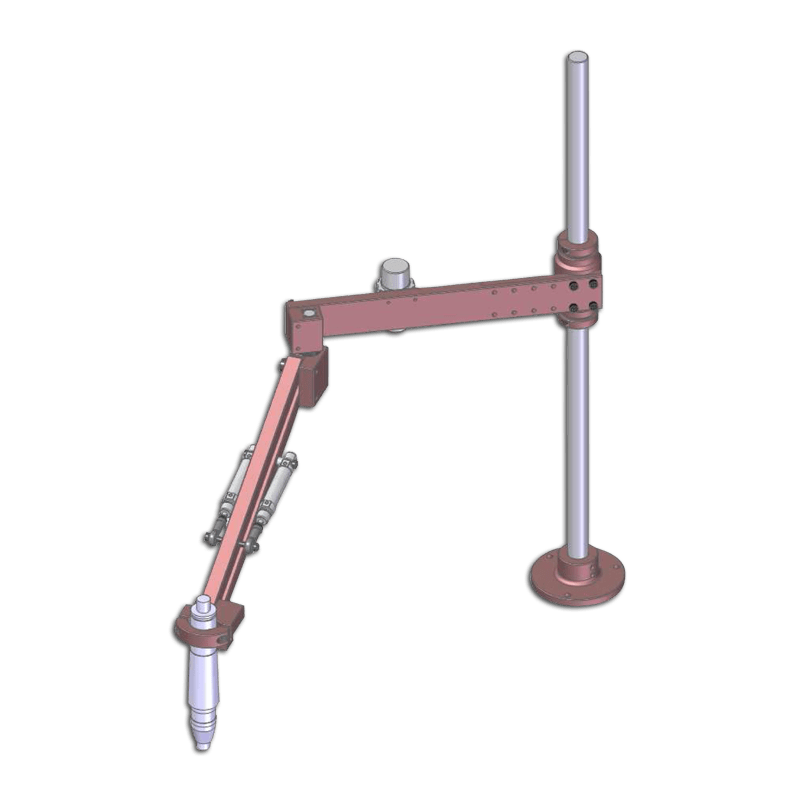

BA 30 G articulated torque reaction arm
Code 4-5201015
BA 30 G articulated torque reaction arm
Code 4-5201015
Designed to be easily installed on your worktops, the articulated geometry of the BA 30 G torque reaction arm gives you both optimized work coverage and high working flexibility thanks to its downward assistance kit. Compatible with straight, pistol and angle drivers, you enjoy great versatility of use.
Technical details
Max torque
30 Nm lbf.in
Max load
2 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
670 mm inch
Vertical stroke
220 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Straight
Benefits
Comfort
- No movement inertia thanks to articulated geometry
- Easy and precise insertion of the screw thanks to the pneumatic cylinder
- Suppression of MSD
- Balanced tool
- Zero gravity
Productivity
- Increased operator speed thanks to the flexibility of the downward kit and the articulated geometry
Resources
3Plan
map
1Commercial documentation
marketing
Catalog torque reaction systems and posi-control systems - DOC.60163
The widest range of reaction arms to meet your various demanding requirements.
-
Linear reaction arms BA Series
-
Travelling arms BA...C Series
-
Articulated arms BA...R Series
-
Articulated and air balanced pantograph
-
arm BA...G Serie
-
Telescoping arms DMF/DMFI Series
-
Special solutions
-
Suspended arms SLIDER Series
2Technical documentation
technical
User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351
- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes
