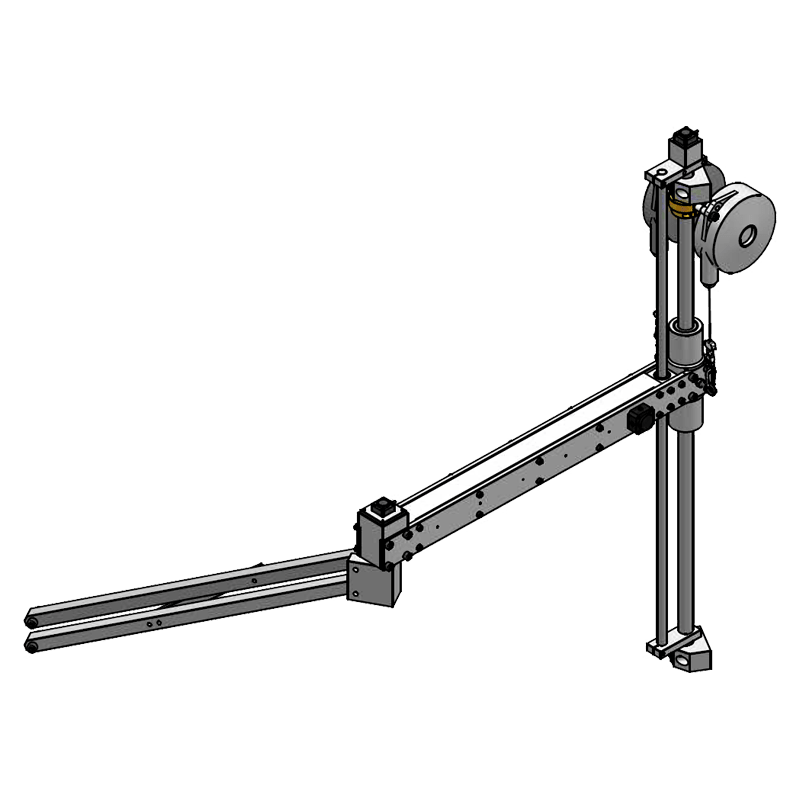

BA 180 RPC/1500 posi control articulated torque reaction arm

Code 4-5200016

BA 180 RPC/1500 posi control articulated torque reaction arm

Code 4-5200016

Designed to be easily installed on your worktops, the articulated geometry of the BA 180 RPC/1500 gives you both optimized work coverage and high working flexibility without movement inertia. As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Max torque

180 Nm lbf.in

Max load

4 kg lbs

Installation

Bench mount

Functionalities

Tool positioning system

Stroke/Working radius

1500 mm inch

Standard tool holder

Optional

Benefits

Quality of assembly

Respect of programmed tightening sequences and torques
Detection of screw oversights and malfunctions
No defects
Guaranteed perpendicularity of tightening

Comfort

No movement inertia
Easy screw insertion thanks to articulated geometry
Suppression of MSD
Balanced tool

Versatility

Compatible with straight, pistol and angle drivers with a wide range of pliers

Product description

The articulated geometry of the BA 180 RPC/1500 torque reaction arm offers many advantages.
With an improved minimum operating radius, neutral movement inertia and easy insertion, it is ideal for tightening operations at reduced distances.
It is compatible with straight, pistol and angle drivers.
You enjoy a great versatility of performance.
Its design also guarantees excellent perpendicularity of tightening, a perfectly balanced tool and suppression of MSD.
As it is equipped with two X and Y absolute position encoders, your operators necessarily respect the programmed tightening sequences and torques.
Each screw is in the right place and tightened to the right torque. No defects.
