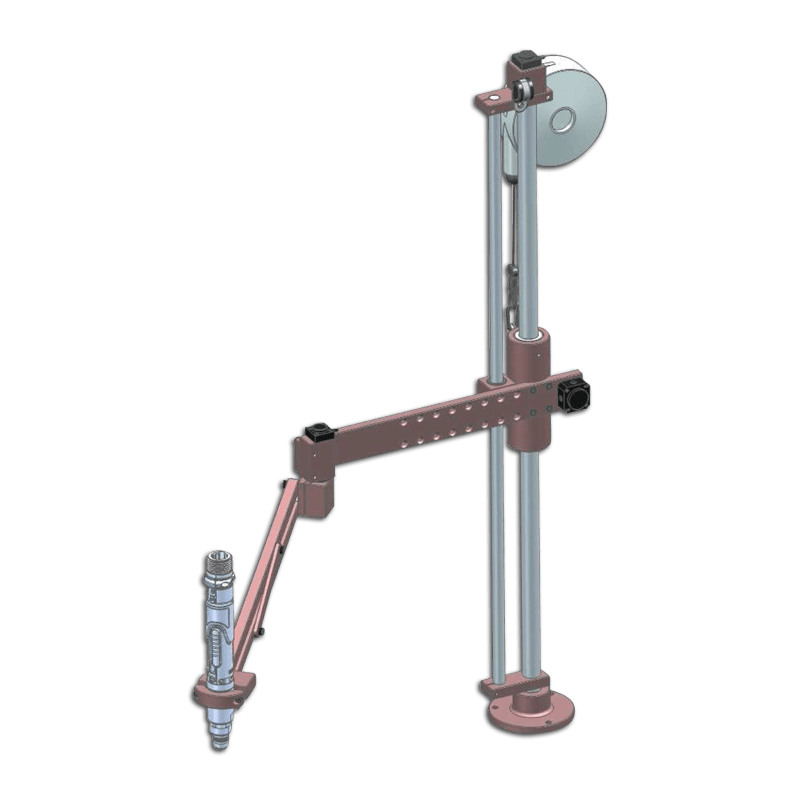

BA 40 RPC/800 posi control articulated torque reaction arm

Code 4-5200476

BA 40 RPC/800 posi control articulated torque reaction arm

Code 4-5200476

Designed to be easily installed on your worktops, the articulated geometry of the 40 RPC/800 gives you both optimized work coverage and high working flexibility without movement inertia. As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.

Technical details
Benefits
Product description
Videos
Associated products
Resources

Technical details

Max torque

40 Nm lbf.in

Max load

3 kg lbs

Installation

Bench mount

Functionalities

Tool positioning system

Stroke/Working radius

800 mm inch

Vertical stroke

410 mm inch

Mini tool diameter

28 mm inch

Maxi tool diameter

52 mm inch

Standard tool holder

Straight

Benefits

Quality of assembly

Respect of programmed tightening sequences and torques
Detection of screw oversights and malfunctions
No defects
Guaranteed perpendicularity of tightening

Comfort

No movement inertia
Easy screw insertion thanks to articulated geometry
Suppression of MSD
Balanced tool

Versatility

Compatible with straight, pistol and angle drivers with a wide range of pliers

Product description

The articulated geometry of the BA 40 RPC/800 torque reaction arm offers many advantages.
With an improved minimum operating radius, neutral movement inertia and easy insertion, it is ideal for tightening operations at reduced distances.
It is compatible with straight, pistol and angle drivers.
You enjoy a great versatility of performance.
Its design also guarantees excellent perpendicularity of tightening, a perfectly balanced tool and suppression of MSD.
As it is equipped with two X and Y absolute position encoders, your operators necessarily respect the programmed tightening sequences and torques.
Each screw is in the right place and tightened to the right torque. No defects.
