BA 100 linear torque reaction arm
Code 4-5200068
BA 100 linear torque reaction arm
Code 4-5200068

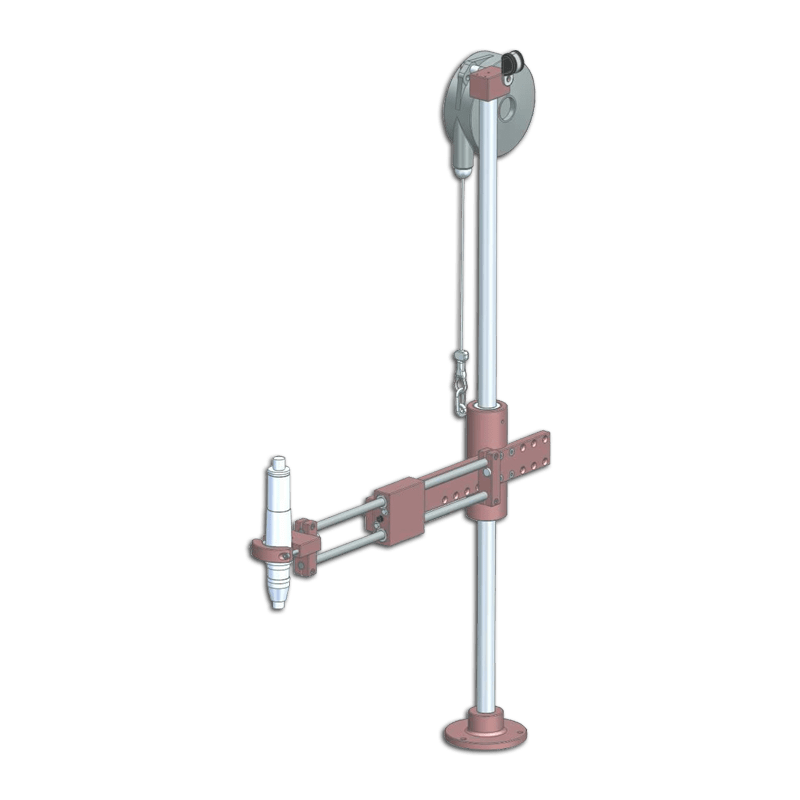

Designed to be easily installed on your worktops, the BA 100 linear arm is compact, robust and versatile thanks to the many options available. It guarantees perfect torque recovery, a balanced tool and optimized perpendicularity of tightening.
Technical details
Max torque
100 Nm lbf.in
Max load
3 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
845 mm inch
Vertical stroke
465 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Straight
Benefits
Comfort
- Suppression of MSD
- Balanced tool
- Flexible operation thanks to ball bushings
Assembly quality
- Guaranteed perpendicularity of tightening
Productivity
Guidance of operating movements
Product description
BA linear arms prevent operator MSD for up to 100 Nm.
They are ideal for vertical tightening operations.
Their design guarantees an excellent perpendicularity of tightening, a high working flexibility thanks to the ball bushings and a perfectly balanced tool.
Their use on workstations increases productivity, operators’ comfort and greatly reduces the costs of absenteeism related to MSD.
