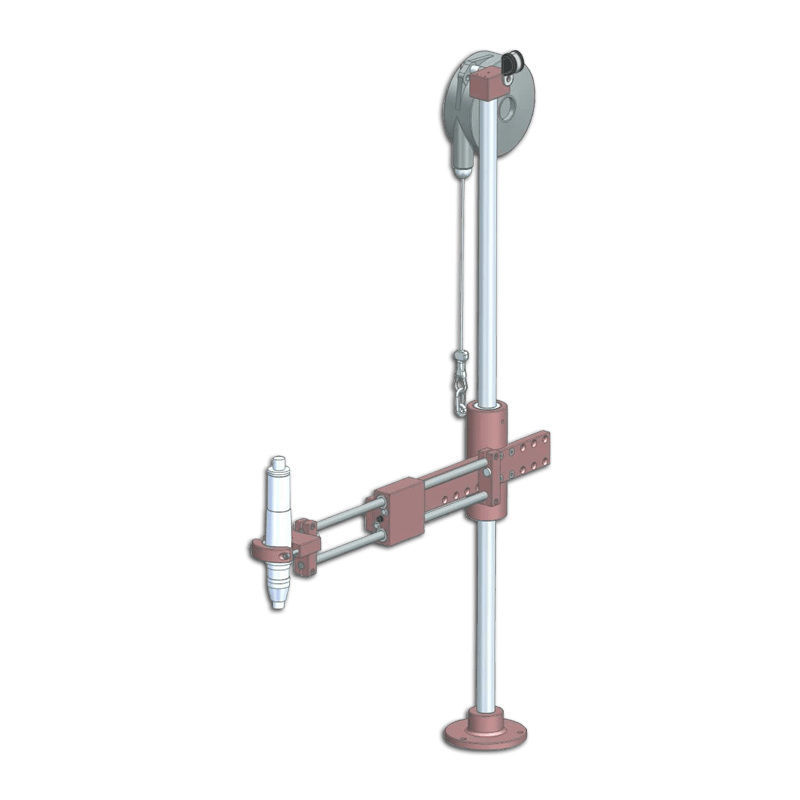

BA 12 linear torque reaction arm
Code 4-5201000
BA 12 linear torque reaction arm
Code 4-5201000
Designed to be easily installed on your worktops, the BA12 linear arm is compact, robust and versatile thanks to the many options available. It guarantees perfect torque recovery, a balanced tool and optimized perpendicularity of tightening.
Technical details
Max torque
12 Nm
Max load
1.2 kg
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
536 mm
Vertical stroke
380 mm
Mini tool diameter
25 mm
Maxi tool diameter
50 mm
Standard tool holder
Straight
Benefits
Comfort
- Suppression of MSD
- Balanced tool
- Flexible operation thanks to ball bushings
Assembly quality
- Guaranteed perpendicularity of tightening
Productivity
- Guidance of operating movements
Product description
BA linear arms prevent operator MSD for up to 100 Nm.
They are ideal for vertical tightening operations.
Their design guarantees an excellent perpendicularity of tightening, a high working flexibility thanks to the ball bushings and a perfectly balanced tool.
Their use on workstations increases productivity, operators’ comfort and greatly reduces the costs of absenteeism related to MSD.
