MDA 2203-E+C mini current control electric fixtured spindle
MDA 2203-E+C mini current control electric fixtured spindle

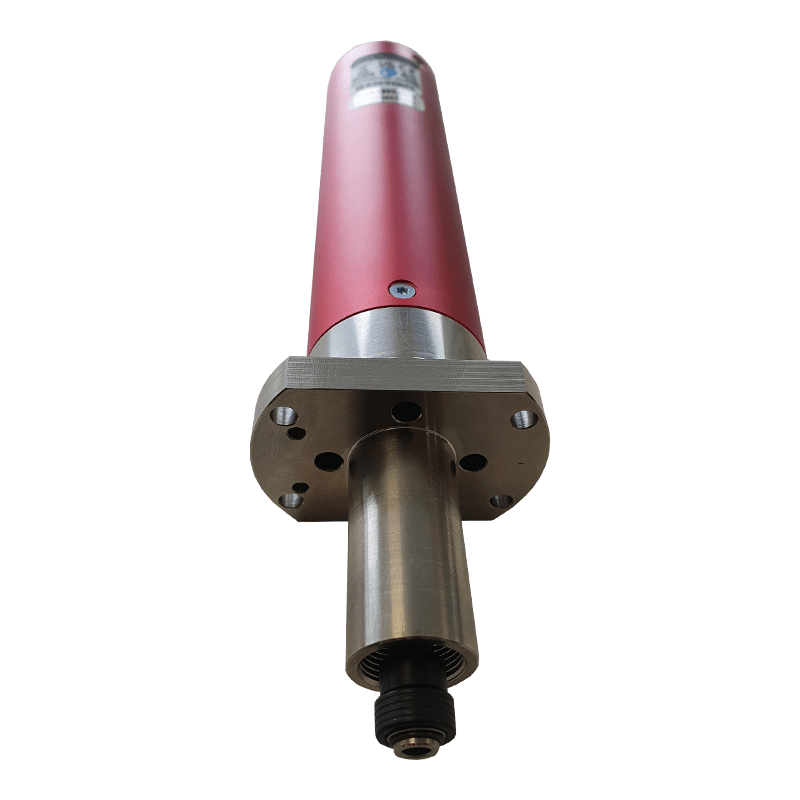

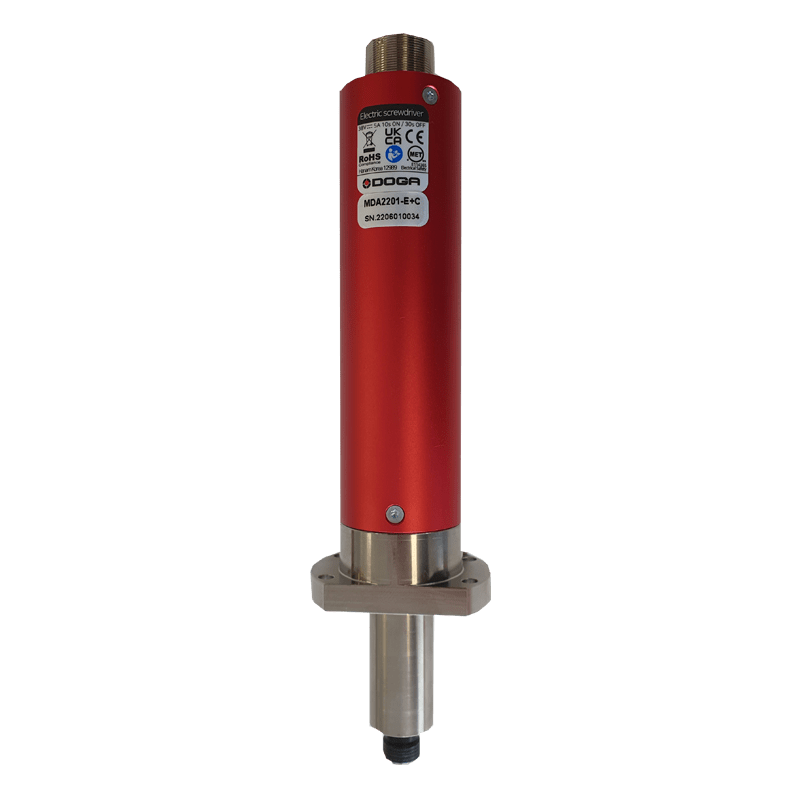

Compact and easy to integrate, the MDA2203-E mini telescopic spindle is designed for microtorque tightening operations (from 0.04 to 0.196 Nm) requiring repeatability (3%) and traceability of tightening torques. It is dedicated to applications in the fields of watchmaking, eyewear, microelectronics, luxury leather goods, dental prosthesis, etc.
Technical details
Benefits
- 3% precision regardless of tightening elasticity
- Maxxon Motor made in Switzerland
- Flange mounting and aluminum body
- Traceability of tightening torques via Ethernet
- Visualization of the curves
- Anti-error system
Product description
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
The telescopic stroke is 10 mm.
It is delivered without a tool cable.
Associated products
MDC controllers
ParaMon-Pro X controller
- Real-time monitoring: display graphs and results
BS-5C color ID bit tray
DPC Touch: sequencing and process monitoring interface
Air vacuum system & sleeves
By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
