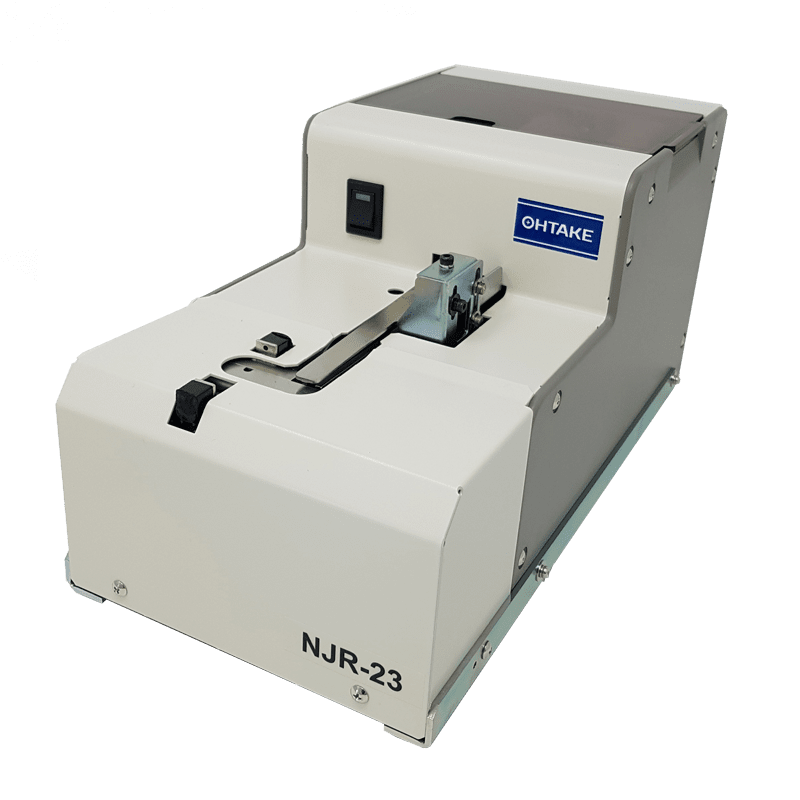

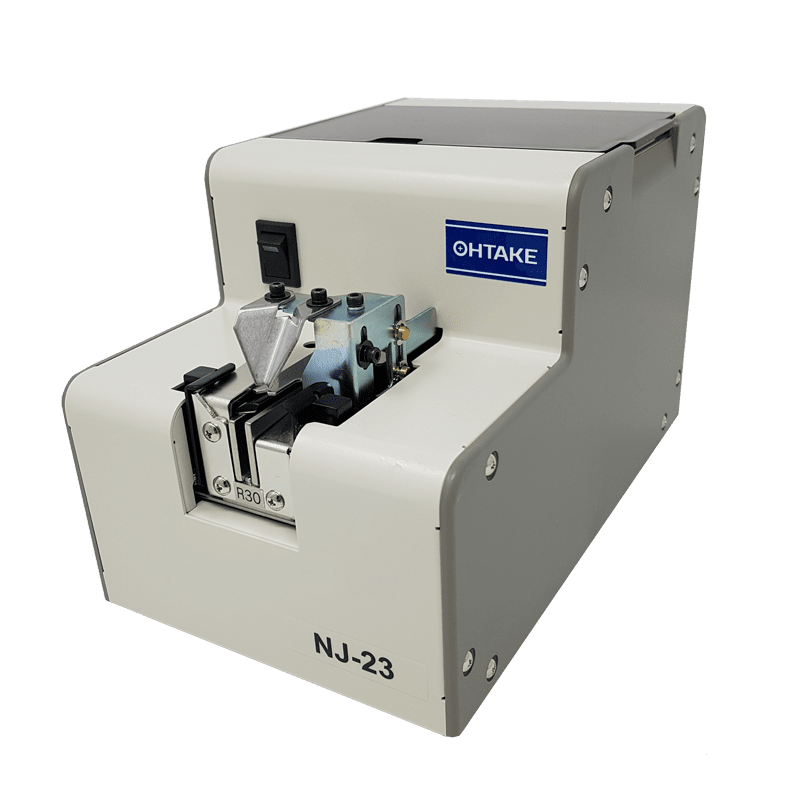

Semi-automatic screw feeder with fixed rail / screw feeder with interchangeable rails

Semi-automatic screw feeder with fixed rail / screw feeder with interchangeable rails

The semi-automatic screw dispensing bowls are standard, very compact and extremely simple to implement for almost immediate use. Each screw is oriented one by one to be drawn up or magnetized by the screwdriver.

Contact us

Benefits

Compactness
  • Easy integration in workstations thanks to their small size and light weight
Simplicity
  • Operational in minutes
  • Implementation requiring very few adjustments
Economy
  • Inexpensive to buy
  • Economic in use as interchangeable rail models can dispense multiple screw diameters depending on the rail used (available as spare parts)
Security
  •  Minimized risk of losing a screw in the workpiece because the screws are presented one by one and held at the end of the screwdriver by magnetization or suction
  • No more lost screws at the workstation which stays clean

Product description

The dispensing bowls are standard devices to be placed at the workstation in which screws of the same type are sorted by vibration and micro-scanning before being presented one by one by gravity at the end of a rail.
Depending on the gripping method chosen for the screw, magnetization or suction, and depending on the type of application, either manual or robotic, the bowl will guide the screwdriver bit to the screw head or present it in an open space.
